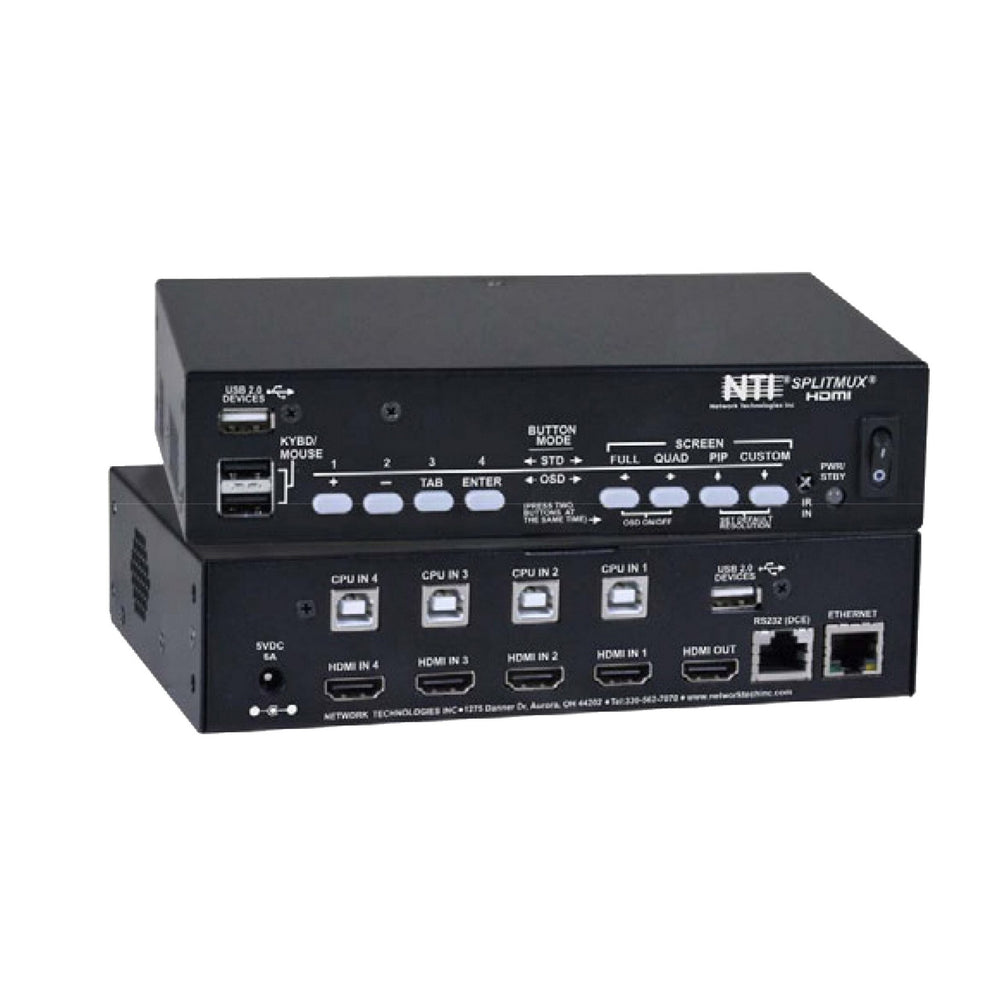

NTI SPLITMUX-USBHD-4RT HDMI Quad Screen Multiviewer with Built-In KVM Switch Desktop

NTI SPLITMUX-USBHD-4RT HDMI Quad Screen Multiviewer with Built-In KVM Switch Desktop

The SPLITMUX HDMI Quad Screen Multiviewer with Built-in USB KVM Switch allows you to simultaneously display video from four different computers on a single monitor. Additionally, it can switch one of the four attached computers to a shared keyboard and mouse for operation and to two additional USB devices. It is capable of displaying the video sources in quad, PiP, full, or custom mode. In custom display mode, each of the quadrants can be adjusted to any size and positioned to any location on the display.

Key Features

• Quad, Picture in Picture, Full Screen, and Custom display modes.
• Custom Display Mode: the size, position and selection of any or all windows are customizable.
• 2- and 3-source viewing is possible with this method.
• Maintain input aspect ratio if desired-no stretching necessary.
• Switch one of the four attached computers to a shared USB keyboard and mouse for operation.
• Supports 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.
• HDCP compliant.
• Fluid, real-time video performance with up to 60 frames per second (fps) in all four quadrants.
• Zoom, pan, and crop the image from any source to focus on key areas.
• Switch audio independently of video from connected HDMI sources.
• A customized text label can be added for each video window to provide easy input identification (UMD).
• Control the multiviewer through Ethernet, RS232 serial port, keyboard commands, on screen display (OSD), front panel buttons, or IR remote.
• Built-in 2-port USB hub - switch devices between connected computers.
• Compliant with USB 2.0 (high-speed and low/full speed) standards.
• Cascade multiviewers to display video from any number of video sources on one screen.
• Backup and restore multiviewer configurations.
• Supported output resolutions can be selected or set to auto detect optimal resolution from the monitor’s EDID.

Technical Specifications

Hosts
Four female HDMI connectors.
Four female USB Type B connectors.
Supports USB computers: Boots PCs, SUNs, and MACs simultaneously.
Supported video input resolutions: 2K Cinema (2048x1080 @ 60Hz), HDTV resolutions to 1080p, Computer resolutions to 1920x1200.
Supports HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
A DVI source can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the multiviewer.
Use a video + audio to HDMI video converter to pass embedded HDMI audio into the multiviewer (see Compatible NTI Products below).
Monitor
One female HDMI connector.
Supported video output resolutions:
2K Cinema (2048x1080 @ 60Hz)
HDTV resolutions to 1080p
Computer resolutions to 1920x1200
HDMI-embedded audio switching (four-channel stereo, non-mixing or one channel stereo, mixing).
Switch audio independently of video from connected HDMI sources.
Multiple audio sources can be simultaneously active in any display mode or preset layout.
A DVI display can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the display.
Use a video + audio to HDMI video converter to pass embedded HDMI audio into the multiviewer (see Compatible NTI Products below).
Devices
Two female USB Type A connectors for keyboard and mouse.
Keyboard and mouse are hot-pluggable.
Two female USB Type A connectors for USB peripheral devices (printers, scanners, security cameras, flash drives, etc.)
Connect any type of USB device - fully transparent USB connectors.
Switch USB 2.0 devices between connected computers.
In Full Screen mode, USB touch screen monitors can be used to control the connected active computer.
Provides support for high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
Protocols
HTTP, HTTPS
TCP/IP, DHCP, UDP, ARP
IPV4
Power/Dimensions
Power
110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
Power consumption
20W
Dimensions WxDxH (in)
7.35x4.98x1.75 (187x126x45 mm)
Environmental
Operating temperature
32F to 122F (0C to 50C).
Storage temperature
-22F to 140F (-30C to 60C).
Operating and storage relative humidity
17 to 90% non-condensing RH.
Regulatory Approval
CE, RoHS
TAA compliant
Compatible NTI Products
Combine NTI’s video converters and splitters for multiple video sources and display signals
DVI-D to HDMI Single Link Interface Cable (DVI-HD-xx-MM). The cable does not pass audio to the multiviewer.
DVI + Stereo Audio to HDMI Converter (DVIA-HD-CNVTR-LC)
DVI + Digital Audio to HDMI Converter (DVI-HD-CNVTR)
Composite Video + Audio to HDMI Converter (CVA-HD-LC)
VGA + Audio to HDMI Converter Cable (VGAA-HD-ULC)
VGA/Component Video/HDMI Scaler/Converter (PCHD-HDMI-SCALER)
Item Includes
Multiviewer
1x - power adapter
1x - DB9 female to RJ45 female adapter
1x - 5ft CAT5e super flat cable
1x - IR remote control
Manual
