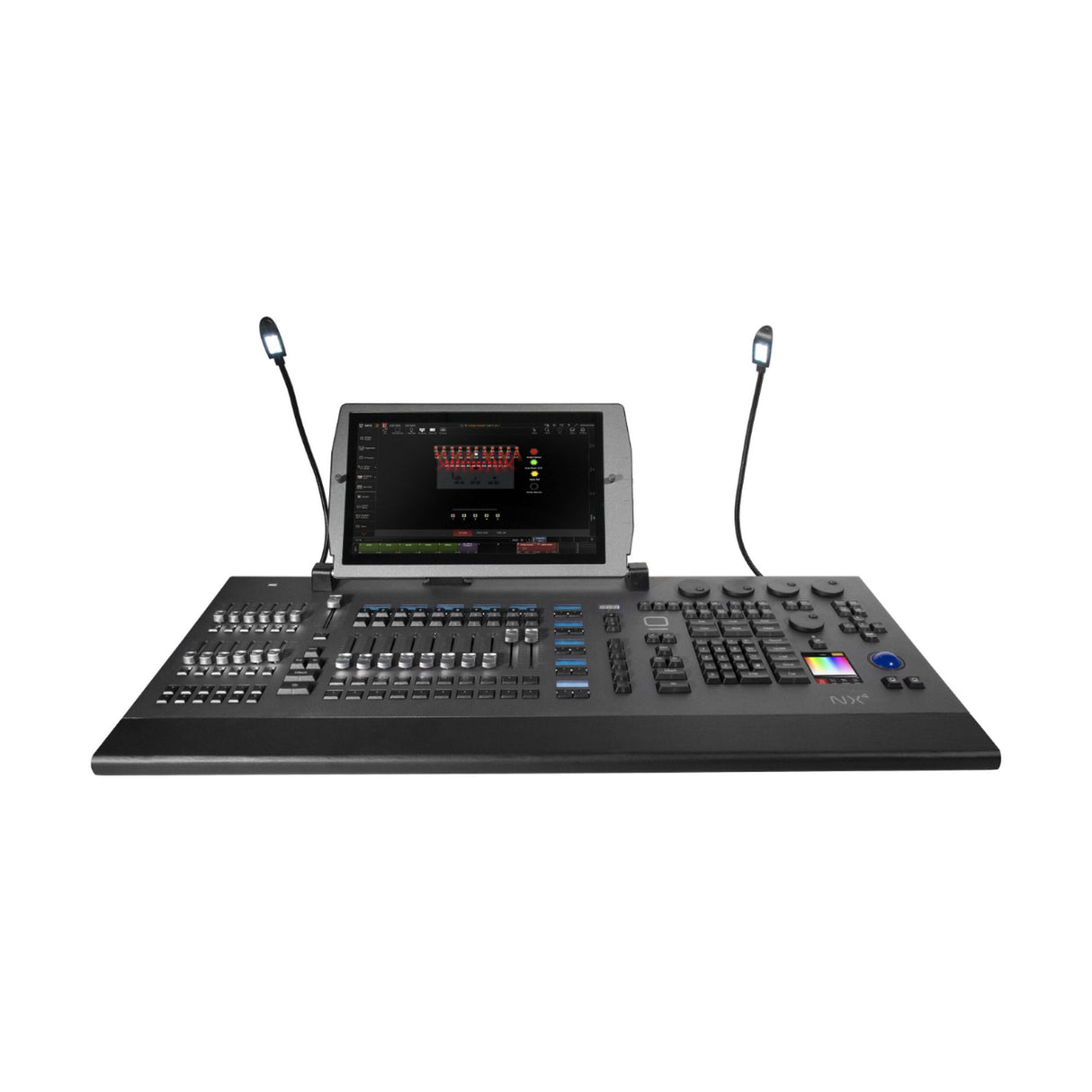

Obsidian Control NX4 64 Universe 1080p Touch Screen Control Surface

Obsidian Control NX4 64 Universe 1080p Touch Screen Control Surface

The NX 4 is a comprehensive feature packed control surface. With a well-arranged combination of motorized and manual faders as well as an array of playback button the NX4 offers 44 total playbacks in a compact yet extremely powerful package. As a member of the innovative ONYX platform from Obsidian Control Systems the NX 4 is feature rich and never restricted in its capabilities. NX 4 includes a high brightness Full HD multi touch screen, 8 assignable parameter encoders, dedicated Intensity encoder, an assistive mini touch screen, full keypad and command section and a dedicated grand master.

Key Features

• Adjustable 15.6” Full HD multi touch screen, 2x external 4K Touch Displays
• 44 playbacks (10 Motorized, 12 Sub, 22 Playback Executors)
• 9 Encoders, Keypad, Trackball, 12 Function keys, assistive 3.5” touchscreen
• 64 Universe integrated processing, 4 DMX ports onboard
• Network, DMX, Timecode and Midi Connectivity

Technical Specifications

Physical Dimensions
Length
431 mm (16.9 in.)
Width
928 mm (36.5 in.)
Height
149mm (5.8 in.)
Weight
16.4 kg (36.1 lbs.)
Electrical Specifications
100-240 V nominal, 50/60 Hz, 140W
