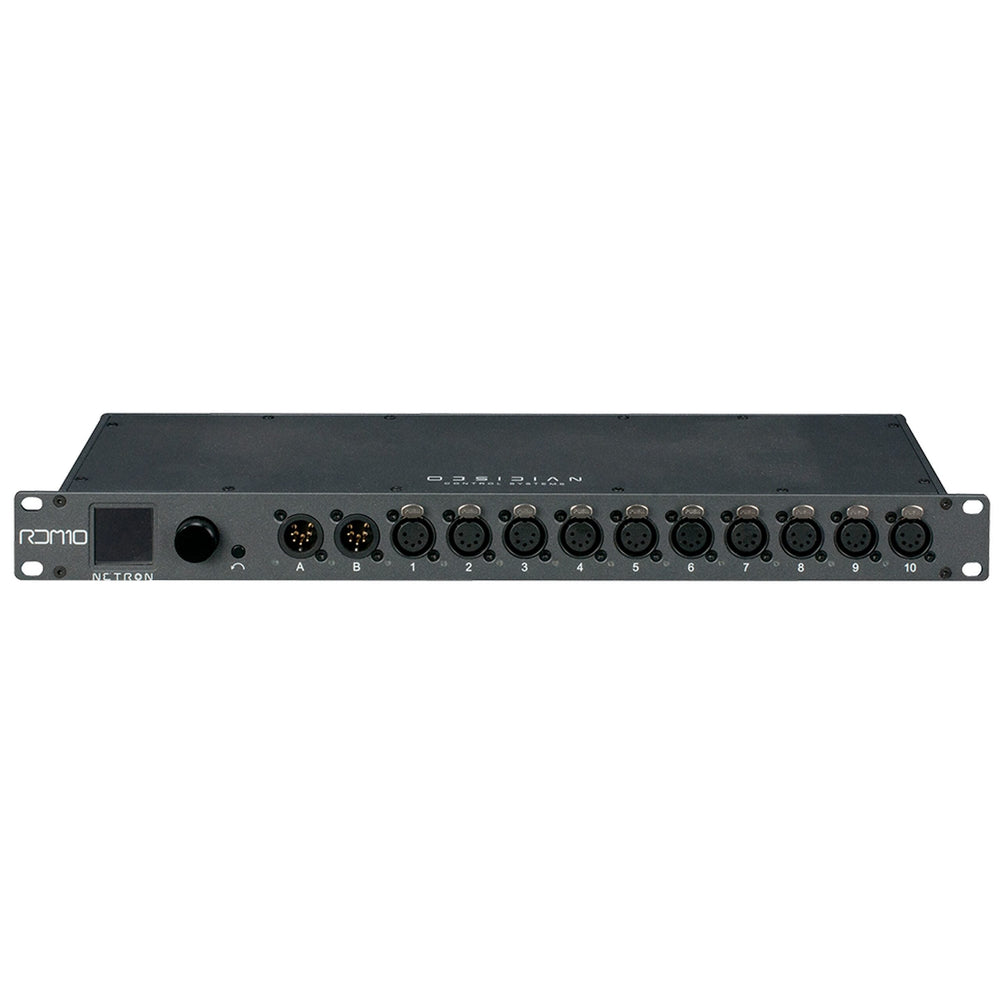

The Netron RDM 10AB is a universal dual input RDM splitter with an advanced feature set to cover a wide variety of applications. Its combination of a high density ten-port AB splitter with a two port EtherDMX node, DMX cue recording plus contact closures for preset and cue recall make this a truly universal tool for installations and production environments.

Key Features

• 10 assignable DMX outputs
• Integrated 2 Universe Artnet/sACN node
• Configurable DMX refresh rate
• Dual DMX Inputs for backup and signal loss options
• Remote configuration via internal webpage
• 1.8” OLED Display with rotary knob
• 99 Internal cues with fade and delay time
• Contact closures for cue or preset recall
• Powder-coated aluminum rackmount housing

Technical Specifications

Physical
Length
482.5 mm (19 in.)
Width
161 mm {6.3 in.)
Height
44 mm (1.7 in.)
Weight
1.54 kg (3.4lbs)
