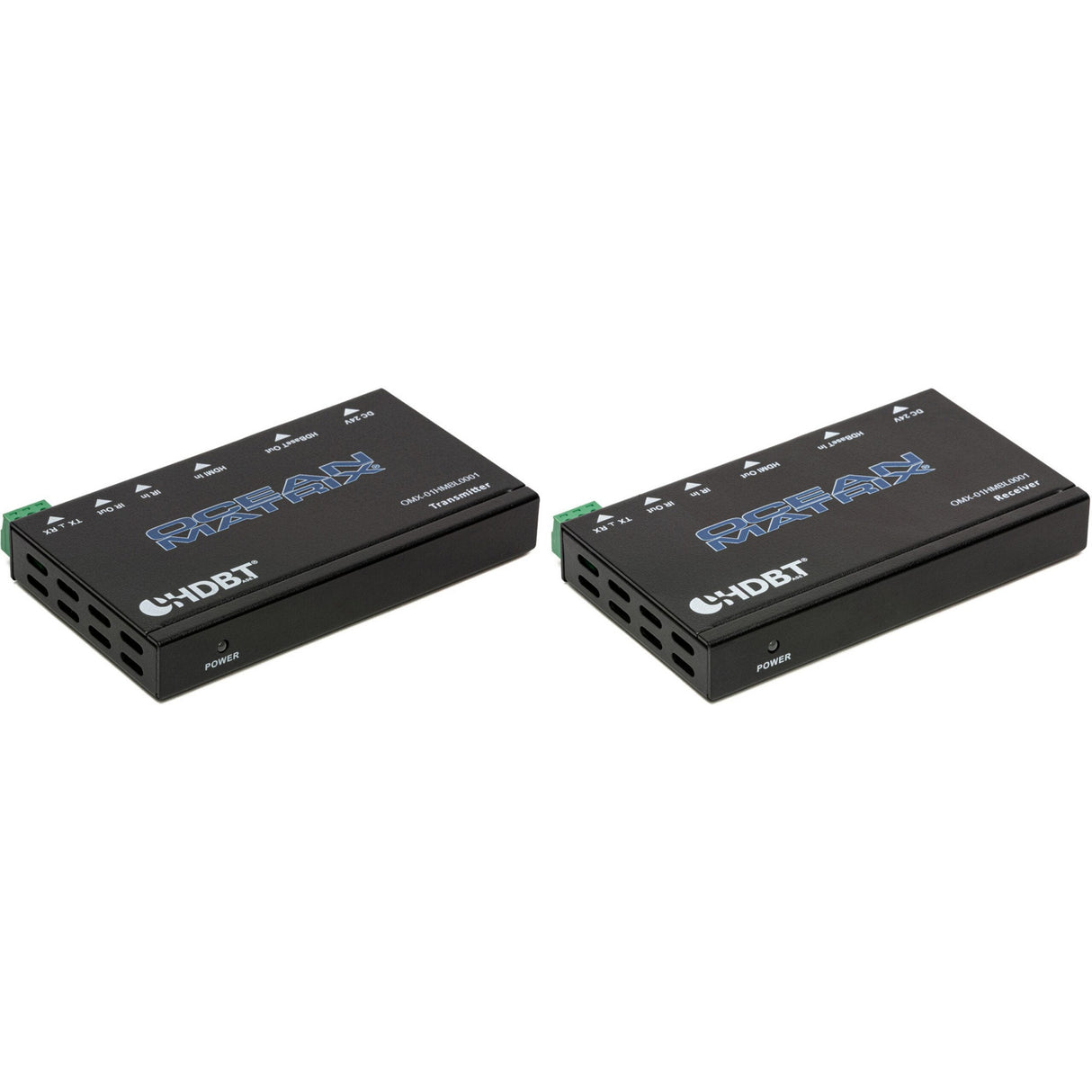

Ocean Matrix 01HMBL0001 HDBaseT 4K HDMI Extender Set with Two-Way IR

Ocean Matrix 01HMBL0001 HDBaseT 4K HDMI Extender Set with Two-Way IR

The Ocean Matrix 01HMBL0001 extends uncompressed HDMI signals via HDBaseT over ethernet cables up to 230 feet. The system takes advantage of simple plug and play functionality while supporting resolutions at 4K2K@60Hz (4:2:0), 4K2K@30Hz, 1080P@120Hz and 1080P 3D@60Hz. It also Supports up to 7.1 channels of High-Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio).

The system delivers bidirectional PoC (power over Cable) flexibility reducing the need for additional power runs to either the transmitter or receiver. The compact design of the transmitters and receivers, along with PoC, make the Ocean Matrix 01HMBL0001 ideal for installations in digital signage and campus-based systems.

Key Features

• HDBaseT Lite over a single CAT5e/6 cable
• Extends RS-232 & Two-Way IR signals
• LPCM, Dolby TrueHD, and DTS-HD Master Audio
• Video Resolutions up to 4K2K@30Hz (4:2:0)
• Two-Way PoC for either transmitter or receiver
• Transmission Distance: 1080P Up to 230 ft, 4K up to 131 ft over CAT6
• Rugged Black Powder-Coated Metal Enclosure
• CE, FCC Certified

Technical Specifications

Compliance
HDMI 2.0a, HDCP2.2
Video Bandwidth
10.2 Gbps
Video Resolutions
up to 4K2K@60Hz (4:2:0),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
10-bit, 12-bit, 16-bit
Audio Formats
PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Inputs
TX- 1-HDMI Type A, 1 -3.5mm Stereo Mini-Jack, 1-RS232 / RX - 1-RJ45, 1-3.5mm Stereo Mini-Jack
Outputs
TX - 1-RJ45, 1-3.5mm Stereo Mini-Jack / RX - 1-HDMI Type A, 1-3.5mm Stereo Mini-Jack, 1-RS232
Power Consumption
12W
Power Supply
Input: AC100 - 240V 50/60Hz / Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Dimensions
4.5 x 2.6 x .675 in
Weight
TX 7.1 oz / RX 7.1 oz
