Ocean Matrix 01HMET0003 4K HDMI 2.0 Over Single CAT6/6a/7 Extender Set

Ocean Matrix 01HMET0003 4K HDMI 2.0 Over Single CAT6/6a/7 Extender Set

Ocean Matrix, the worldwide leader in HDMI extender technology, delivers its latest addition to the lineup with the 01HMET0003 18Gb 4K extender and an ability to reach up to 197 feet of coverage for all your digital signage and extension needs.

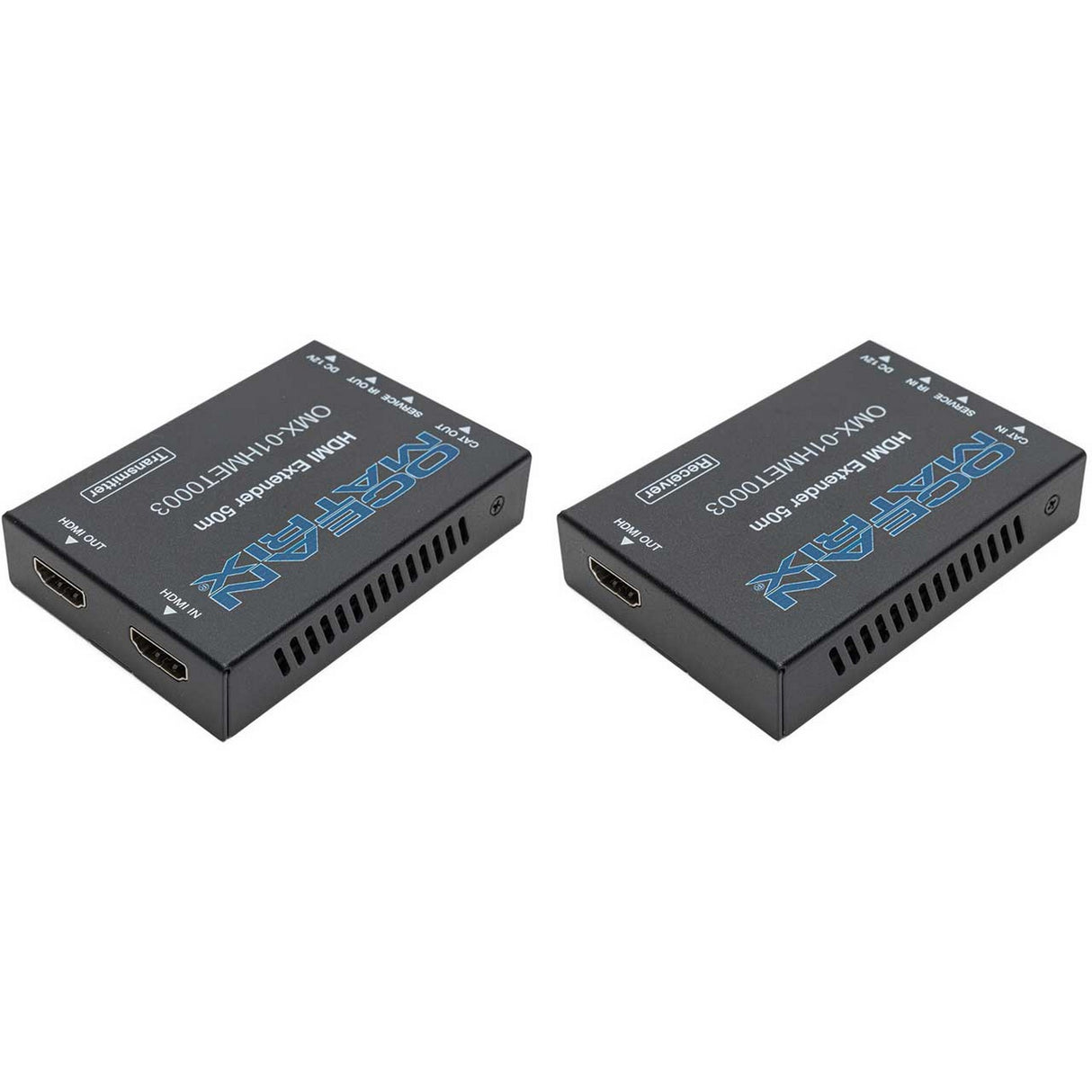

The system sends 4K2K@60Hz 4:4:4 HDMI signals up to 197 feet over Cat6/6a/7 cable and up to 164 feet over Cat5e. The Ocean Matrix It is fully compatible with HDCP 2.2 and offers one way IR control for source devices. It also has an HDMI Looping output on the transmitter and EDID at the receiver to ensure display compatibility. The package includes both a transmitter and receiver.

Key Features

• HDMI 2.0 Audio/Video over a Single CAT6 Cable

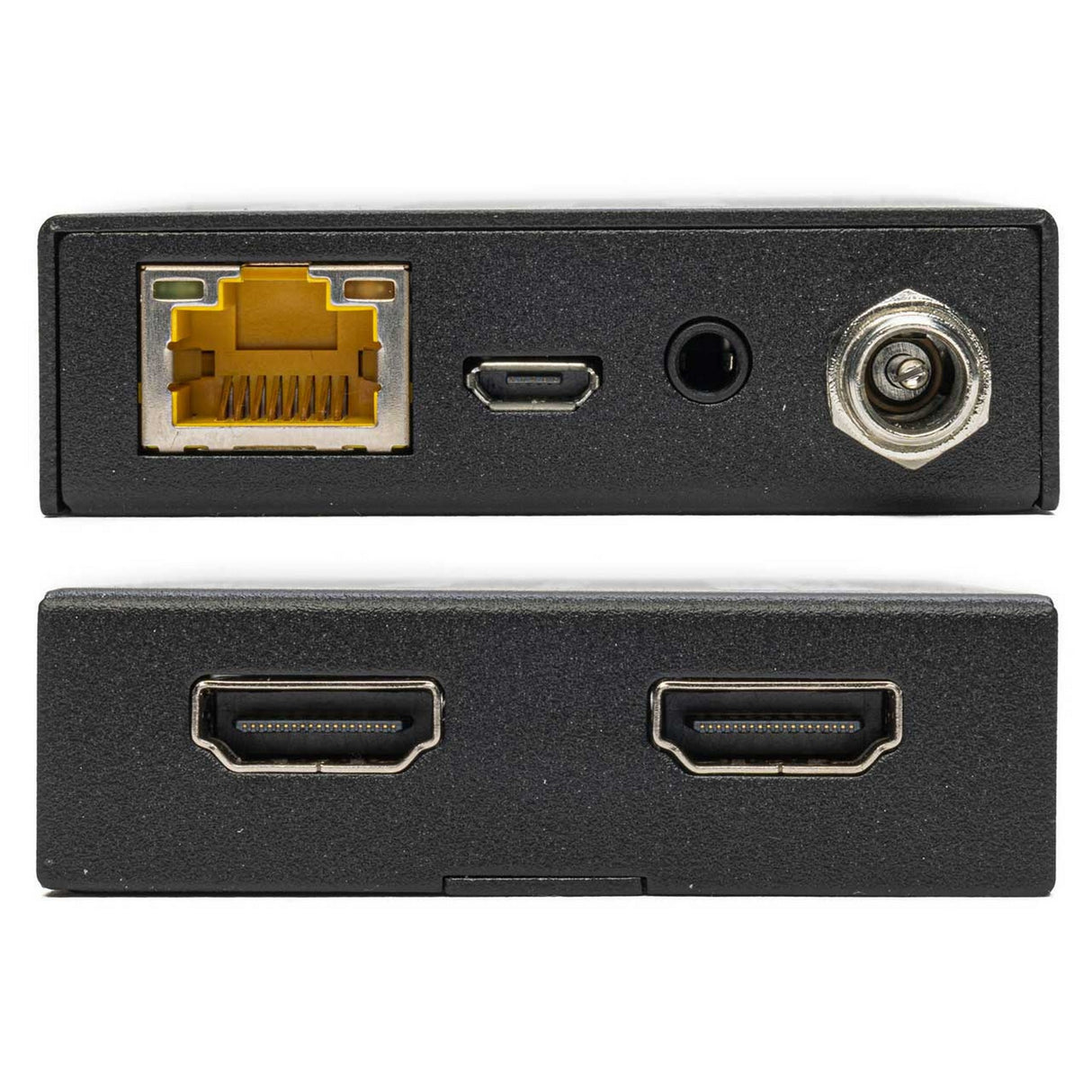

• HDMI Loop Out on Transmitter
• Transmission Distance: 4K60Hz Cat 6/6a/7 up to 197 feet (60m), Cat 5e 164 feet (50m) / 4K30Hz/1080p Cat 6/6a/7 230 feet (70m), CAT5e up to 164 feet (50m)
• Bi-Directional Power over Cable (PoC)
• One Way IR Pass Through

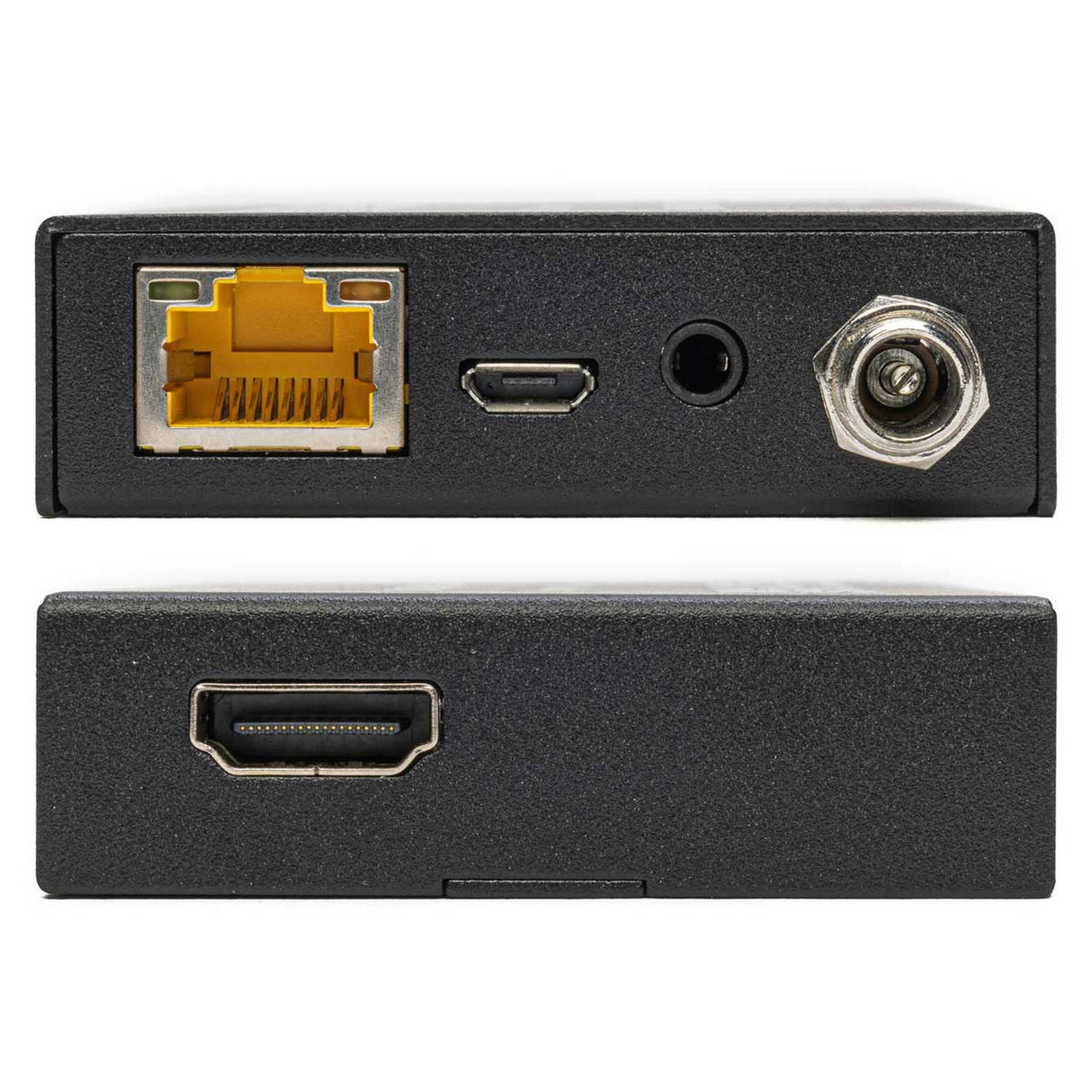

• Supports EDID from Receiver Display
• Rugged Black Metal Enclosure
• CE, RoHS Certified

Technical Specifications

Compliance
HDMI 2.0, HDCP 2.2/1.4, DVI 1.0
Video Bandwidth
18 Gbps
Video Resolutions
up to 4K2k60 Hz 4:4:4
HDR Support
Color Space
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 /4:2:0, YUV 4:4:4
Color Depth
8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0), 8-bit (4K60Hz 4:4:4)
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS-ES, DTS HD Master, DTS HD-HRA, DTS:X
Power Consumption
3.84W
Dimensions WxDxH (TX / RX)
2.36 x 3.50 x 0.71 in/ 61 x 88 x18mm
Weight
TX 5.64oz, RX 5.47oz / TX 160g, RX 150g
Item Includes

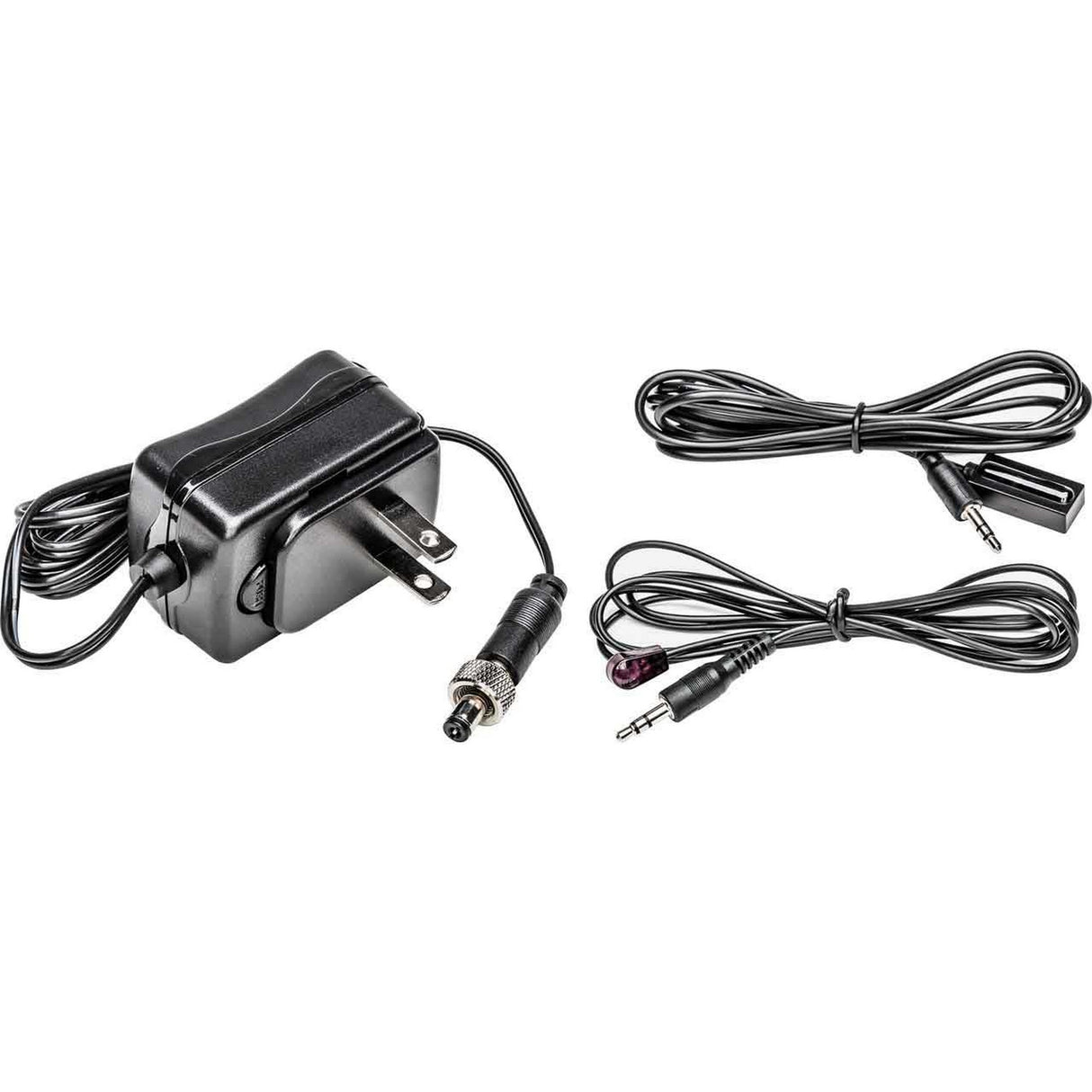

12V/1A Locking Power Adapter, 1- IR Blaster Cable, 1-IR Receiver Cable
Warranty
1 Year Warranty
