Ocean Matrix  |  SKU: OCE-OMX01HMHM0001

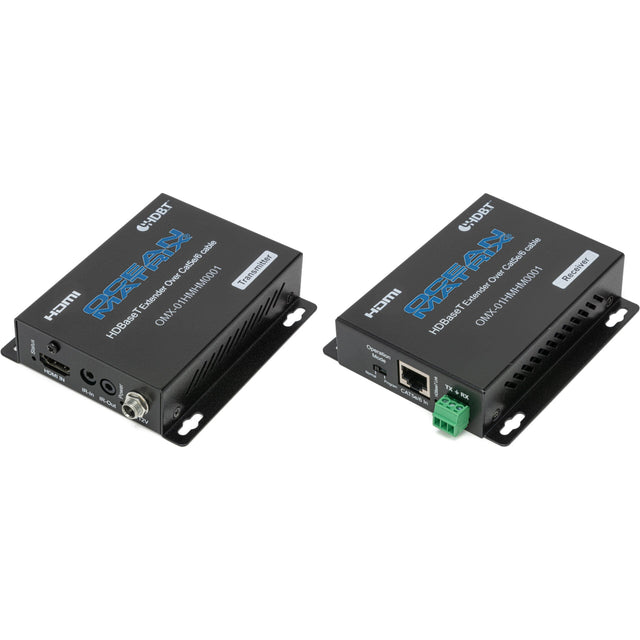

Ocean Matrix 01HMHM0001 HDBaseT 4K HDMI Extender Set with Two-Way IR

$22995
🚚 Order within the next 2 hours, 15 minutes for delivery by 13 May, 2024.

Condition: New

Description

Ocean Matrix 01HMHM0001 HDBaseT 4K HDMI Extender Set with Two-Way IR

For a cost effective 4K HDMI over HDBaseT extension system that doesn't compromise on quality, specify the Ocean Matrix 01HMHM0001 in your next digital signage project. It handles 4K@30Hz signal transmission up to 130 feet and passes 1080p HD signals up to 230 feet both by way of a single Ethernet CAT5e/CAT6 cable.

The 01HMHM0001 makes installations a breeze as It'supports PoC (Power Over Cable) avoiding the need for a power supply at the receive-end of your system. The system also delivers multiple control options including 2-way IR Remote Control for cable boxes, signage players or Blu-ray players and Serial RS232 Control for touchscreen and scanner devices. The system also offers full audio support for DTS-HD and Dolby-HD. It is HDCP2.2/1.4 compliant and has convenient surface mount ears.

The CEC Pass-Through feature allows the remote commands to "pass-through" to other devices to control other HDMI compatible devices such as cable boxes and speakers. You can use your other device's remote control as well. This can be very handy in restaurants & bars or digital signage setups. It also offers routing control to handle things like input source selection.

Key Features

  • Extends Two-Way IR Signals
  • RS232 Control Signal Transmission
  • Full HD support: 1080p@60Hz@48b/pixels, 4K@30Hz and 3D
  • Supports CEC Bypass
  • Transmission Distance: 1080P Up to 230 Feet, 4K up to 131 Feet
  • 12V PoC
  • Rugged Black Powder-Coated Metal Enclosure
  • CE, FCC Certified

Technical Specifications

Compliance
HDMI 2.0, HDCP2.2, HDCP 1.4
Video Formats
DTV/HDTV; 4K/1080P/1080i/720P/576P/480P/576i/480i & 3D
Input Video Signal
0.5-1.0 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Video Bandwidth
10.2 Gbps
Output Audio Support
DTS-HD, Dolby-HD
Power Consumption
TX 2.5W, RX 5W
Dimensions (HxWxD)
4.1 x 2.8 x 1.0 in
Weight
TX 9.4 oz / RX 9.3 oz
Item Includes
2-IR blasters with mounting pads, 2-RS232 connectors, 1-12V/2 A power supply
Warranty
1-Year Warranty
