Ocean Matrix 12GSDI-1X6 12G SDI Relocking 1x6 Distribution Amplifier

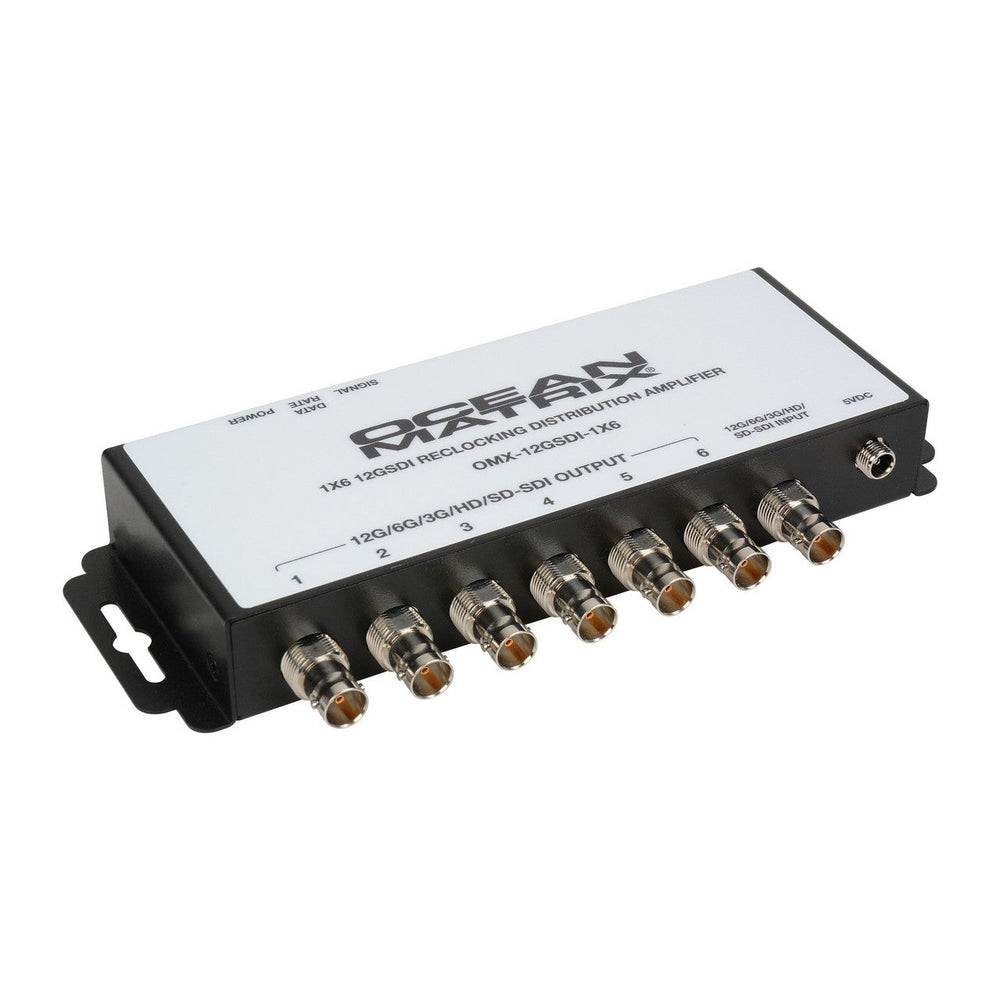

The Ocean Matrix OMX-12GSDI-1X6 is a low cost, stand-alone 1x6 reclocking distribution amplifier for signals up to 12G-SDI UHD. Input any signal, whether it's SDI, 3G-SDI or even 12G-SDI, and feed six pristine reclocked outputs to devices across your facility. The OMX-12GSDI-1X6 utilizes automatic input cable equalization able to drive SD signals up to 1000 feet and 12G-SDI signals to 150 feet on broadcast grade RG6 cable.

Supports DVB-ASI protocols at 270Mbps as well as SMPTE 259M, 292M, 344M, 424M, 425M, ST2081 and ST2082. A road tough full metal enclosure ensures high quality performance in all outside broadcast and studio facility applications.

Key Features

• 12G/6G/3G/HD/SD distribution
• Automatic input cable equalization up to 1000ft@SD, 500ft@HD, 300ft@3G, and 150ft@12G
• Supports all SMPTE video formats for HD and UHDTV broadcast requirements
• Six separately buffered and reclocked outputs
• Cable equalization and signal retiming
• LED indicators for signal input lock and rate
• Passes all ancillary data
• Automatic input type detection
• Additional distance can be achieved using Belden 4794R 12G SDI Coax
• Reclocking SDI signals for cascading and longer transmission
• Inter-locked power supply
• Supports 2K and 4K SDI transmission
• Universal Mounting Flanges

Technical Specifications

Supported Formats
DVB-ASI at 270Mbps, SMPTE 259M, SMPTE 292M, SMPTE 344M, SMPTE 424M, SMPTE425M, SMPTE ST2081, SMPTE ST2082
Data Rates
1.485 / 2.97 / 5.96 / 11.88 Gbps
Video Bandwidth
11.868/11.88Gbps
Input/Output
SDI (BNC - 75 ohm)
Power Consumption
5W
Dimensions
8x2.75x1in / 203x6.99x25.4mm with flanges
Weight
1 lb / 0.45 kg
