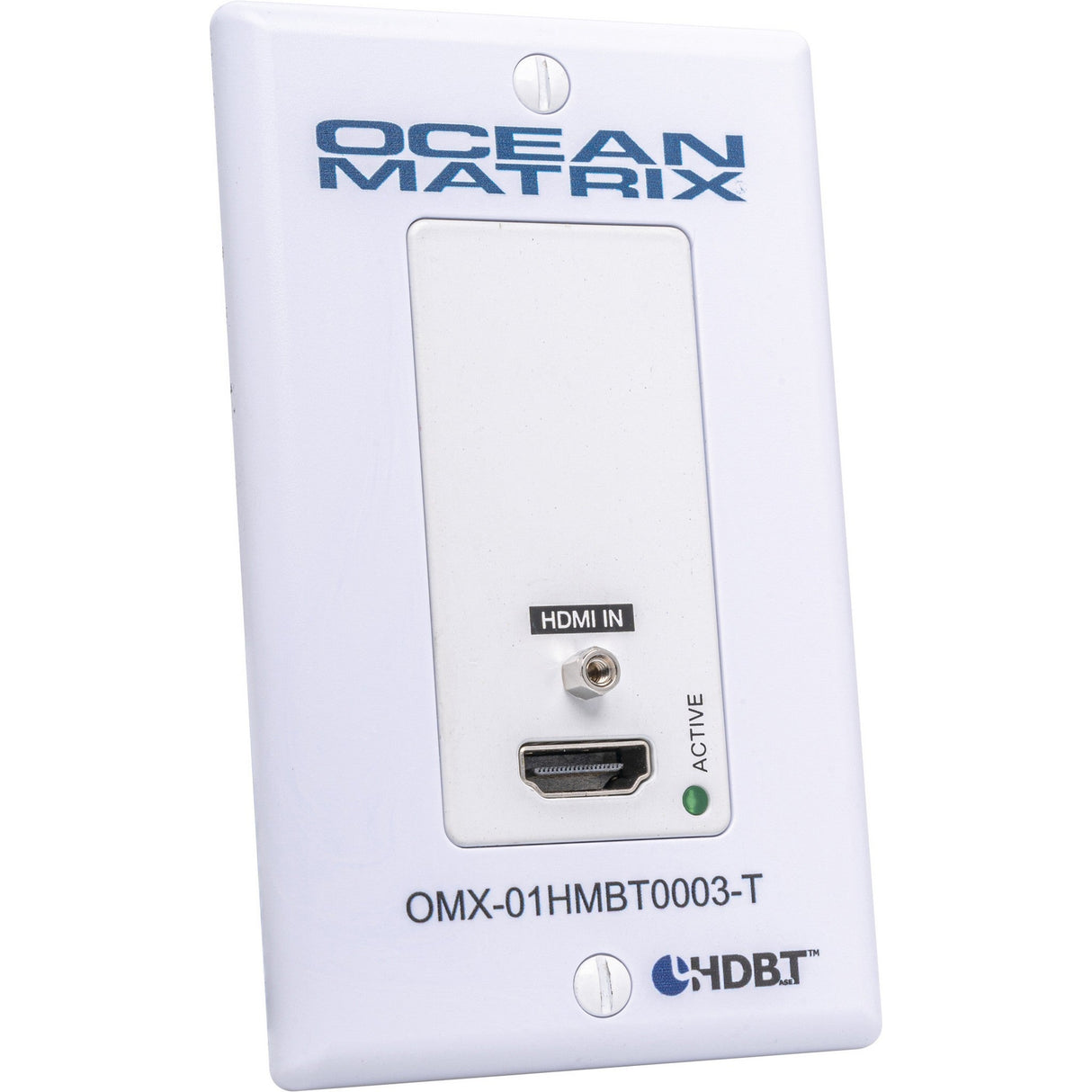

Ocean Matrix OMX-01HMBT0003-T HDBaseT 4K HDMI 1-Gang Wall Plate Transmitter

Ocean Matrix OMX-01HMBT0003-T HDBaseT 4K HDMI 1-Gang Wall Plate Transmitter

The Ocean Matrix OMX-01HMBT0003-T 1-Gang Wall Plate Transmitter meets HDBaseT standards for 4K video and HD audio transmission over a single Ethernet CAT6/6A/7 cable up to 131 feet. Supporting video resolutions up to 4K2K@50/60Hz (4:4:4), HDMI audio and optical audio formats, this transmitter features two-way IR & RS232 signals, and two-way 24V PoC. Convenient in-wall locations allow efficient and clean installations in boardrooms, conference rooms, and media rooms.

Key Features

• Extends Two-Way IR & RS232 Pass Through
• Video Resolutions up to 4K2K@60Hz YUV4:4:4
• Transmission Distance: 1080P Up to 230 Feet, 4K up to 131 Feet
• Up to 7.1 Channels HD Audio
• Two-Way 24V PoC
• Black Metal Enclosure with White Front Panel
• CE, FCC Certified
• Note: This transmitter does not support KVM/USB Functions of the OMX-01HMBT0003-R Receiver.

Technical Specifications

Compliance
HDMI 2.0b, HDCP2.2, HDCP 1.4
Video Bandwidth
18Gbps
Video Resolutions
Up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz,1080P@120Hz,1080P 3D@60Hz
Color Space
RGB/YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
10-bit, 12-bit
HDMI Audio Formats
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats
LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
Power Consumption
9W
Dimensions (HxWxD)
4.1 x 1.8 x 1.2 in
Weight
5 oz
Item Includes
2-3Pin RS232 connectors, 2-2Pin RS232 Connectors
Warranty
1 Year
