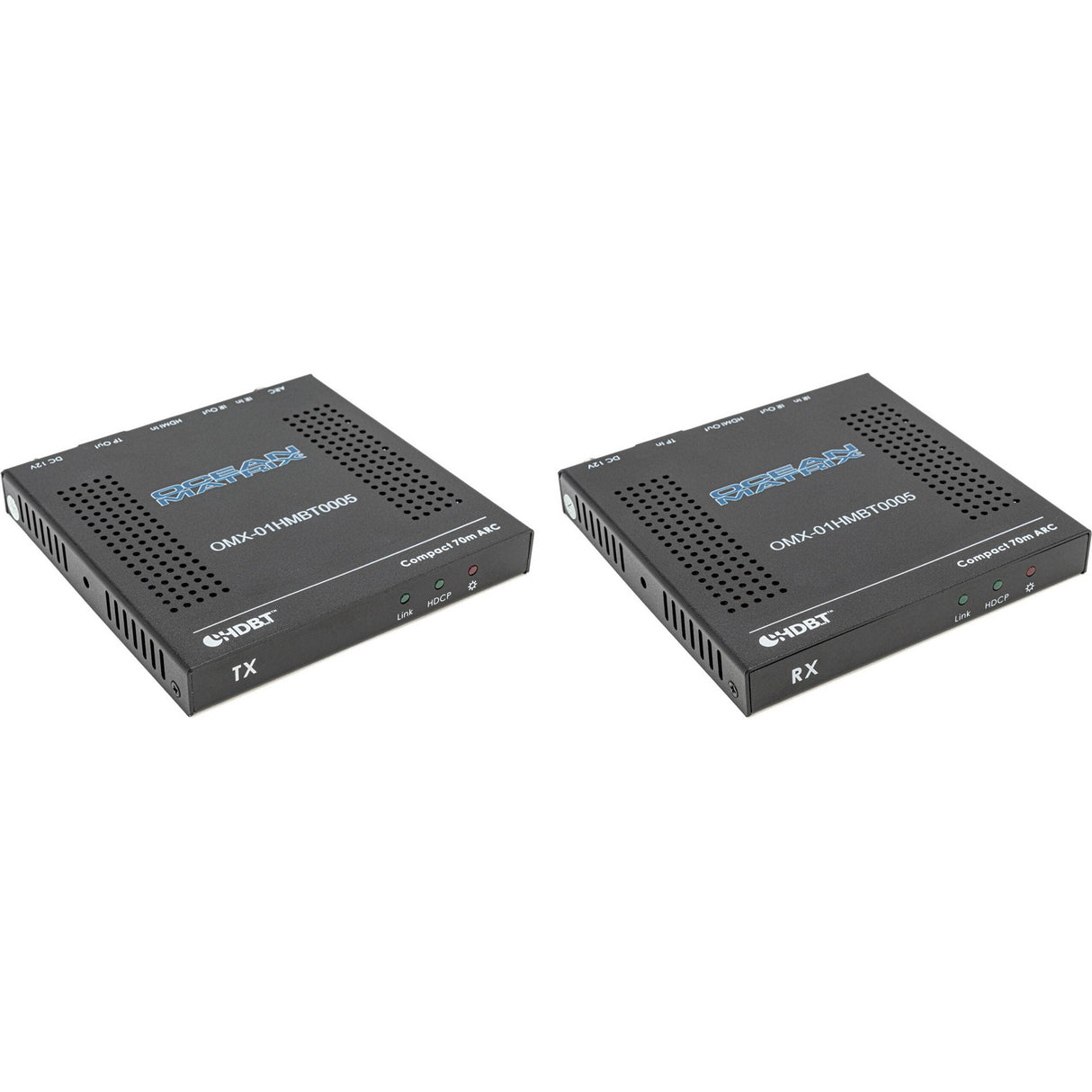

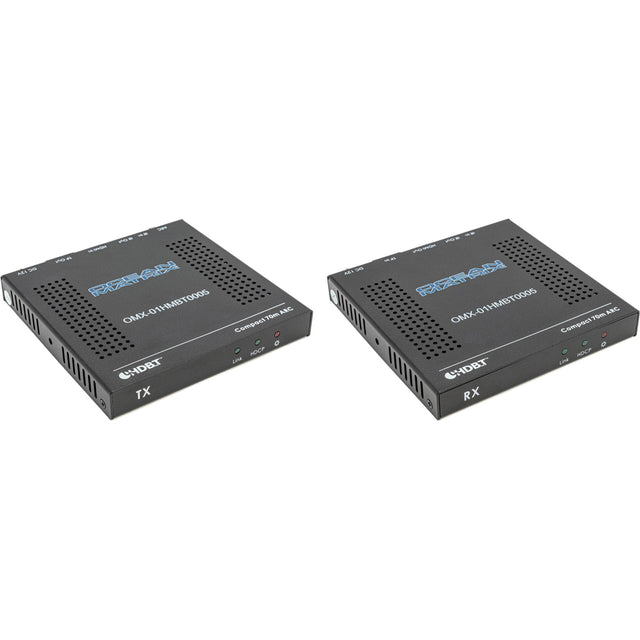

Ocean Matrix OMX-01HMBT0005 HDBaseT 4K HDMI Extender Set with ARC
Ocean Matrix OMX-01HMBT0005 HDBaseT 4K HDMI Extender Set with ARC is backordered. Please call for ETA 877-779-8964
Condition: New
Ocean Matrix OMX-01HMBT0005 HDBaseT 4K HDMI Extender Set with ARC
Description
Description
Ocean Matrix OMX-01HMBT0005 HDBaseT 4K HDMI Extender Set with ARC
The Ocean Matrix OMX-01HMBT0005 HDMI extender meets HDBaseT standards for 4K video and HD audio transmission over a single Ethernet CAT5e/CAT6a cable up to 131 feet. This extender supports video resolutions up to 4K2K@30Hz 4:4:4 and features CEC pass through, two-way IR, and two-way 48V 24V PoH (power over HDBaseT). The ARC function enables audio upstreaming from display to speakers and the two-way PoH makes system installation simpler and more streamlined.
Key Features
- Supports Two-Way IR Signals
- CEC & EDID Pass Through
- ARC Function Enables Audio Upstreaming
- Transmission Distance: 1080p@60Hz up to 230 Feet, 4K@30Hz up to 131 Feet
- Two-Way 48V PoH
- Rugged Black Powder-Coated Metal Enclosure
- CE, FCC Certified
Technical Specifications
Compliance
HDMI 1.4, HDCP 1.4
Bandwidth
10.2Gbs
Video Resolution up to 4K2K@30Hz 4:4:4
Power Consumption
TX 3.3W, RX 6.4W
Dimensions (HxWxD)
0.63 x 4.53 x 3.3 in each unit
Weight
7 oz each unit
Item Includes
4 Mounting Ears & 4 Screws, 1-12V/2A power supply
Warranty
1 Year
