Ocean Matrix OMX-10HMIP0003 H.264 1080P AV Over IP Full HD HDMI Encoder

Ocean Matrix OMX-10HMIP0003 H.264 1080P AV Over IP Full HD HDMI Encoder

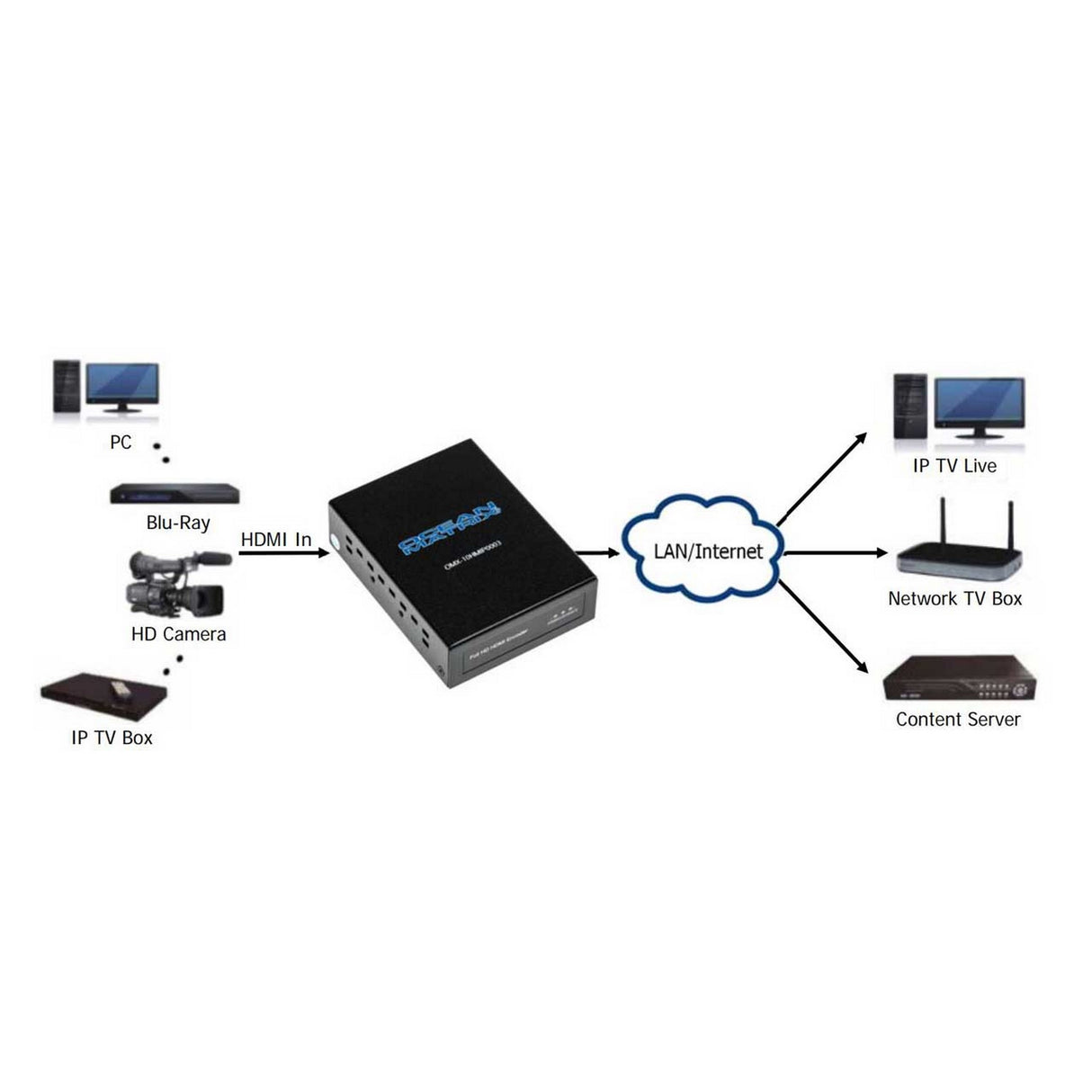

Stream crystal clear 1080p/60 HDMI signals over IP networks with the Ocean Matrix 10HMIP0003 HDMI Encoder. This H.264 IPTV encoder sends HDMI over an IP network allowing you to stream signals for local channels or live video production distribution.

The 10HMIP0003 supports UDP, HTTP, RTSP, RTMP and ONVIF protocols and includes a web management interface for complete remote control. The unIt'supports both LAN and RTMP multicasting allowing multiple users to view your video streams using common applications such as VLC Player and Adobe Media Server.

A unique feature of the Ocean Matrix 10HMIP0003 HDMI Encoder is a logo insertion function which allows image insertion on the video stream. This works great in digital signage applications for reinforcing your brand name.

Key Features

• H.264 Encoding
• 3 LED Indicators for Power, LAN and HDMI
• Web Interface Management
• Image Parameter Settings
• Custom Resolution Settings
• Multi-Streaming Output
• OSD Settings
• Supports VLC, RTMP, & NVR Protocols
• Black Powder-Coated Steel Enclosure
• FCC, CE Certified

Technical Specifications

Maximum Transmission Distance
Full Duplex 328 Feet over Cat5e/6
Supported Protocols
UDP, HTTP, RTSP, RTMP, ONVIF
CBR/VBR Rate
16Kbps - 16Mbps
Video Resolutions
up to 720p, 1080p@60HZ HD
Audio Format
MPEG1 Audio Layer 2
Dimensions
4 1/8 x 3 1/8 x 1 1/8 Inches
Weight
9.6 oz
Item Includes

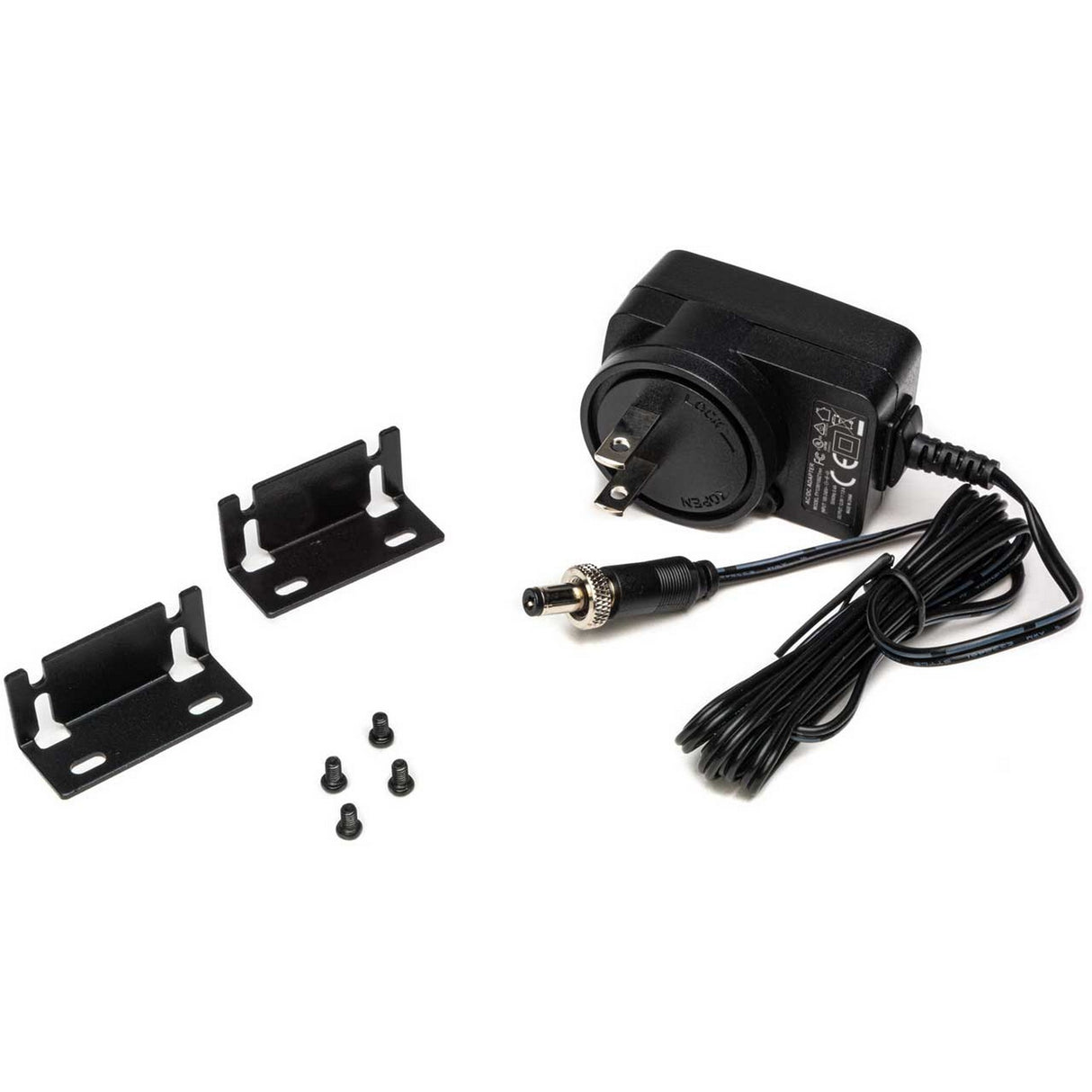

1-12VDC/1A Power Supply, CD, 2 Brackets, 4 Screws
Warranty
1 Year
