Ocean Matrix OMX-3G-CC | 3G SDI-HDMI Multiformat Cross Converter

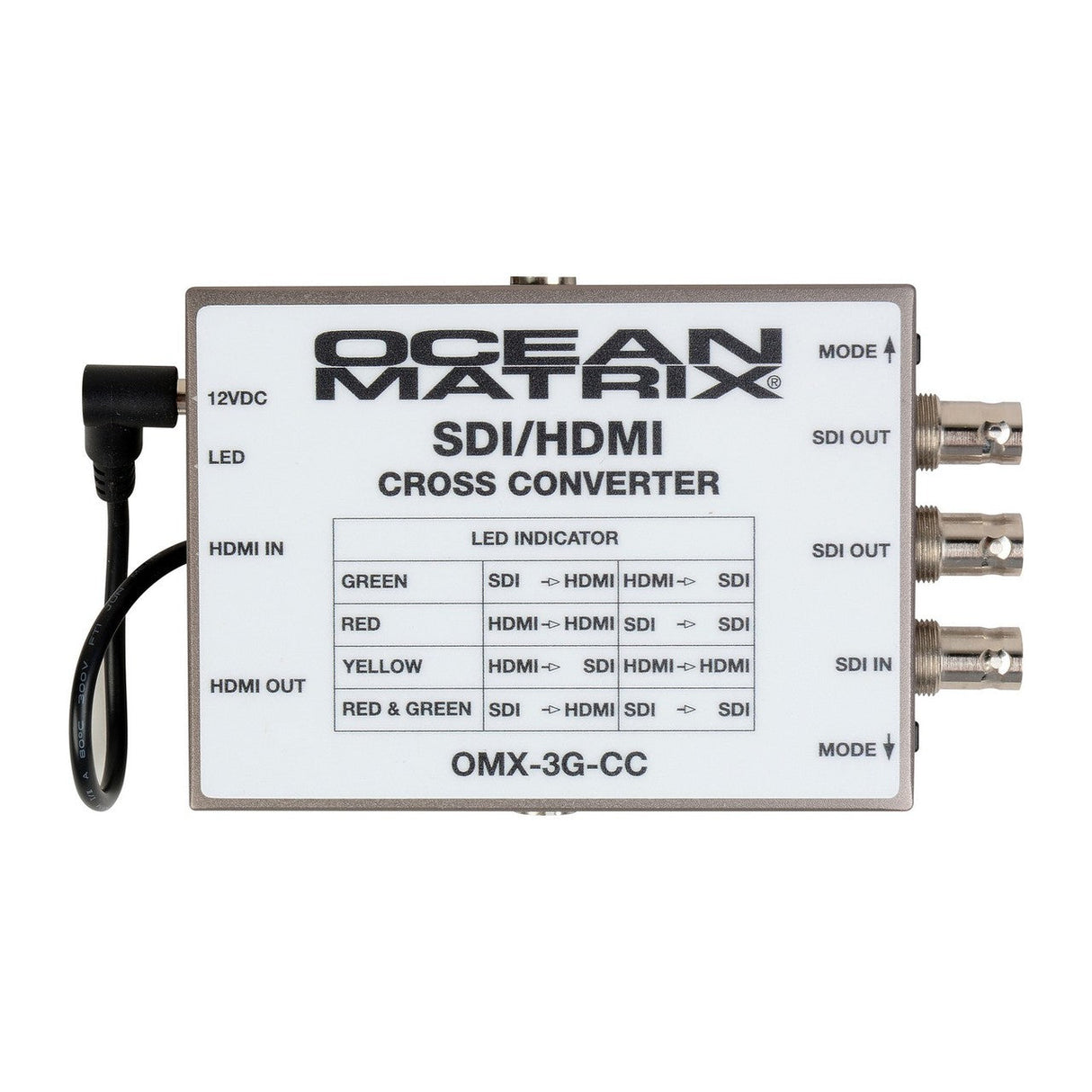

Ocean Matrix OMX-3G-CC 3G SDI-HDMI Multiformat Cross Converter

The Ocean Matrix OMX-3G-CC is a unique broadcast quality cross converter perfect for any multiformat field and studio tool kit. Whether you need to convert a 3G-SDI output to feed your HDMI camera top monitor or convert your HDMI feed to match your 3G-SDI production switcher, the OMX-3G-CC is your all-in-one solution.

Supporting a wide range of formats, the unit not only converts 3G/HD/SD-SDI to HDMI or HDMI to 3G/HD/SD-SDI but features dual powering capability and convenient mounting options. The back of the OMX-3G-CC has a built in Sony NP F970 type mounting plate with a power plug tether. So if you're out in the field on a shoot you'll always have an option to power your converter. Simply detach the power tether in place of a standard power supply when standard AC power is available. And its 1/4-20 threaded top and bottom mounting holes mean you can position it wherever it's convenient.

For true field reliability, the unit is housed in a super rugged metal shell and has the muscle to send 3G-SDI signals up to 100 meters.

NOTE: The output resolution, frame rate, and frequency will be the same as the input resolution.

Key Features

• Enhanced HD Signal Processing Technology
• SDI Input, 2 SDI Outputs, and 1 HDMI Input, 1 HDMI Output
• Complies with SMPTE 424M, SMPTE 292M, SMPTE 259M Standards
• 100 Meter 3G-SDI Transmission on SDI Output
• Supports wide range input voltage from 5V - 24V
• Dual Power Capability - DC adapter or Sony NP F970 Lithium Battery
• Top & Bottom 1/4-20 Threads Convenient Mounting Option
• Power I/O Status Indicator
• Super Rugged Housing
• Embedded Audio Compatible
• SDI and HDMI Looping Outputs (All Outputs are Active)

Technical Specifications

Power Consumption
=4.2W
Input Voltage
DC 5~24V
Connector
DC 12V
Battery Plate
Sony NP F970 type; D28S, E6 (optional)
Working Temperature
-17 C~55 deg C
Storage Temperature
-30 C~65 deg C
Dimensions (LHD)
4.27x 3.07x0.93in (108.5x78x23.5mm)
Weight
8.96/ 9.89 oz with F970 Plate (254g/ 280g)
Inputs
1x HDMI
1x BNC 3G/HD/SD-SDI
Outputs
2x BNC 3G/HD/SD-SDI
1x HDMI
Supported SDI Formats
3G-SDI:1080P(60/59.94/59/50)
HD-SDI:1080P(30/29.97/29/25/24)
1080I(60/59.94/50)
1080PsF24
720P(60/59.94/50)
SD-SDI:576I,480I(60/59.94)
Supported HDMI Formats
1080P(60/59.94/59/50/30/29.97/29/25/24)
1080I(60/59.94/50)
1080psf24
720P(60/59.94/50)
576I,480I(60/59.94)
