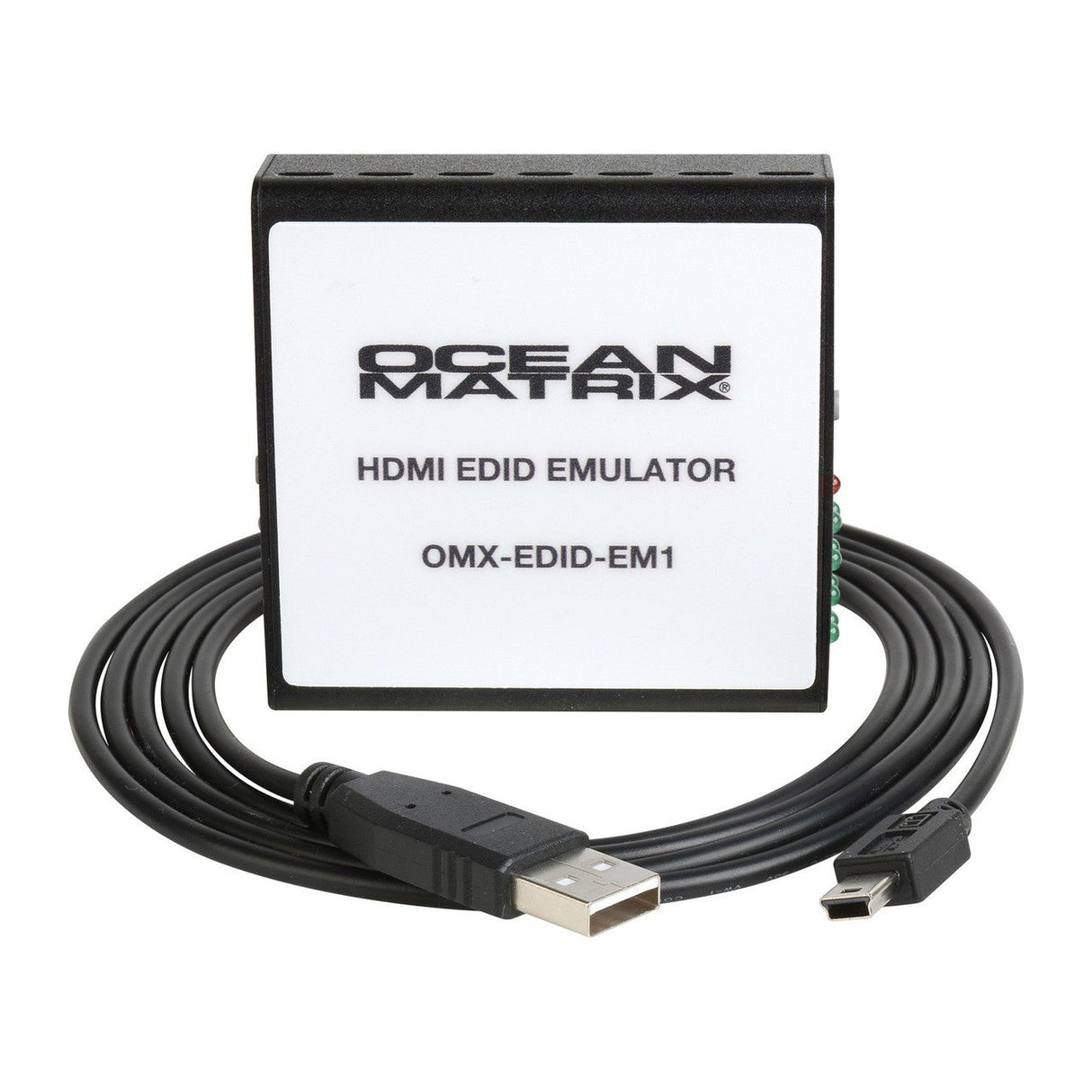

Ocean Matrix OMX-EDID-EM1 HDMi EDID Emulator
Avoid annoying compatibility issues between HDMI sources and displays with the Ocean Matrix OMX-EDID-EM1 EDID emulator.
It's a simple inline HDMI in / HDMI out device that allows the adjustment of HDMI/DVI EDID info passed between a display and source gear "syncing" the two to provide a proper video & audio signal.
The OMX-EDID-EM1 has a learning function allowing the user to Read and Write the video/audio EDID to the system. In addition, the unIt'supports EDID Emulation as well as a Bypass mode. Perfect for installations, system integration or for use in testing equipment.
Key Features
- HDMI and DVI 1.0 compliant
- Supports 8 sets of default EDID
- Supports DVI source with a HDMI to DVI adaptor
- Supports Consumer Electronics Control (CEC) and EDID pass through
- Can be powered through the USB or HDMI input
- High video bandwidth up to 300 MHz/9 Gbps
- Resolutions up to 1080p@60 Hz and 4Kx2K@24/25/30 Hz
- 12-bit Deep Color
- LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio (Sampling rates from 32 kHz to 192 kHz)
- Read: Reads the display's EDID information
- Write: OverwrIt's the display's EDID information (display needs to be able to support overwrite function)
- Emulator: Allows the source device to read the selected EDID information from the unIt's default or learned EDID memory
- Bypass: Allows the source device to read the EDID information from the TV/display directly
- Vented Enclosure
- USB Power
Technical Specifications
Inputs
1- HDMI, 1-USB Mini-B
Output
1-HDMI
Dimensions (LWH)
2.8 x 2.8 x 0.9in / 71 x 71 x 23mm
Weight
3.81 oz / 108g
