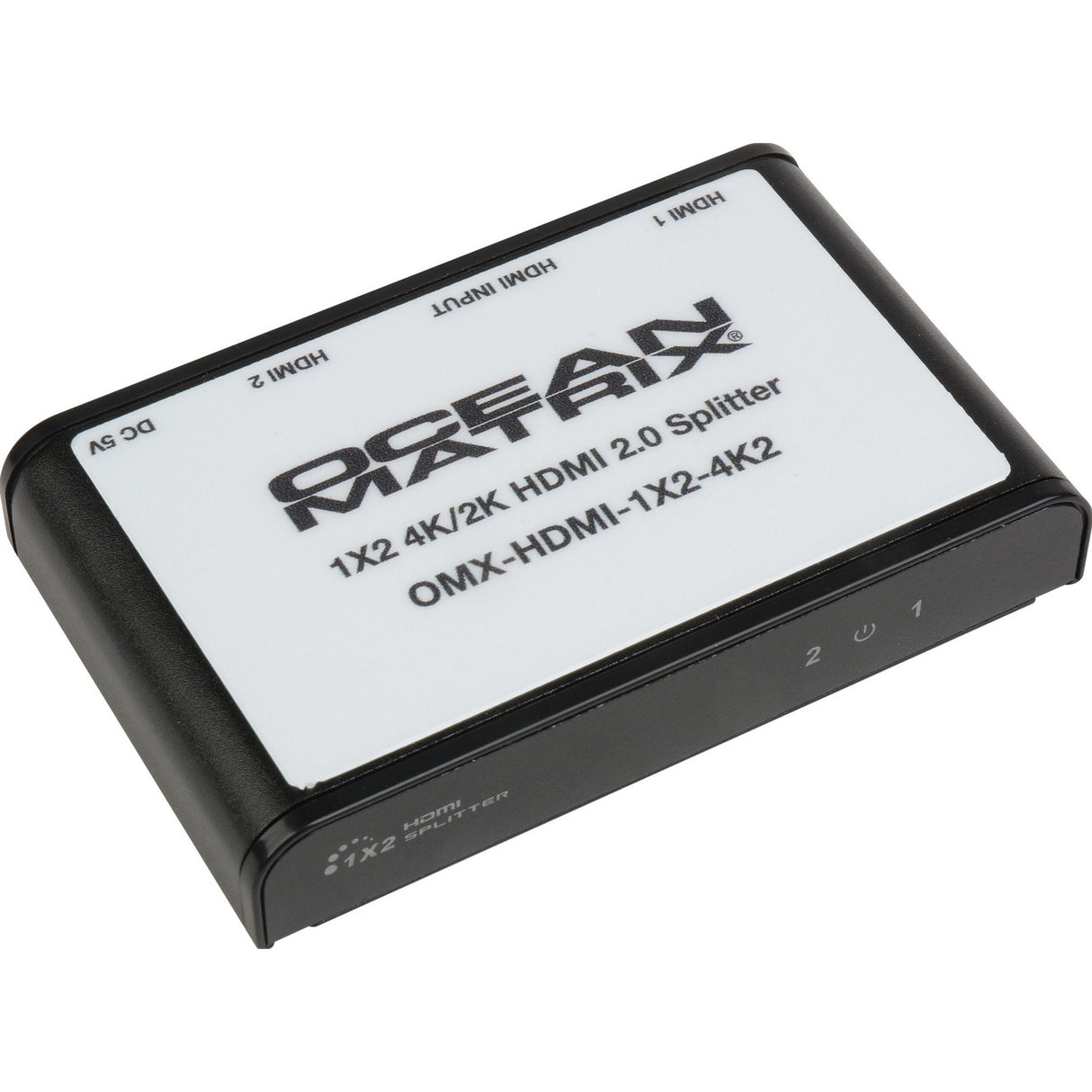

Ocean Matrix OMX-HDMI-1X2-4K2 4K UHD 1 x 2 HDMI 2.0 Splitter/Distribution Amplifier

Ocean Matrix OMX-HDMI-1X2-4K2 4K UHD 1 x 2 HDMI 2.0 Splitter/Distribution Amplifier

A compact 1x2 HDMI splitter / distribution amplifier to send a single 4K HDMI signal from cameras, set top boxes, Blu-ray players and digital signage players simultaneously to two (2) HDMI displays, projectors, extenders or other HDMI enabled devices.

The Ocean Matrix OMX-HDMI-1X2-4K2 supports resolutions up to 4K/UHD (4096 x 2160) but also works with HD & SD signals without loss while maintaining the highest standards. The unit also meets all standards for HDMI 2.0 and HDCP 2.2 specifications.

Key Features

• Distributes 1 HDMI Source to 2 HDMI Displays Simultaneously
• Supports HDMI 3D and 4K x 2K@60Hz when both the input and output devices support 4K x 2K
• HDMI source and HDMI displays support 3D
• Supports Bandwidth up to 18Gpbs
• HDMI2.0 Compliant
• HDCP2.0 Compliant
• Audio - Supports Standard, Direct Stream Digital, and HD/HBR

Technical Specifications

Support 12 Bit Full HD Video, 3D Video and 4Kx2K@30/60Hz Ultra HD Video
HDMI Resolutions
480i/480p/756i/756p/720p/1080i/1080p/
4Kx2K@24/25/30/60Hz
Compatible with DVI1.0, HDMI1.4, HDMI2.0
Input port
1- HDMI / Output ports: 2 - HDMI
Frequency Range
25MHz~600MHz
TMDS Signal
0.5~1.5Vp-p(TMDS)
DDC Signal
5Vp-p(TTL)
Power Consumption
5W
Dimensions (WxDxH)
3.8x2.3x0.66in / 96x59x16.8mm
Weight
3.2oz / 98g
Item Includes
5VDC/1A power supply
Warranty
1 Year
