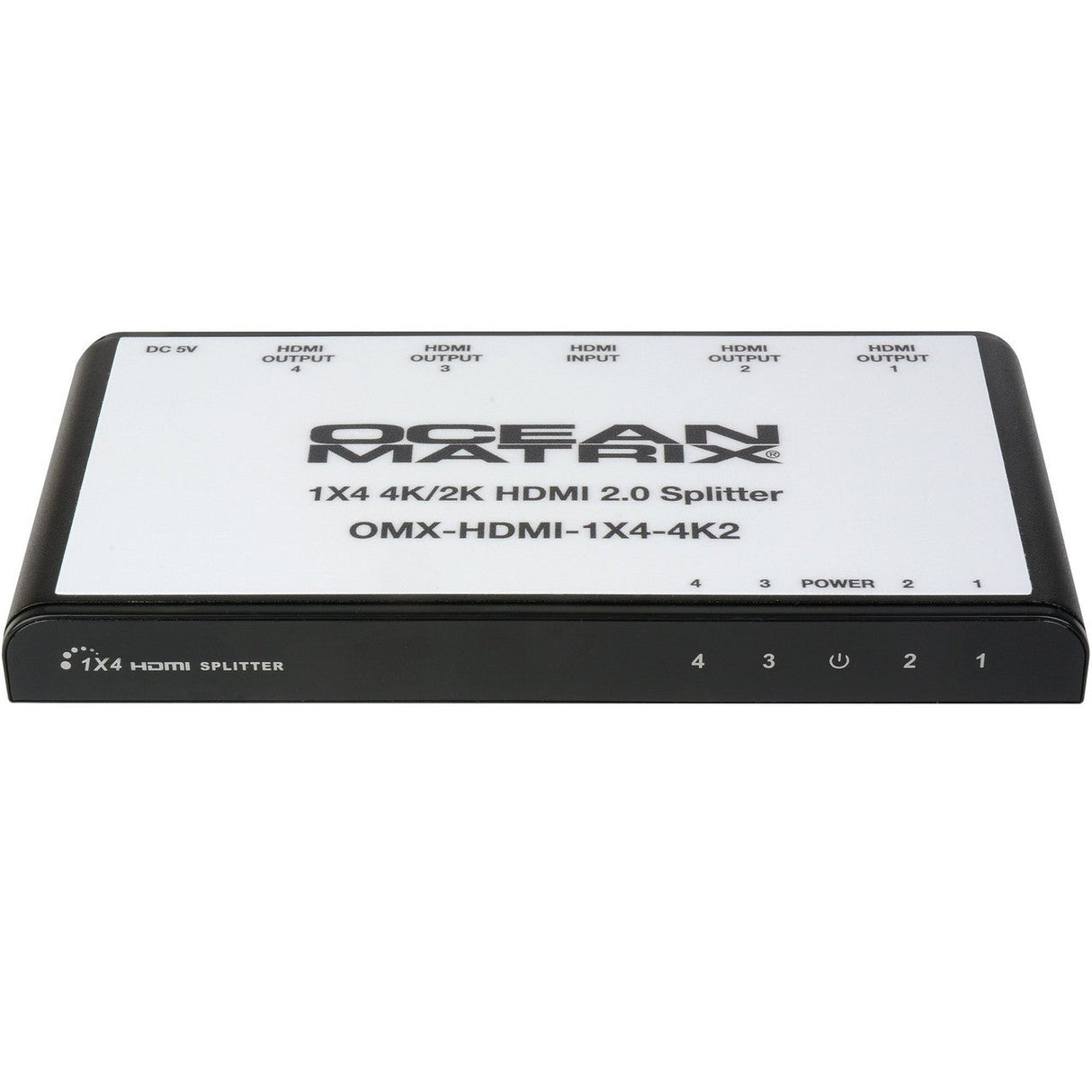

Ocean Matrix OMX-HDMI-1X4-4K2 | 4K UHD 1x4 HDMI 2.0 Splitter/Distribution Amplifier

Ocean Matrix OMX-HDMI-1X4-4K2 4K UHD 1x4 HDMI 2.0 Splitter/Distribution Amplifier

A compact 1x4 HDMI splitter / distribution amplifier to send a single 4K HDMI signal from cameras, set top boxes, Blu-ray players and digital signage players simultaneously to four (4) HDMI displays, projectors, extenders or other HDMI enabled devices.

The Ocean Matrix OMX-HDMI-1X4-4K2 supports resolutions up to 4K/UHD (4096 x 2160) but also works with HD & SD signals without loss while maintaining the highest standards. The unit also meets all standards for HDMI 2.0 and HDCP 2.2 specifications.

Key Features

• Distributes 1 HDMI Source to 4 HDMI Displays Simultaneously
• Supports HDMI 3D and 4K x 2K@60Hz when both the input and output devices support 4K x 2K
• HDMI source and HDMI displays support 3D
• Supports Bandwidth up to 18Gpbs
• HDMI 2.0 Compliant
• HDCP2.2 Compliant
• Audio - Supports Standard, Direct Stream Digital, and HD/HBR
• Support 12 Bit Full HD Video, 3D Video and 4Kx2K@30/60Hz Ultra HD Video
• HDMI Resolutions: 480i/480p/756i/756p/720p/1080i/1080p/
• 4Kx2K@24/25/30/60Hz
• Compatible with DVI1.0, HDMI1.4, HDMI2.0
• Input port: 1- HDMI / Output ports: 4 - HDMI
• Frequency Range: 25MHz-600MHz
• TMDS Signal: 0.5-1.5Vp-p(TMDS)
• DDC Signal: 5Vp-p(TTL)
• Power Consumption: 8W
• Dimensions (WxDxH): 6.2x3.15x0.67in / 158x80x17mm
• Weight: 6.9oz / 196g
