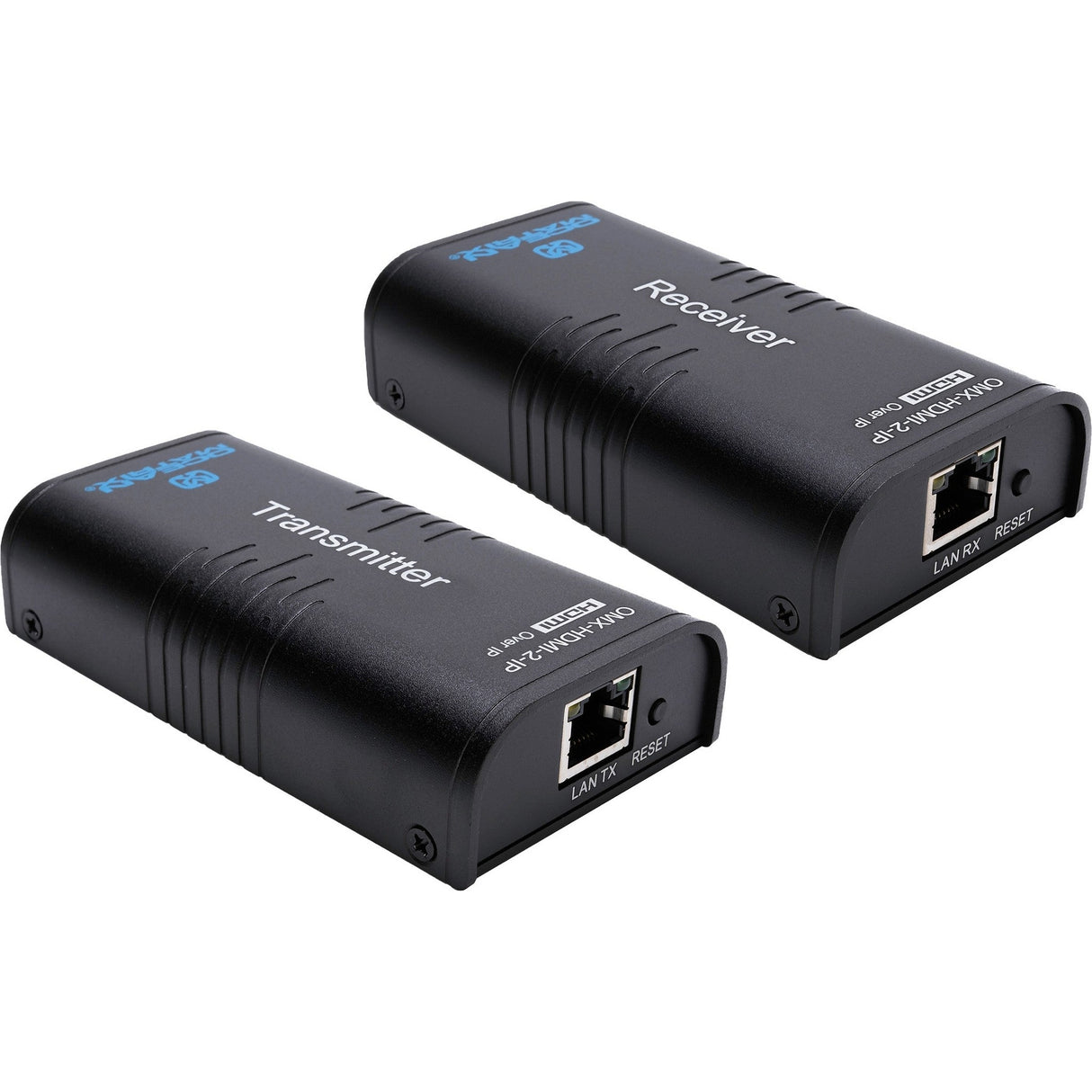

Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Extender/HDMI to CAT5/CAT6 Converter

Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Extender/HDMI to CAT5/CAT6 Converter

Distribute HDMI over your LAN/VLAN network with the Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Converter/Extender. No longer is distance a limitation when sending HDMI. Converts HDMI to standard TCP/IP and transmits the signal over your local area network.

The great advantage of converting HDMI to TCP/IP is that you can now send HDMI over your entire network freeing you of the typical limitations found in send/receive point-to-point systems. The Ocean Matrix OMX-HDMI-2-IP delivers unparalleled performance in PRO-AV projection networks, digital signage systems and educational streaming applications. Now your network is your HDMI network!

The transmitter has a static IP address and can pair with multiple receivers (up to 8). Multiple transmitters and multiple receivers can be paired on the same network.

A VLAN switch is required to operate multiple units (up to 8 transmitter/receiver pairs) with separate IP addresses on the same LAN network.

Key Features

• Supports Multiple Receivers (up to 8) from a Single HDMI Extender / Transmitter
• 36 Bit Deep Color Support
• May Also be Used as a Standard Point-to-Point (up to 120 meters) Transmit & Receive for On-Location Monitoring & Content Delivery
• L/R Stereo Audio
• Transmission Rate Supported: 10.2Gbps
• Robust Aluminum Housing

Technical Specifications

HDCP Support
HDCP1.2
Input HDMI resolution
480i@60Hz; 480p@60Hz; 576i@50Hz; 576p@50Hz; 720p@50/60Hz; 1080i@50/60Hz; 1080p@50/60Hz;
Output HDMI resolution
480p@60Hz; 576p@50Hz; 720p@50/60Hz; 1080p@50/60Hz
Supported Video Color Formats
24 Bit/Deep color; 30 Bit/Deep color; 36 Bit Deep Color
Max transmission rate
10.2Gbps
Network Bandwidth Utilized
80Mbs
Latency
70ms
Audio signal transmission format
L/R stereo audio
TMDS signal
0.5-1.5Vp-p (TMDS)
DDC signal
5Vp-p(TTL)
Input cable length
5m (AWG26 HDMI1.3 standard cable)
Output cable length
5m (AWG26 HDMI1.3 standard cable)
Transmission medium
Connector Type
RJ45
Twisted Pair Interface
Cat5e/6
Transmission distance
Cat6 up to 120m (Cat5e up to 100m)
Cabling standards
TIA/EIA568 B
Power Supply
5VDC/1A
Power consumption
<3.6W
Dimensions (Tx or Rx Unit)
4.25” L x 2.25” W x 1.0”H
Weight
Tx/Rx Unit Each: 0.3 LBS
Item Includes
HDMI Over IP Sender
HDMI Over IP Receiver
Two 5VDC/1A Switching Power Supply
User Manual
