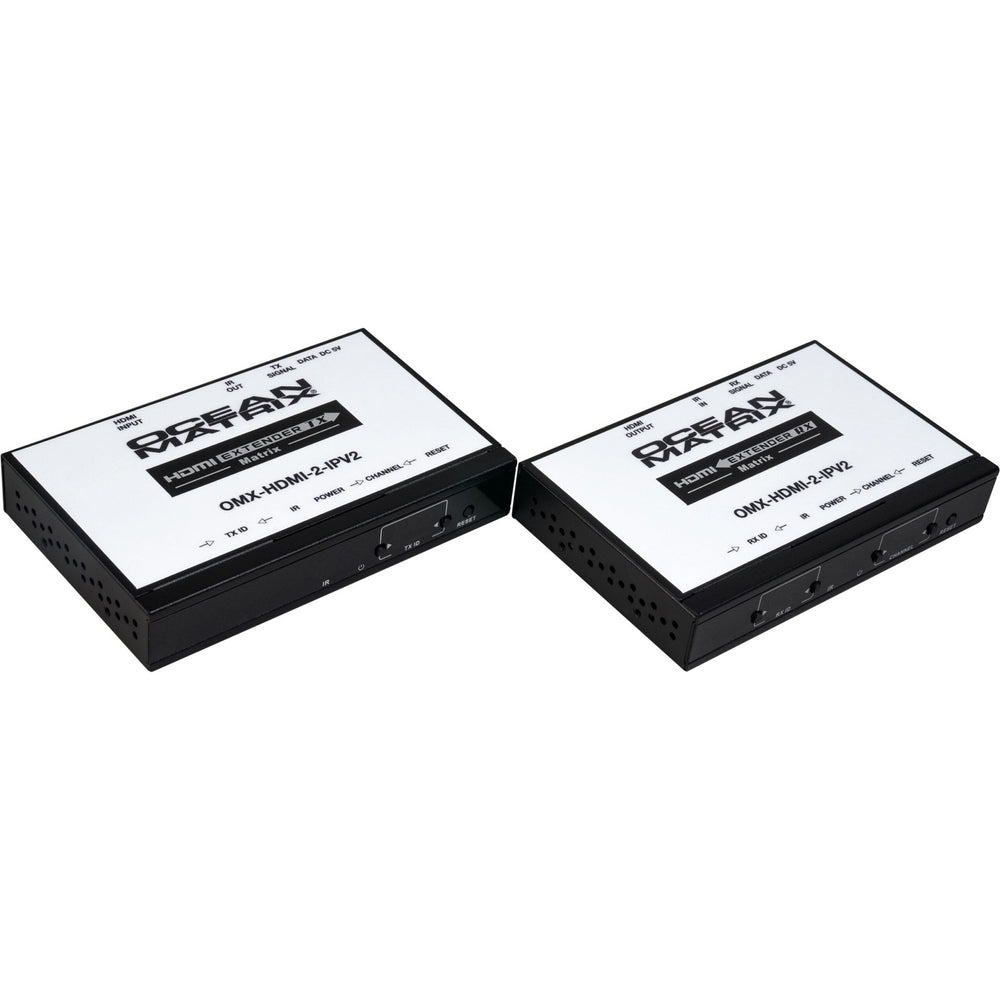

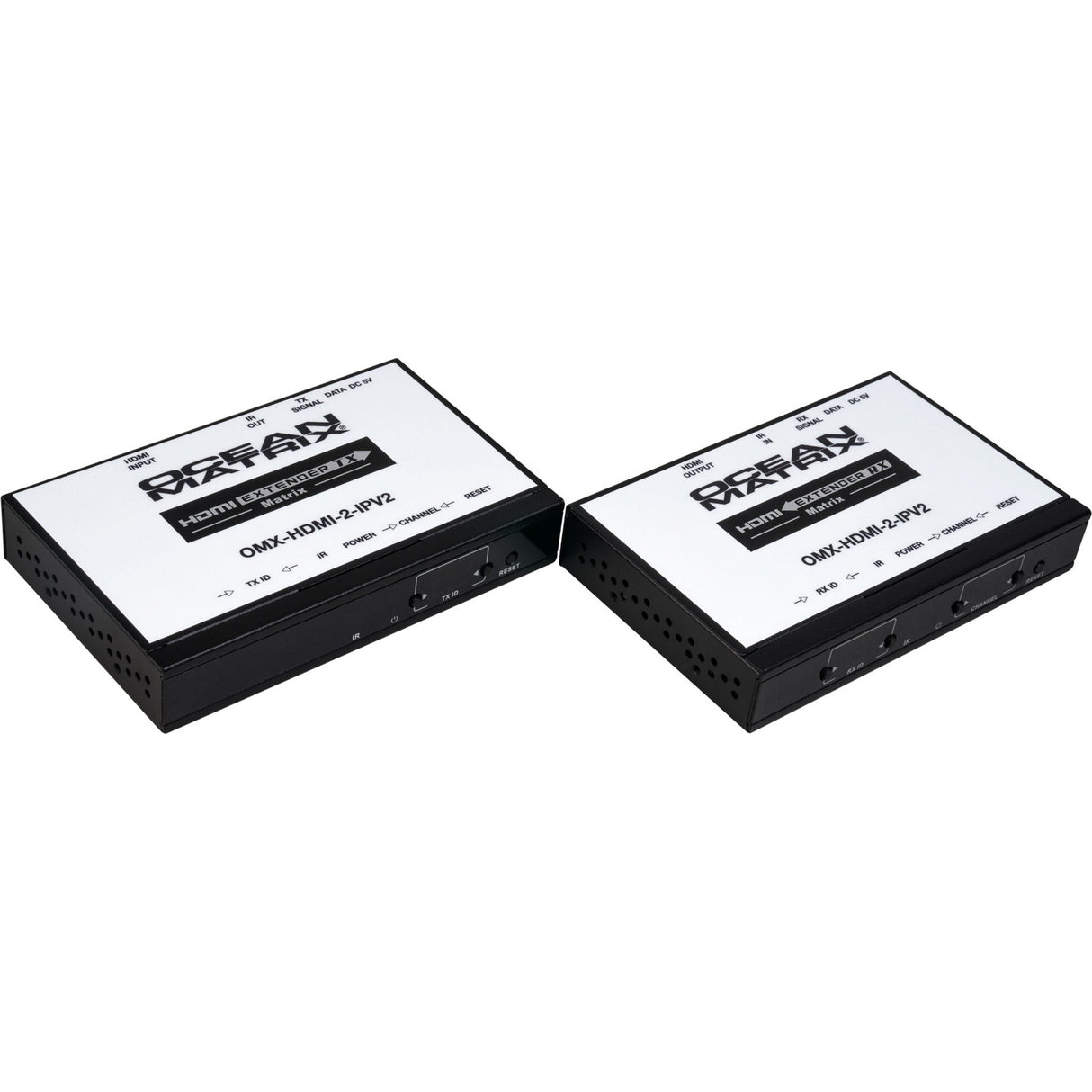

Ocean Matrix OMX-HDMI-2-IPV2 HDMI 1080p Multipoint to Multipoint Over IP Single CAT5/CAT6 Extender

Ocean Matrix OMX-HDMI-2-IPV2 HDMI 1080p Multipoint to Multipoint Over IP Single CAT5/CAT6 Extender

Seamlessly multicast HDMI signals via IGMP protocol from hosts to adjacent routers on IPv4 networks with the Ocean Matrix HDMI-2-IPV2 Extender. Now streaming HDMI over your network has never been easier and long distance limitations are eliminated. The send and receive system is a cost effective solution for sending HDMI 1.3 over networks and can be configured in point-to multipoint setups.

The Ocean Matrix HDMI-2-IPV2 employs advanced HDbitT over IP technology to take advantage of LAN switches supporting IGMP protocols. This allows the creation of a multiple HDMI extender matrix for up to 99 transmitters and unlimited receivers in a system. HDMI signal flows can be carried over a single CAT5/5e/6 cable up to 394 feet. The Ocean Matrix HDMI-2-IPV2 brings unparalleled performance in PRO-AV projection networks, digital signage systems and educational streaming applications. Now your network is your HDMI network!

Units also support IR pass back functionality for device control from the receiver location. In addition, computer control software can be employed to select and switch between source devices.

Key Features

• Route up to 99 HDMI Sources to Multiple HDMI Devices Through LAN Switch with IGMP
• Scalable and Flexible Input-Output Matrix Configuration Allowing 99 Inputs to Infinite Outputs
• HDMI Signal Transmission Distance
• Cat5 263 Ft, Cat5E 328 Ft, Cat6 394 Ft
• Point-to-Point and Point-to-Multipoint Connections
• IR Pass Back Function Controls Source from RX Location using the IR Remote Control
• HDMI Signal 1.3, Compliant to HDCP

Technical Specifications

Network Bandwidth
18Mbps
Supported Resolutions
480p@60Hz, 576p@50Hz, 720p@60Hz, 1080p@60Hz
Audio Format
PCM
TMDS Signal
0.7-1.2Vp-p
DDC Signal
5Vp-p
IR Pass Back
20-60KHz IR Devices
Power Supply
5VDC/1A
Power Consumption
4W Each Unit
Weight
TX - 9.17 oz/260g RX - 8.81 oz/250g
Dimensions
5.27x3.30x0.94 in / 133.8x83.8x23.8 mm each unit
Requires an IGMP Ethernet Switch
Item Includes
One Transmitter
One Receiver
Two 5VDC/2A Power Adapters
One IR Receiver Cable, connects to transmitter
One IR Blaster Extension Cable, connects to receiver
Remote Control
Four Mounting Ears
Not Included
IGMP Ethernet Switch
Warranty
1 Year
