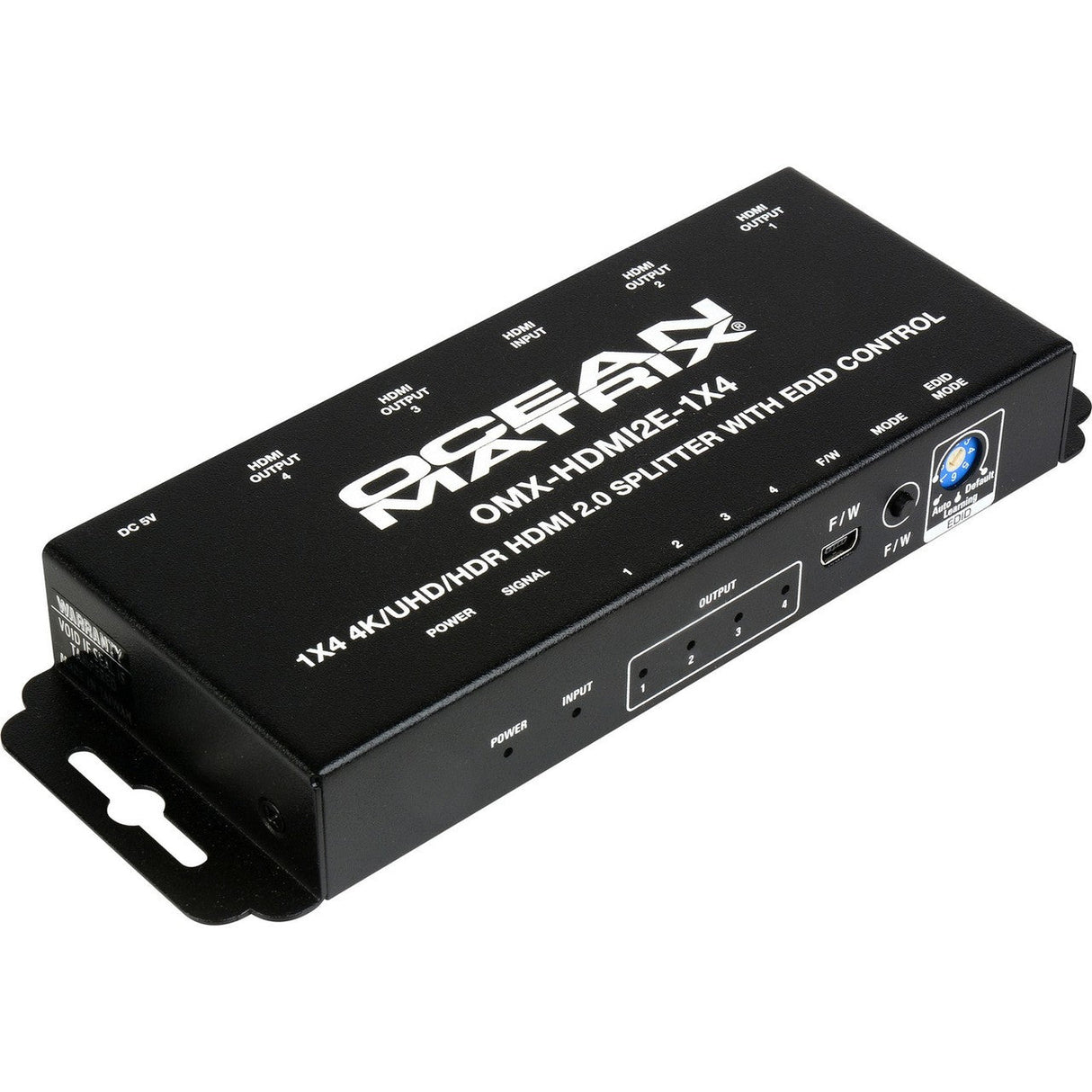

Ocean Matrix OMX-HDMI2E-1X4 | 1x4 4K UHD HDR HDMI 2.0 Splitter Distribution Amplifier

Ocean Matrix OMX-HDMI2E-1X4 1x4 4K UHD HDR HDMI 2.0 Splitter Distribution Amplifier

A compact 1x4 HDMI splitter / distribution amplifier to send a single 4K HDMI signal from cameras, set top boxes, Blu-ray players and digital signage players simultaneously to four (4) HDMI displays, projectors, extenders or other HDMI enabled devices.

The Ocean Matrix OMX-HDMI2E-1X4 supports resolutions up to 4K/UHD (4096 x 2160) but also works with HD & SD signals without loss while maintaining the highest standards. The unit also meets all standards for HDMI 2.0 and HDCP 2.2 specifications.

To simplify installations in larger applications such as digital signage, sports venues or houses of worship, the OMX-HDMI2E-1X4 employs EDID management to ensure device compatibility and communication between display and source.

Key Features

• Distributes 1 HDMI Source to 4 HDMI displays simultaneously
• Supports Resolutions up to 4K
• EDID Mode Selection Rotary Switch
• Automatic EDID Learning
• Video: 4K2K@60 4:4:4 8bits/HDR 4K2K@60 4:2:0 10bits
• Audio: DTS-HD, Dolby TrueHD. DTS. DVD-audio, LPCM, SACHD, MPCM

Technical Specifications

Compliance
HDMI 2.0a, DV1 1.0, HDCP 2.2
Frequency Range
25MHz-600MHz
Video bandwidth
18Gbps
Supports
xvYCC, x.v.Color & Deep Color
Power Consumption
10W
Dimensions
5.3x2.4x0.8 in/135x62x20mm
Weight
8.1 oz/230g
