Ocean Matrix OMX-HDMICAT1X4 HDMI 18Gbps 1 x 4 Splitter and CAT6/6a/7 Extender with 4 Receivers

Ocean Matrix OMX-HDMICAT1X4 HDMI 18Gbps 1 x 4 Splitter and CAT6/6a/7 Extender with 4 Receivers

Distribute and extend HDMI signals in brilliant 4K quality to 4 displays at a range over 100 feet with the Ocean Matrix HDMICAT1X4. This system is perfect for digital signage applications in sports bars, restaurants and businesses as well as trade show booths and similar live event spaces. The HDMICAT1X4 supports Power Over Copper to simplify installations at displays or projectors and the system also offers built-in EDID management to ensure your signals are always on.

The Ocean Matrix HDMICAT1X4 supports HDMI 2.0 4K2K@50/60Hz 4:4:4 signals. The base unit of the system has 4 outputs designed for signal distribution over CAT6/6A/7 infrastructures and receiver units can be up to 115 feet away. The system also supports IR control.

Key Features

• Extends 4K2K@50/60Hz up to 35m, 4K2K@30Hz up to 50m, 1080p up to 60m over CAT/6/6a/7 cable

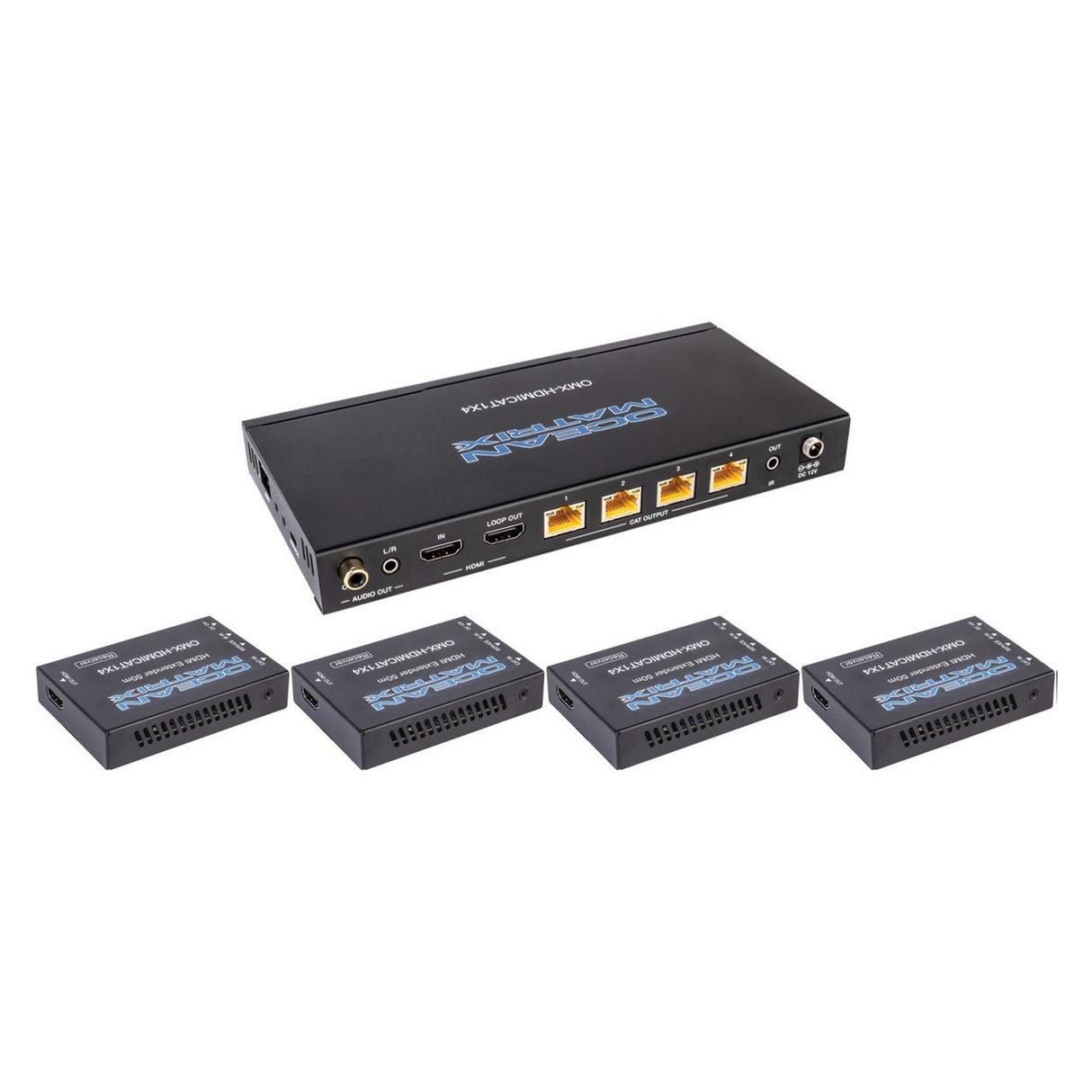

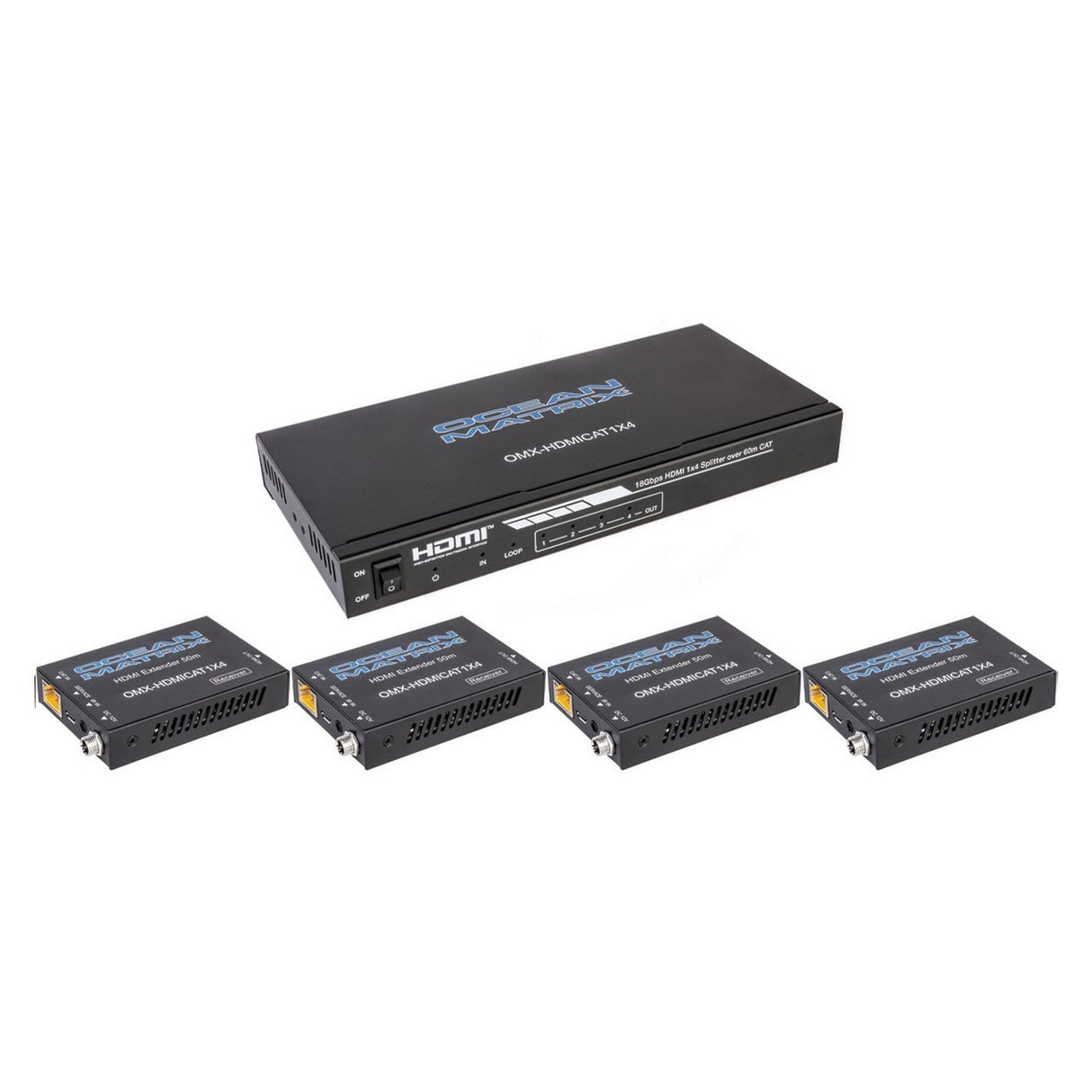

• Includes 1 Transmitter and 4 Receivers
• Supports HDR, HDR10+, HLG and Dolby vision
• Advanced EDID Management
• One Way PoC from Tx to Rx
• One-Way IR Control

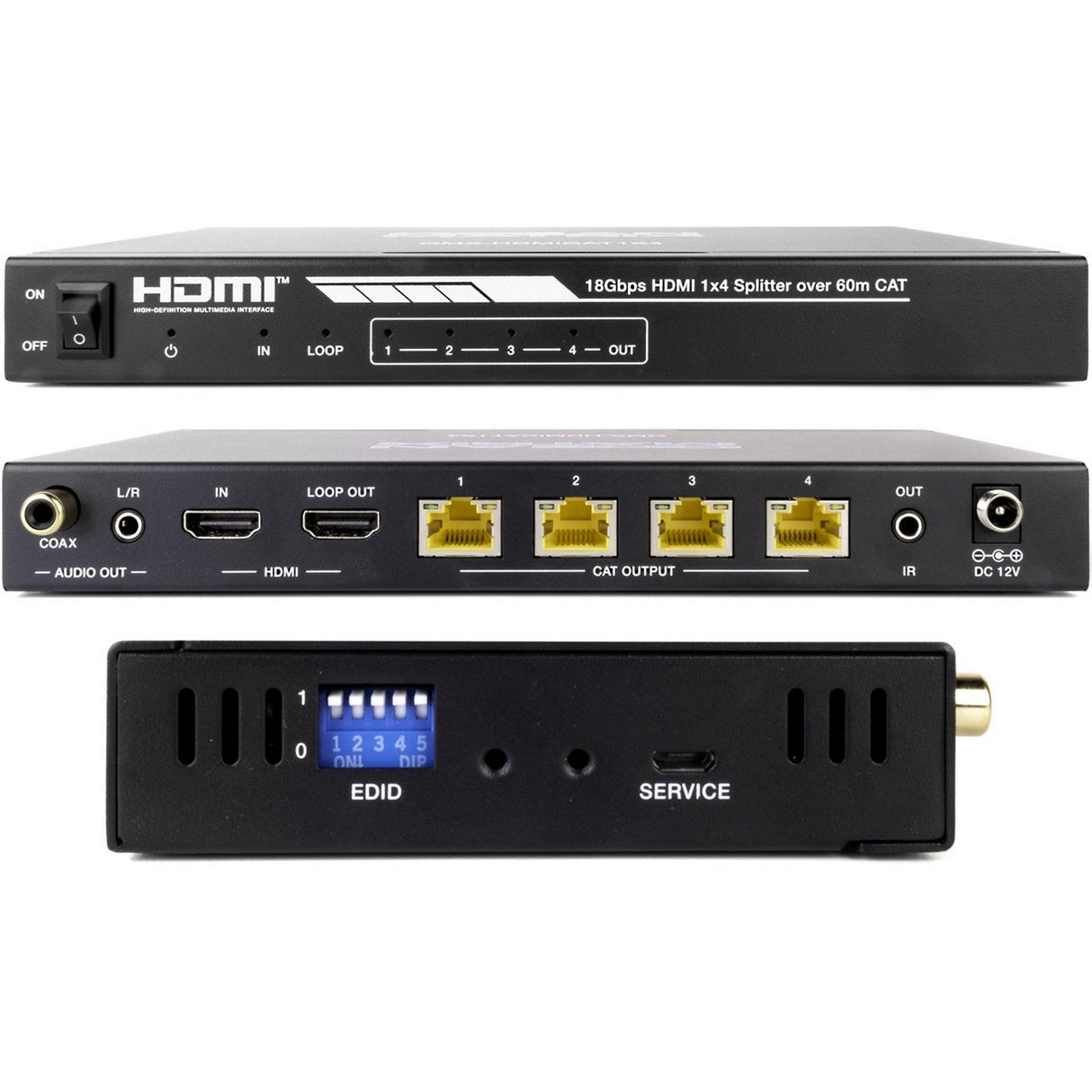

• HDMI Loop Out
• 12V/2.5A DC Locking Power Adapter
• Metal Enclosure

Technical Specifications

HDMI 2.0b, HDCP 2.2 Compliant
Audio Pass-Through up to 7.1CH HD Audio
Supports 3D, HDR, HDR10+, HLG, and Dolby Vision
Supports Digital and Analog Audio De-Embedded Outputs
Video Bandwidth
18Gbps
Power Consumption
25.44W
Power Input
100-240V AC 50/60Hz
Power Output
12/2.5A DC
Dimensions (WxDxH)
TX 8.3 x 3.9 x 1.1 inch / RX 3.5 x 2.4 x 0.7 inch
Weight
TX 1.36 lb / RX 0.34 lb
Item Includes

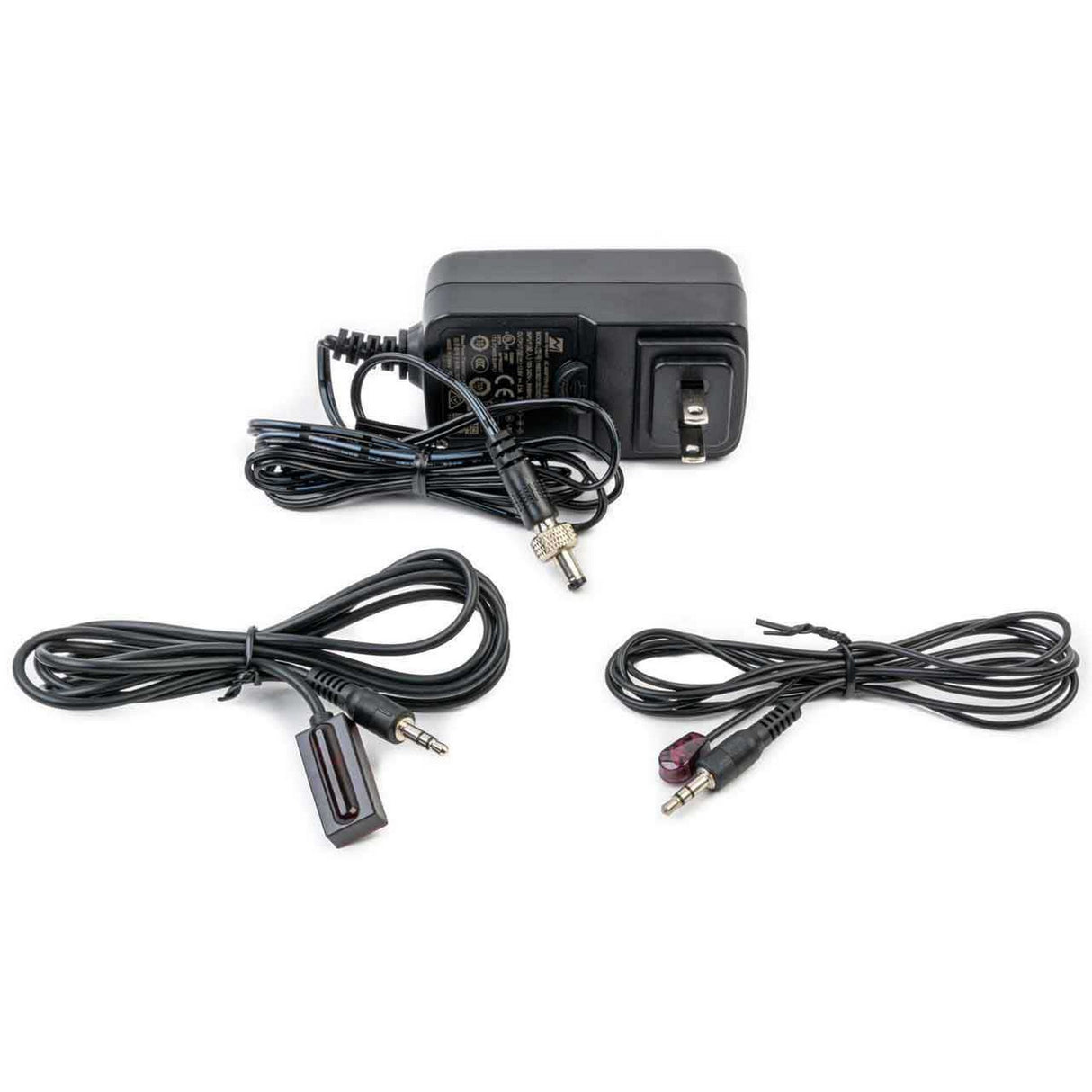

(1) Transmitter, (4) CAT Receivers & (4) 20K-60KHz IR Receiver Cables (4.9ft/1.5m), (1) IR Blaster (4.9ft/1.5m), (1) 12V/2.5A DC Locking Power Adapter for Tx
Warranty
1 Year
