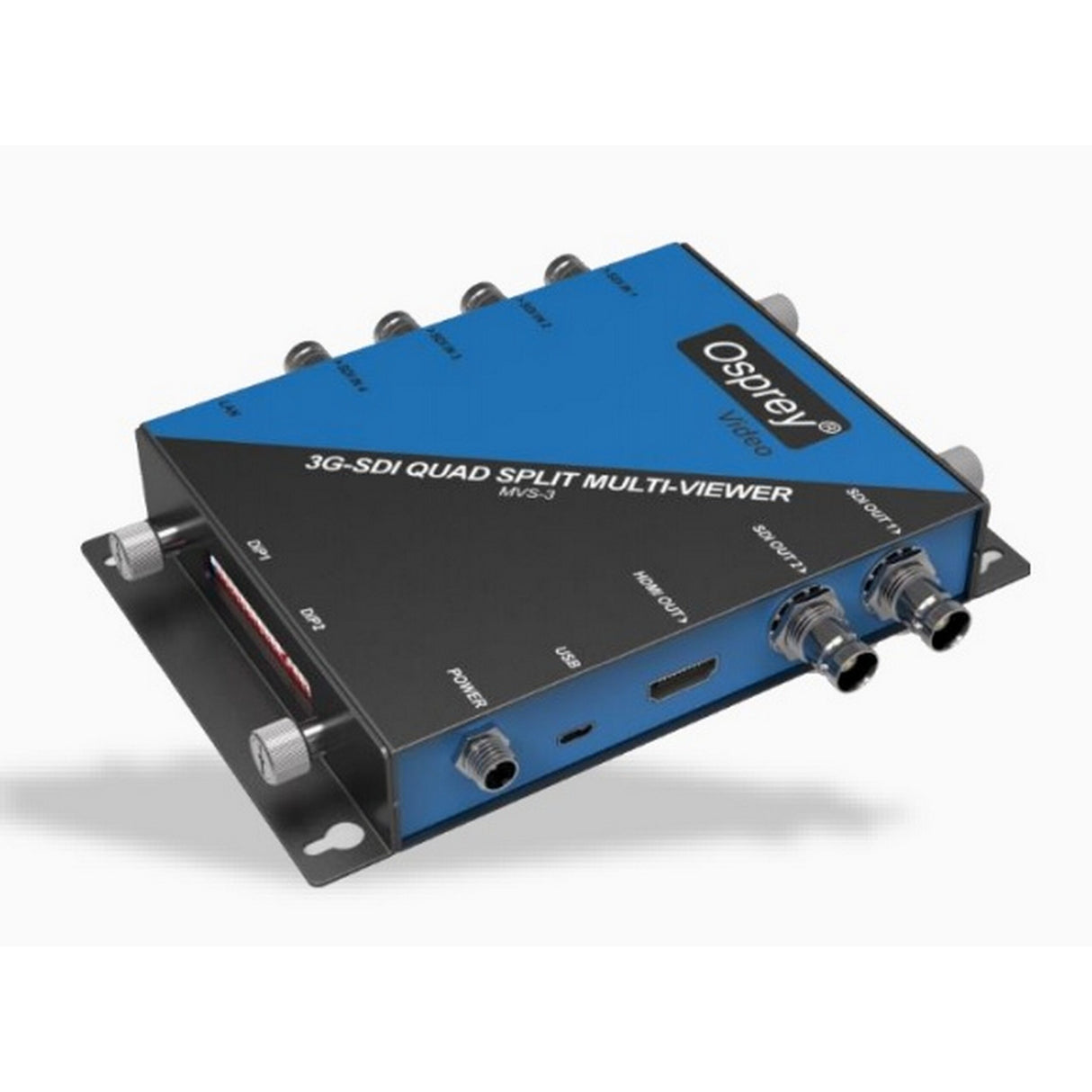

Osprey Video MVS-3 4 Channel 3G-SDI to HDMI and SDI Multi-Viewer Scaling

Osprey Video MVS-3 4 Channel 3G-SDI to HDMI and SDI Multi-Viewer Scaling

One or more inputs can be scaled and directed to the outputs in a variety of layouts. All inputs are resolution and frame rate independent. In addition, audio bars can be overlaid on each channel for quick signal monitoring. Text overlay can be customized for each input and as an additional feature input resolution display can be enabled or disabled. The three parallel Outputs (2x 3G-SDI and 1x HDMI) support Up and Down Scaling and frame rate conversion. MVS-3 can be configured via LAN. It also features external dip-switches for manual configuration.

Key Features

• 4x 3G-SDI to HDMI and SDI MULTI
• VIEWER WITH SCALING AND
• FRAME RATE CONVERSION

Technical Specifications

Input Video Formats SDI
1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920x1080psf 23.98, 24, 25, 29.97, 30
1920x1080i 50, 59.94, 60
1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
PAL
NTSC
Output Video Formats SDI, HDMI
1920x1080p 24, 25, 29.97, 30, 50, 60
1920x1080i 50, 60
1280x720p 25, 30, 50, 60
Color Space and Precision
Inputs: YUV or RGB
Outputs: YUV
Video Inputs
4x 3G-SDI, SMPTE 259/292/424, YCbCr 4:2:2
Video Outputs
HDMI 1.3a
2x 3G-SDI
Size
5”x2.4.1”x0.95” (125.5x104x24.5mm)
Weight
0.7lb (0.30kg)
