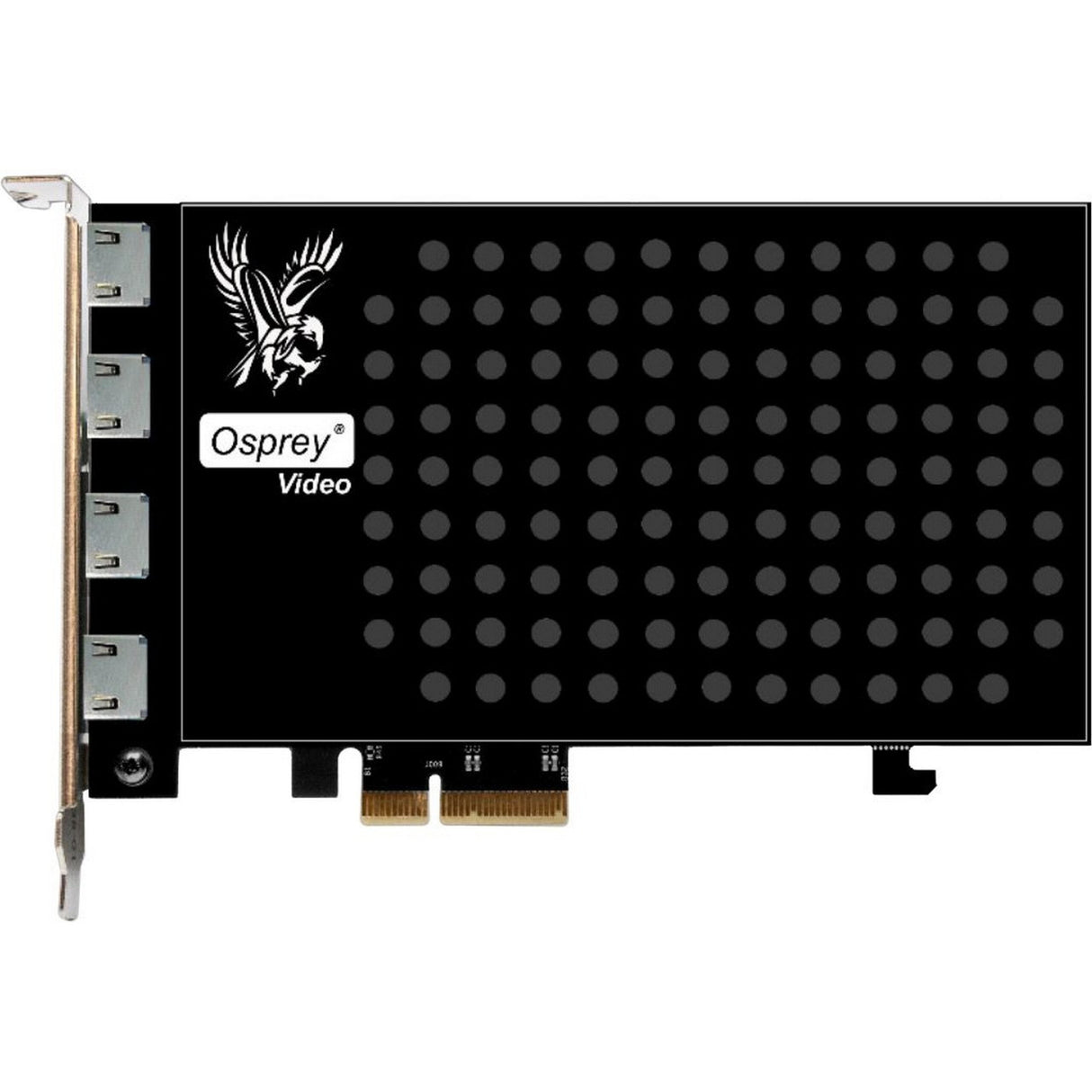

Osprey Video Raptor 944 2 x HDMI 1.4 4K30 / 4 x HDMI 1.3 1080p60 Video Capture Card

Osprey Video Raptor 944 2 x HDMI 1.4 4K30 / 4 x HDMI 1.3 1080p60 Video Capture Card

The 944 is an HDMI 1.4 x 2 and HDMI 1.3 x 2 PCIe video capture card from Osprey Video's new Raptor series of PCIe cards. Osprey Video offers almost limitless solutions from Video Capture Cards to Hardware and Software Encoding and Streaming. Osprey Capture Cards are widely used at the biggest names in Broadcast for its ability to ingest DVB-ASI as well as Closed Captions. All Digital multi input Capture Cards feature fully independent inputs for the ingest of different resolutions and bitrates simultaneous hence eliminating the need for multiple capture cards. Osprey's unmatched reliability makes it the first choice for Government and Military applications from Aerial Vehicles to compound surveillance. Governments around the world rely on Osprey for streaming and recoding of their sessions and meetings. Being fanless on all of our Hardware also makes Osprey the go-to solution for a wide variety of Medical Applications. Houses of Worship and Enterprises around the world rely on Osprey to expand their reach at minimal cost by webcasting their events, meetings, training sessions and services. Osprey carries multiple Capture Cards and Hardware Encoding Solutions that provide multiple digital and analog inputs and are the preferred solution for Educational Institutions to capture and stream classroom sessions for distance learning environments.

Key Features

• HDMI 1.4
• Inputs up to 4k30
• 8 Audio Chanels per Input
• Simulstream
• Medialooks SDK Support
• Independent Scaling and Frame Rate Conversion For each Input

Technical Specifications

Description
Two channels HDMI1.4 (4K30), Two channels HDMI1.3 (1080P60).
PCI Format
PCI Express Gen2 (x 4), Slots
x4, x 8, or x 16
Video Connectors
Full Size HDMI x4 (Type A).
Video Modes
UHD 2160p 23.98, 24, 25, 29.97, 30, 1080i 50, 59.94, 60, 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
, 720p 50, 59.94, 60,
Audio
4 Embedded Stereo Pairs for each HDMI input
Dimensions
6.60" L x 4.38" H (16.76cm L x 11.13cm H).
Weight
182 g
Power Consumption
4.8 W
Temperature Range
0 to 40C Operating Temperature, -40 to 75C Non-Operating Temperature.
