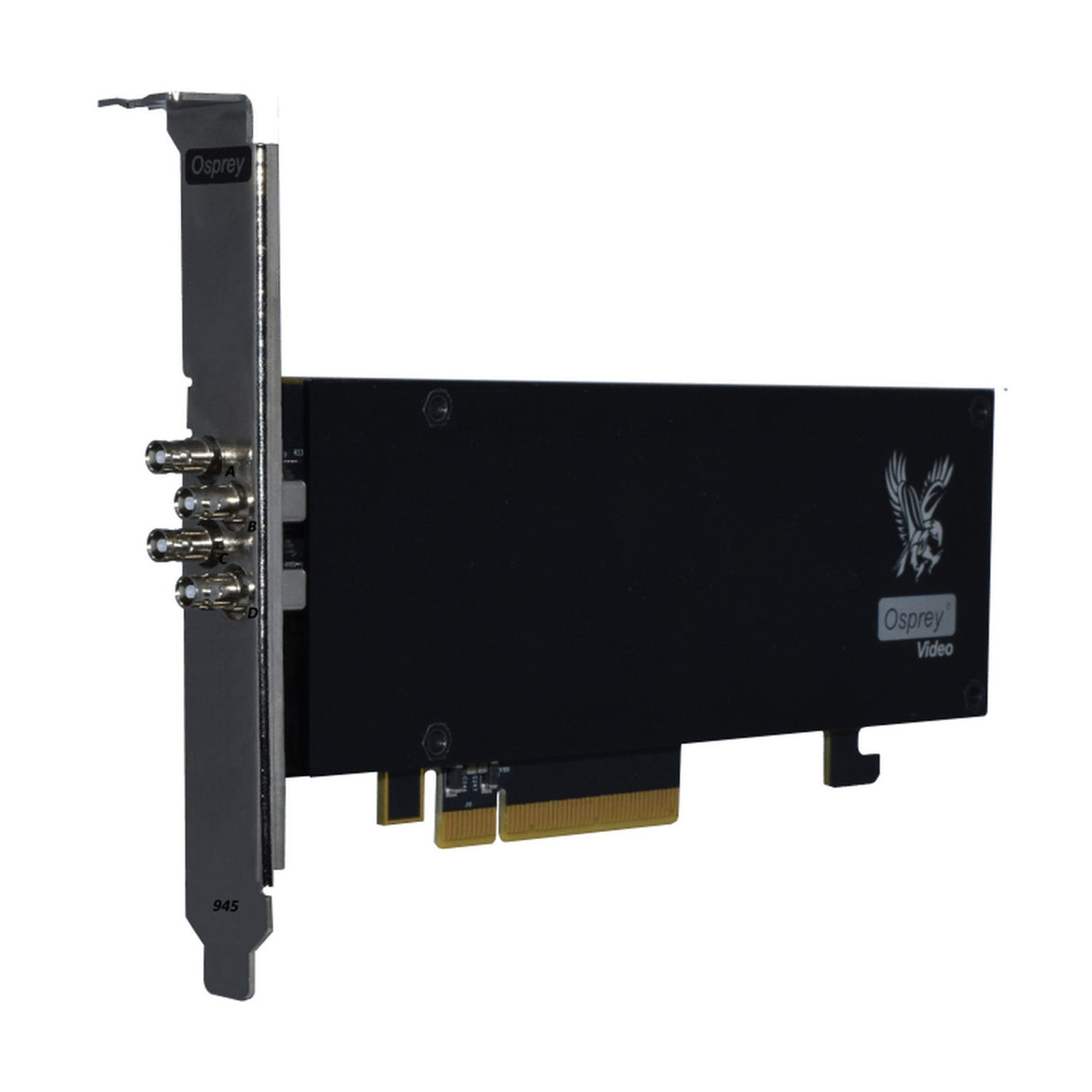

Osprey Video Raptor 945 Quad Channel 3G-SDI
Description
Description
Osprey Video Raptor 945 Quad Channel 3G-SDI
Raptor 945 - Quad Channel 3G-SDI
Technical Specifications
Video Formats
525i59.94 NTSC, 625i50 PAL
720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080psf 23.98, 24, 25, 29.97, 30
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i50, 59.94, 60
SDI Compliance
SMPTE 259/292/296/372/424/425/435 (3G-SDI Level A Only)
SDI Metadata Support
CEA-608, CEA-708 for closed captioning
SDI Input Color Precision
8, 10, 12-bit RGB 4:4:4, YUV 4:4:4 and 4:2:2
Multiple Rate Support
Video Format Auto Detect
SDI Audio Inputs
Embedded 16 Channels (8 Stereo) per connection
Audio Sampling
Television standard sample rate of 48 kHz at 24-bit.
Connections
Video Inputs HD-BNC
PCIe 2.0 x8
Power Consumption
~ 6.85W
Warranty
2 years
3 years for rugged version
Compliance
CE, FCC, RoHs, REACH
In the Box
Capture Card with Full Height Bracket (PCIe only)
Half Height Bracket (PCIe only)
Environmental Specifications
Operating Temperature
0 to 40C
Operating Temperature
Rugged Version 0 to 60C
Non-Operating Temperature
-40 to 75C
Operating Humidity Range
5% to 80% (non-condensing)
Operating Humidity Range
Rugged 5% to 95% (non-condensing)
Operating Altitude Range
0 to 20,000ft
Non-Operating Altitude Range
0 to 50,000ft
