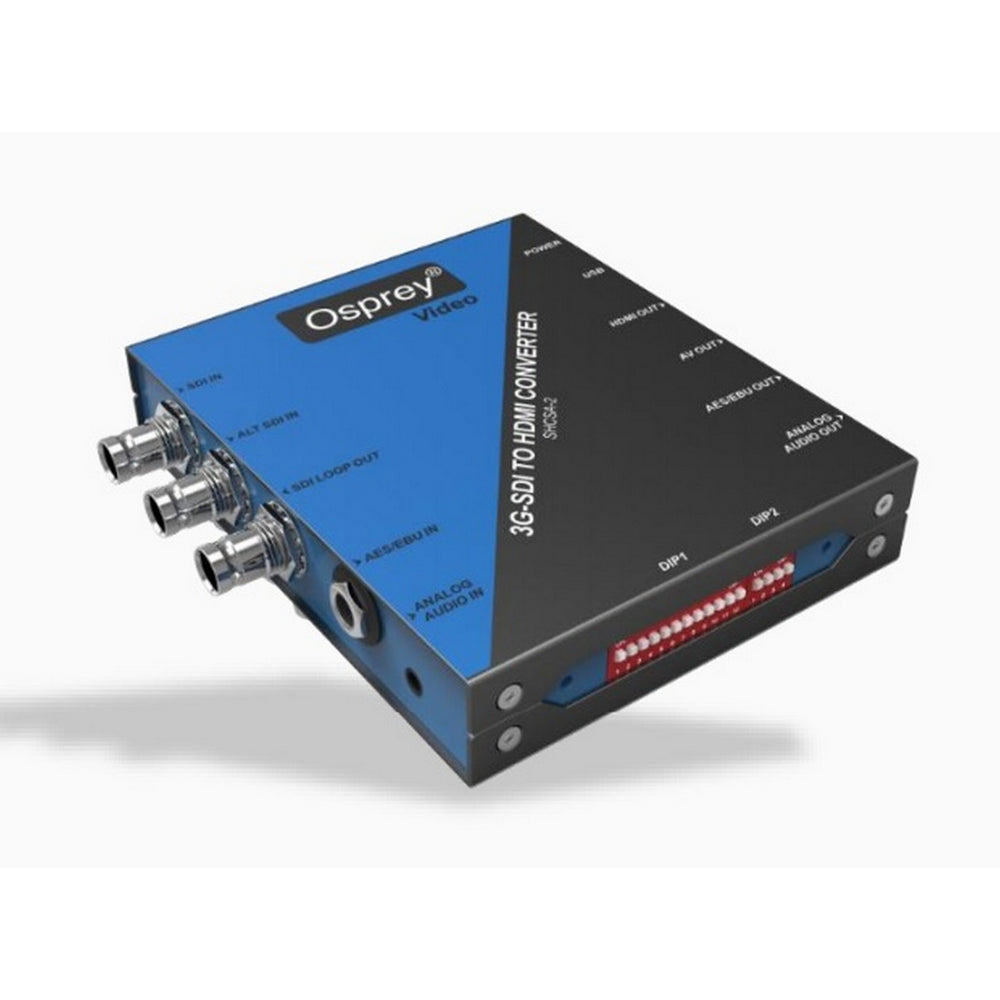

Osprey Video SHCSA-2 Scaling SDI to HDMI Converter
The Scaling Converter Series of products includes these “Swiss Army Knife” converters, an all-in-one solution to your SDI and HDMI needs. Supporting conversion from SDI to HDMI (SHCSA-2) or HDMI to SDI (HSCSA-2) as well as Scaling, Audio, and Color Space options, these unique tools also feature Video Frame Rate Conversion and Up / Down Scaling Options. AES/EBU and Analog Audio can be embedded into the workflow or deembedded for external monitoring. Multiple video output options enable confidence monitoring of the workflow.
Key Features
- 3G-SDI IN, HDMI and CVBS OUT
- AES/EBU and ANALOG AUDIO
- EMBEDDING and DE-EMBEDDING
Technical Specifications
Input Video Formats SDI
1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920x1080psf 23.98, 24, 25, 29.97, 30
1920x1080i 50, 59.94, 60
1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
SD PAL, NTSC
Output Video Formats HDMI
1920x1080p 24, 25, 30, 50, 60
1920x1080i 50, 59.94, 60
1280x720p 24, 25, 30, 50, 59.94, 60
SD PAL, NTSC
Output Video Formats AV
NTSC, PAL
HDMI Color Space and Precision
HDMI: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
SDI: YUV 4:2:2
Video Input
3G-SDI, SMPTE 259/292/424, YCbCr 4:2:2
Alternate 3G-SDI (Failover)
Video Output
HDMI 1.3a
CVBS (Composite)
3G-SDI Loopout (Primary SDI Input Only)
Audio Input
Embedded SDI, Analog Stereo, AES/EBU
Audio Output
Embedded HDMI, Analog Stereo, AES/EBU
Size
5”x2.4”x0.95” (125.5x104x24.5mm)
Weight
0.7lb (0.30kg)
Power
12V 6W max
