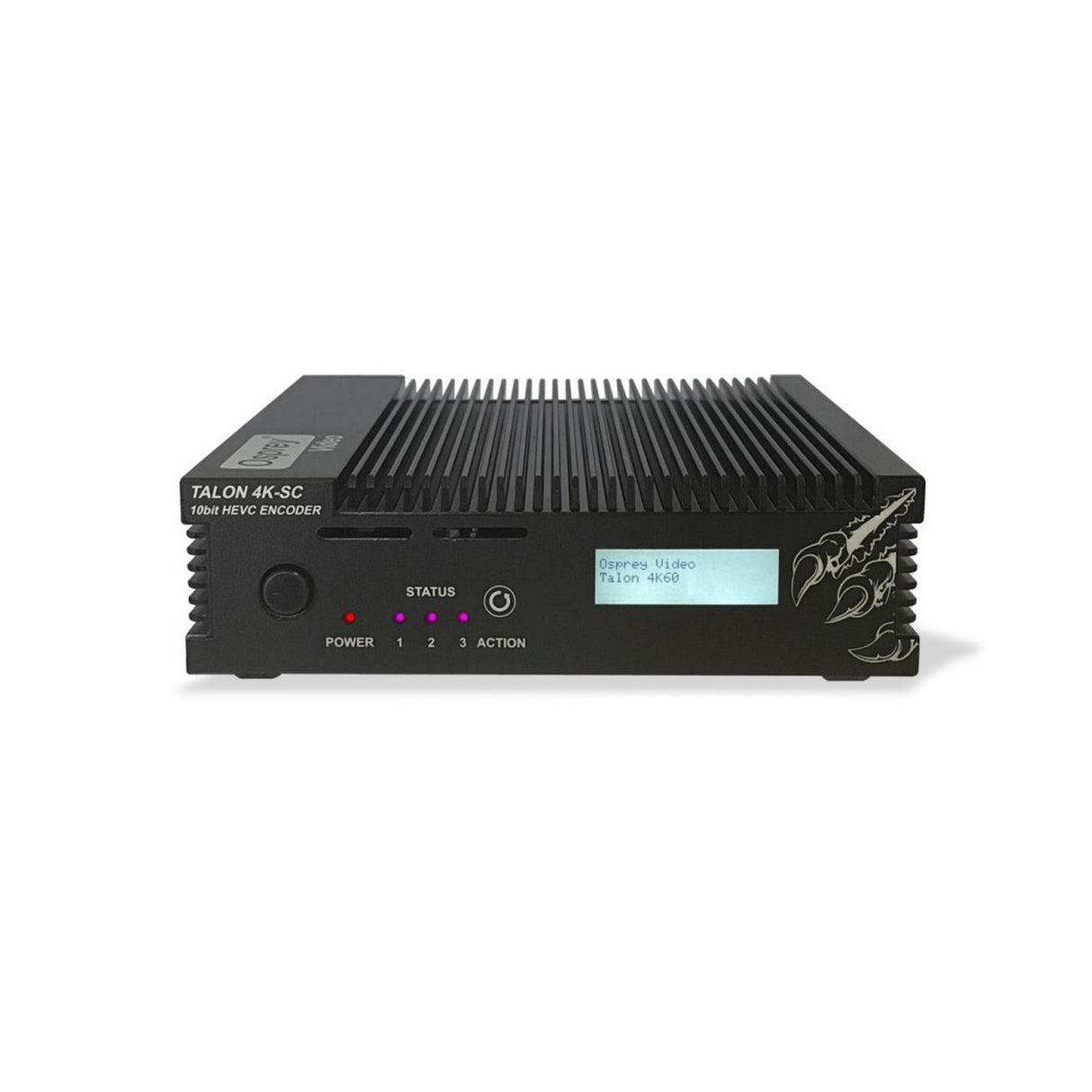

Osprey Video Talon 4K-SC 12G-SDI/HDMI Video Encoder
Description
Description
Osprey Video Talon 4K-SC 12G-SDI/HDMI Video Encoder
Talon 4K 12G-SDI/HDMI Video Encoder
Key Features
- 12G-SDI | HDMI 2.0
- 10-bit 4:2:2
- 4096 x 2160P60
- Status Display
- 16 Audio Channels SDI | 8 Audio Channels HDMI
Technical Specifications
Video Inputs
1x 12G-SDI with Loopout
1x HDMI 2.0 (non-HDCP)
Audio Inputs
Embedded SDI 16Ch (8 stereo pairs)
Embedded HDMI 8Ch (4 stereo pairs)
Video Input Resolution
Up to 4096 x 2160, 60fps
Color Depth
Up to 10bit 4:2:2
Streaming Transports
RTMP, UDP, RTP, Zixi, SRT
Number of output channels - 1
Number of concurrent input channels - 1
Simultaneous streaming and save to file
Saving to MP4 file
Video Processing
Upscale/Downscale, Frame Rate Conversion
Deinterlacing
Video Compression
H.264 (AVC), H.265 (HEVC)
Encoding Controls
Bitrate up to 100Mbps
VBR & CBR
Audio Compression
AAC-LC
OPUS Audio for UDP, RTP, SRT, Zixi
Audio Sample Rate
44.1kHz, 48kHz
Audio Bitrate 64kbps to 512kbps
Video Archiving
USB 3.0
Network storage
Software Features
Enhanced security features
Remote firmware upgrade from web
Network time protocol
JSON REST API for software integration
Password protected
Embedded closed caption support
SMPTE 2038 support
Hardware Features
Fanless operation
Locking Power Jack
Status Display
Status LED's
GigE Ethernet connection
Optional Enterprise Features
Customizable notice and consent banner
Secure HTTPS (SSL) web-based management
Open VPN Client
Whitelist/Firewall for Management IP Access
KLV support for in-band SDI and out-of-band RTP IP
Add-on Option
1U Rackmount kit with active cooling for up to 3 Encoders
In the Box
Encoder
Power Supply
Mounting Brackets
Mechanical
5.5 x 5.5 x 1.5”
Operating Temperature
0C to 40C
Power
12V | 24W max
