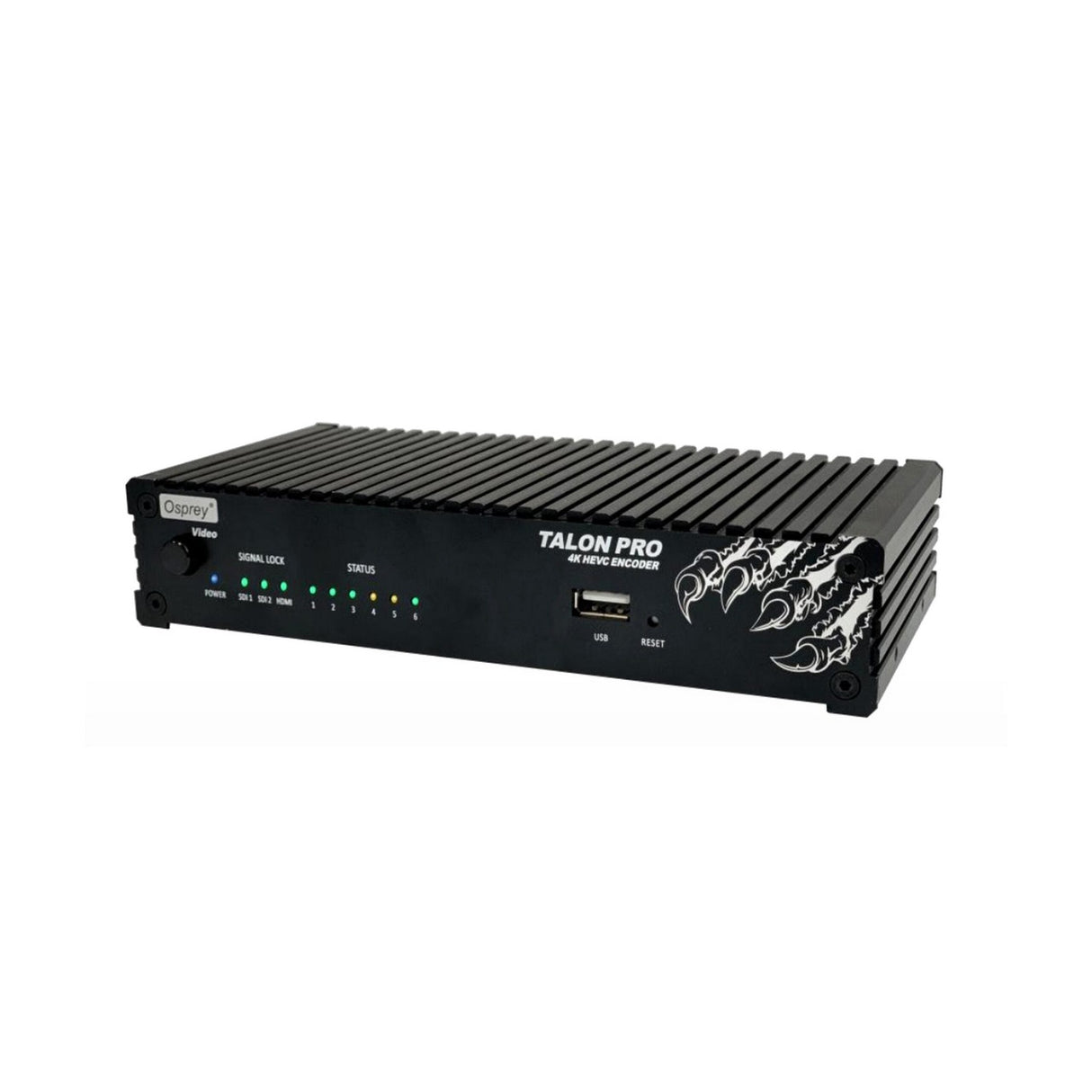

Osprey Video Talon Pro 4K H.265/H.264 Encoder
Description
Description
Osprey Video Talon Pro 4K H.265/H.264 Encoder
4K H.265 / H.264 Encoder
Key Features
- H.265 / H.264 Encoding
- Three Encoding Channels
- Redundant Power Inputs
- Small Fanless Form Factor
- 2x 3G-SDI, 1x 4K30 HDMI 1.4
- Unbalanced Stereo Audio Input
- RTMP(S), RTP, RTSP, TSRTP and UDP
- CEA608 and CEA708 Closed Captions
- Six Configurable Dual Color Status LED’s
- USB and Network Drive for .MP4 or .TS Format Video Archiving
- Web-Based / Wireless Configuration and Video Monitoring
- HDMI Output for true Post-Processing Monitoring of any Input
- Included Mounting Features - Desktop, Wall Brackets, ¼” Camera Mount
Technical Specifications
Video Inputs
2 x 3G/HD/SD-SDI with Loopouts
1 x HDMI 1.4 UHD
Audio Inputs
2 x Embedded SDI (4 Stereo Pairs each)
1 x Embedded HDMI (4 Stereo Pairs)
1 x Analog unbalanced stereo
Video Input Resolution
Up to 3840x2160 (UHD) 30fps on HDMI
Up to 1920x1080 60fps on SDI
HDMI Output
Selectable preview of any input
Streaming Transports
RTMP, UDP, RTP, RTSP, SRT, Zixi,
Saving to MP4 and TS file
CDN integrations
Video Processing
Upscale/Downscale, Frame rate
Conversion, Deinterlacing, Text Overlay,
Region of Interest, Image Rotation
Video Compression
H.264 (AVC), H.265 (HEVC), MJPEG
Encoding Controls
Maximum 100MbIt's Output Bitrate
Frame rate Full, Half, Quarter and Sixth
Low Latency option <55ms
Closed Captions
Re-embeds existing CEA608/708 captions
Audio Compression
AAC-LC, AAC-HE, AAC-HEv2
Audio Sample Rate
32kHz, 44.1kHz, 48kHz
Audio Bitrate 12Kbps to 384Kbps
Storage
Network Drive
USB drive
Power
9.0 ~ 15.4VDC | 7W
Redundant power connections
