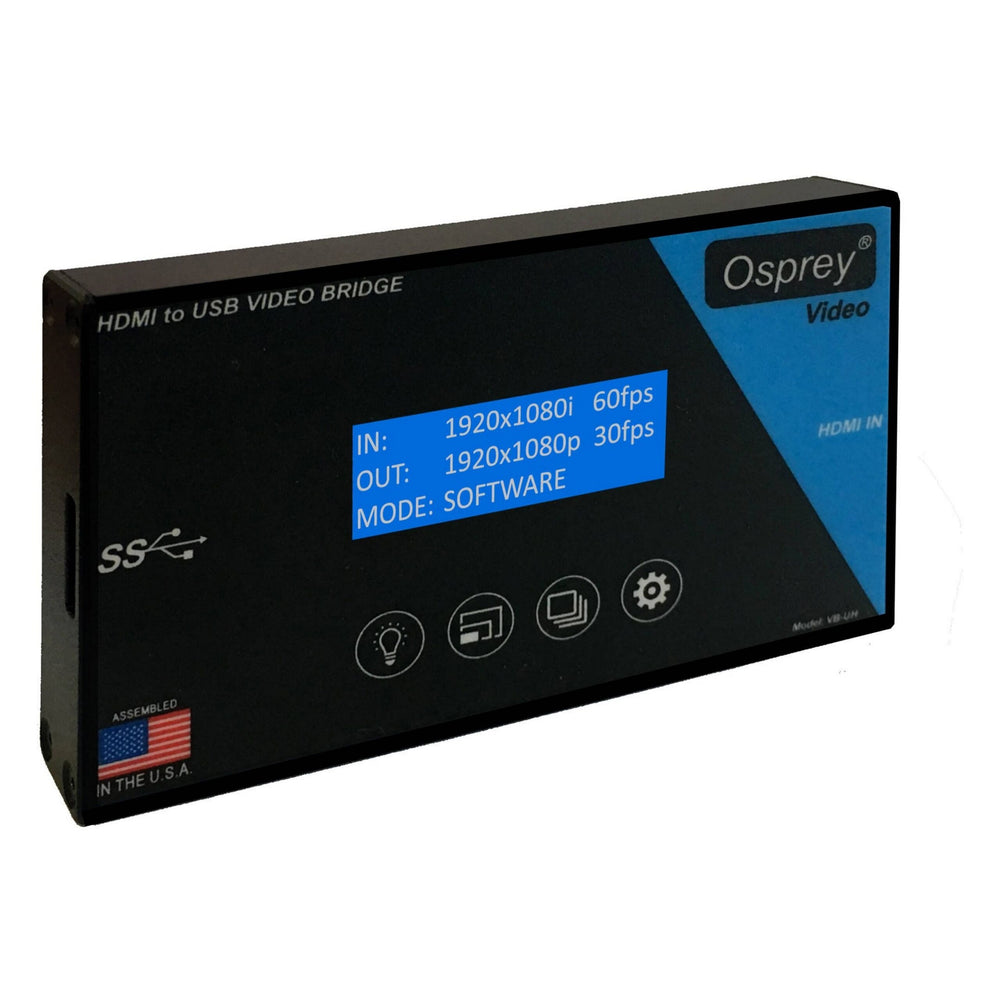

Osprey Video VB-UH HDMI to USB 3.0 Video Capture Device
Description
Description
Osprey Video VB-UH HDMI to USB 3.0 Video Capture Device
The VB-UH USB Video Bridge capture device series includes 3G-SDI and HDMI models providing wide-ranging adaptability for complex workflows. Connecting directly to your computer's USB 3.0 port, the Video Bridge is true plug-and-play, requiring no drivers in Windows, Linux, or Mac OS X. Two control scenarios support varying user requirements. Software control mode passes all available rates and resolutions to the capture software. Manual mode allows the pre-selection of a frame rate and resolution, allowing the user to control the load delivered to the USB bus.
Technical Specifications
Video Formats Out (YUV 422)
Frame rates 24, 25, 30, 50, 60
Resolution
1920x1080; 1680x1050; 1440x900; 1360x768; 1280x1024; 1280x800; 1280x768; 1280x720; 1024x768; 1024x576; 960x540; 856x480; 800x600; 768x576; 720x576; 720x480; 640x480; 640x360
Video Input
HDMI 1.3a RGB 4:4:4
Audio Input
2-Channel HDMI Embedded Audio, 48kHz Sample Rate
Interfaces
Full Size HDMI; Micro B USB3.0 UVC/UAC Compliant
Size
4" x 2.4" x 0.65"
Weight
0.25lb (0.17kg)
Power
5V USB Powered; 4.5W max
