Panasonic  |  SKU: PSONC-AWUE50KPJ

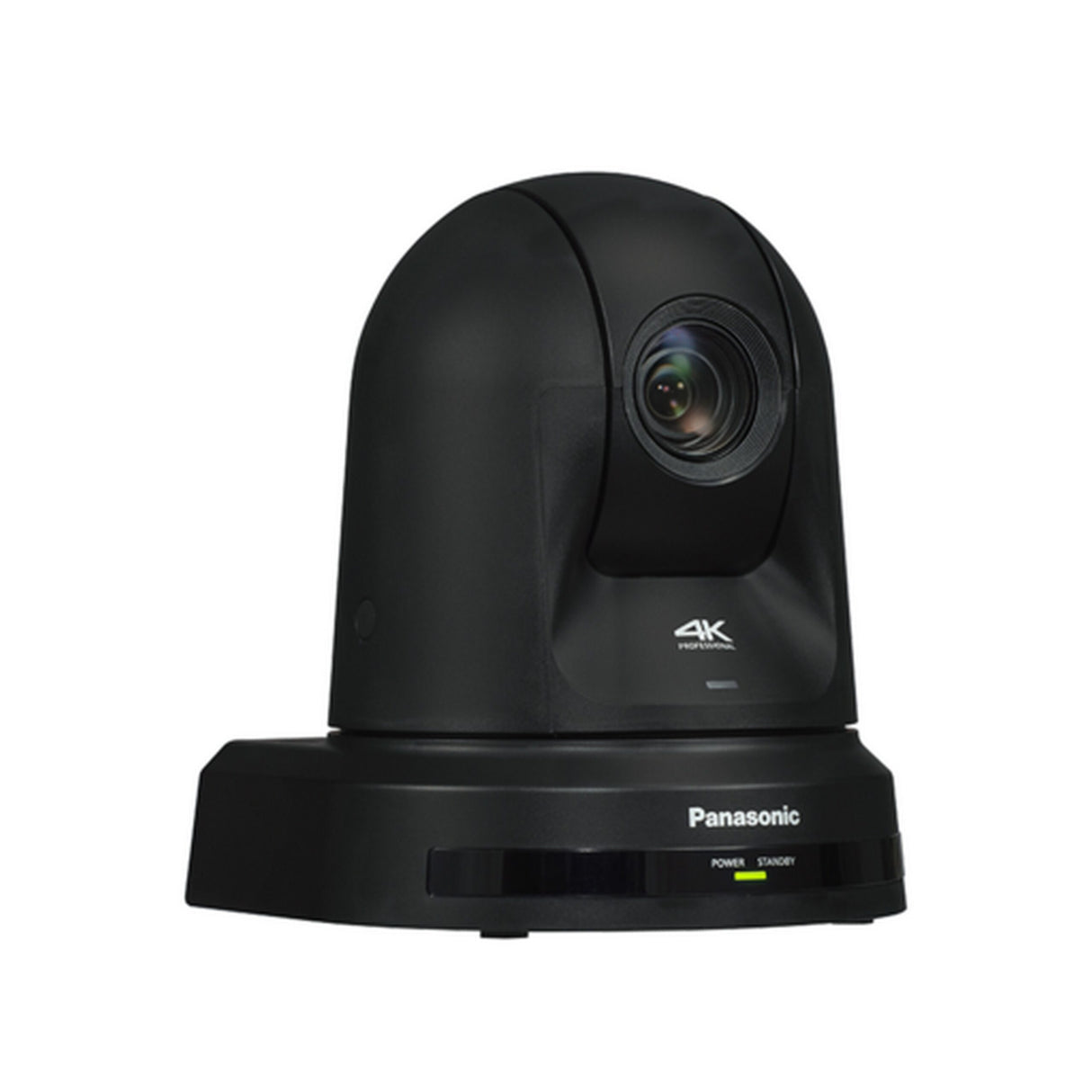

Panasonic AW-UE50 Black SDI/HDMI PTZ Camera, 24x Optical Zoom

$3,61500
🚚 Order within the next 2 hours, 15 minutes for delivery by 11 May, 2024.

Condition: New

Description

Panasonic AW-UE50 Black SDI/HDMI PTZ Camera, 24x Optical Zoom

The Panasonic AW-UE50 Black SDI/HDMI PTZ Camera is an exceptional addition to any tech-forward space, impeccably designed for attuned network video applications. Within its compact layout, it holds the power of a PTZ camera along with peak technological features that are profoundly incorporated to heighten its service delivery.

This state-of-the-art PTZ camera comes equipped with 4K 25/30p and 24x Optical Zoom, securing higher quality visuals from afar. You gain clear, ultra-HD images and videos at stellar resolutions. This feature enables you to cover wider angles and detailed images with precision, giving you full control over your video and image capturing.

The Panasonic AW-UE50 camera encompasses an innovative Direct Drive System that remarkably enhances responsiveness while maintaining subtlety in operation. This tailor-made development promotes swiftly smooth movements and pin-point precision, thereby leading to better camera control, an essential for professional usage.

Key Features

  • 4K 25/30p and 24x Optical Zoom - for superior image quality and wider angle coverage.
  • New Direct Drive System - for improved responsiveness and operational silence.
  • Supports NDI|HX version 2 - delivering high-efficiency, low-latency transmission.
  • Supports SRT*1 protocol - for secure, resilient broadcasting over unpredictable networks.

Technical Specifications

LENS
Motorized Optical 24x zoom, F1.8 to F4.0
General
MINIMUM ILLUMINATION
3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
Zoom
Optical zoom: 24x
i.Zoom UHD 28x, FHD 36x
Digital extender zooms: 1.4 x, 2 x
Horizontal Resolution
UHD: 1,500 Typ (Center area) FHD: 1,000 Typ (Center area)
Gain Selection
Auto, 0 dB to 36 dB*3 (Super Gain function equipped: 37 dB to 42 dB)
WHITE BALANCE
ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)
AWB: AWB-A / AWB-B
VAR (selectable between 2000 K and 15000 K by designating a value)
Storage Temperature
-20 °C to 50 °C (-4 °F to 122 °F)
Current consumption
1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply)
Power Requirements
12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
Color separation optical system
1MOS
Focus
Switching between auto and manual
Focus Distance
Entire zooming range: 1200 mm (3.9 ft) Wide end: 100 mm (0.33 ft)
Gamma HD / Normal / Cinema1 / Cinema2 / Still Like
Input Connector
DC 12 V IN
Pan/Tilt Operation Speed
Speed range: 0.08°/s to 60°/s (Normal mode) *7
3 speed modes installedNormal:60°/s, Fast1:90°/s, Fast2:180°/s
Quietness
NC25 or less
Tilting Range
-30°to 90°*8
Imaging Sensors
1/2.5-type 4K MOS x1
Frame Mix
Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
Chroma Amount Variability
OFF, -99 ％ to 99 %
Ambient Operating Humidity
20 ％ to 90 ％ (no condensation)
Finish
AW-UE50W: WhiteAW-UE50K: Black
Image Resolution
1920x1080, 1280x720, 640x360, 320x180
Note
*1:Discontinued Model*2:Will be supported in the future*3:Can be set in 1 dB step increments.*4:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.*5:STP (Shielded Twisted Pair) is recommended.*6:To ensure safety, the unit must be secured using the mount bracket supplied.*7:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode. *8: The main unit may appear in the video depending on the pan/tilt position. *9: Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support. *10: NDI is a new protocol developed by NewTek, Inc. that supports IP video production workflow. *11: NDI is a registered trademark of NewTek, Inc. in the United States. *12: In this instance, NDI is used to indicate low latency with high bandwidth NDI, NDI|HX is used to indicate high efficiency low bandwidth NDI|HX. In the NDI|HX mode, 4K video signals cannot be output. AW-UE50/AW-UE40 supports NDI|HX version 2 and Full HD output. *13: For details, please contact a sales representative of Panasonic. To use NDI|HX, the driver must be installed and activated. *14: Non-synchronous with SDI-OUT
Panning range
±175°
Mass
Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket) Approx. 2.05 kg (4.51 lbs) (including ceiling mounting bracket)
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*6
Controller Supported
AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1,2, AK-HRP1005*1,2, AK-HRP1015*2, AK-HRP250*2
Ambient Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Dimensions (W x H x D) (mm)
160.0 mm x 192.1 mm x 166.0 mm (Excluding protrusions, cable cover, ceiling mounting bracket)
Dimensions (W x H x D) (inch)
6.299 inches x 7.563 inches x 6.535 inches (Excluding protrusions, cable cover, ceiling mounting bracket)
Conversion Lens
Not supported
Angle of View Range
Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Image Streaming Mode
JPEG (MJPEG), H.264, H.265, NDI|HX version 2*10,11,12,13 (H.264)
Image Transmission setting (JPEG)
Frame rate: Maximum 30fpsImage quality (Fine / Normal)
Image Transmission Setting (H.264)
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, best effort
Frame Rate: <60 Hz> 5fps / 15fps / 30fps / 60fps, <50 Hz> 5fps / 12.5fps / 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Image Transmission Setting (H.265)
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, best effort
Frame Rate: <60 Hz> 30fps / 60fps, <50 Hz> 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Audio Compression Type
AAC-LC, 48 kHz / 16 bit / 2ch
Tally LED display color
red / green
PoE+
IEEE802.3at compliant: DC42 to 57 V (Camera Input) (Software authentication (LLDP) is supported)
NDI Support
NDI|HX version 2: Upgradable
Mic/line input
AAC compatibility (compatible with IP only)
3.5 mm stereo mini jack
During MIC input
Input level
-40 dBV (0 dB=1 V/Pa, 1 kHz)
Supply voltage
2.5 V±0.5 V (plug-in power compatible)
Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)
Approx. 20 kΩ (when plug-in power is turned OFF)
During LINE input
Input level: -10 dBV
Input impedance: Approx. 3 kΩ
Input volume variable range: -36 dB to 12 dB (3 dB step)
Embedded audio output level: -12 dBFS
Sampling frequency: 48 kHz
IP connecting cable
If you have a PoE+ ethernet hub
LAN cable*5 (category 5e or above, straight cable) Max 100 m (328 ft)
If you don't have a PoE+ ethernet hub
LAN cable*5 (category 5e or above, straight cable) Max 100 m (328 ft)
AW protocol connecting cable
LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft)
Electronic Shutter Speed | 59.94p/59.94i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 29.97p
1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 50p/50i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 25p
1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Input/Output Connector | LAN
LAN terminal for IP control (RJ-45)
Input/Output Connector | RS-422
CONTROL IN RS422A (RJ-45)
Windows
Windows 10
Windows Internet Explorer 11 (32 bit / 64 bit)
Microsoft Edge
Google Chrome
Mac
Mac OS v11.0.1 / Safari 14.01
Mac OS v11.0.1 / Google Chrome
Mac OS v10.15 / Google Chrome
Mac OS v10.14 / Google Chrome
Android
Android OS
Google Chrome
Video Output | HDMI
HDMI 1.4 connector, 4:2:2/10bit
HDCP is not supported.
Viera Link is not supported.
Electronic Shutter Speed | 23.98p/24p
1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan | 59.94p/59.94i
60.0 Hz to 7200 Hz
Synchro Scan | 29.97p
30.0 Hz to 7200 Hz
Synchro Scan | 23.98p/24p
24.0 Hz to 7200 Hz
Synchro Scan | 50p/50i
50.0 Hz to 7200 Hz
Synchro Scan | 25p
25.0 Hz to 7200 Hz
Output Format | SDI | HD
1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),
23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just),
23.98p (Native), 720/59.94p, 50p
Output Format | HDMI | 4K
2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native)
Output Format | HDMI | HD
1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),
23.98p (over59.94i), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Video Output | 3G-SDI OUT
SMPTE292M, 424M/ 75 Ω (BNCx1)
Level-A/Level-B supported
iPhone / iPad
iOS
Safari
iPadOS
Image Stabilization
OIS 2-axis
MENU switching: Select between Off/O.I.S.
Supported protocol | IPv4
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT
Supported protocol | IPv6
TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT
Supported operating systems and web browsers
*9
Image Resolution | NDI|HX version 2
1920x1080, 1280x720
Audio Compression Type | NDI|HX version 2
AAC-LC, 48 kHz, 16 bit, 2 ch
F-Number Display
Displayed on the AW-RP150GJ and AW-RP60GJ sides
Menu Display on IP Video
Supported*14
Power LED
ON/OFF control
Tripod Screw Penetration Measures
Possible
Pan/Tilt Mechanical Method
New Direct Drive System
Privacy Mode
The lens surface faces backward when standing by (ON/OFF)
* Default is OFF
Image Transmission Setting (NDI|HX version 2)
Transmission Type: Streaming method: TCP/UDP, Unicast/Multicast
