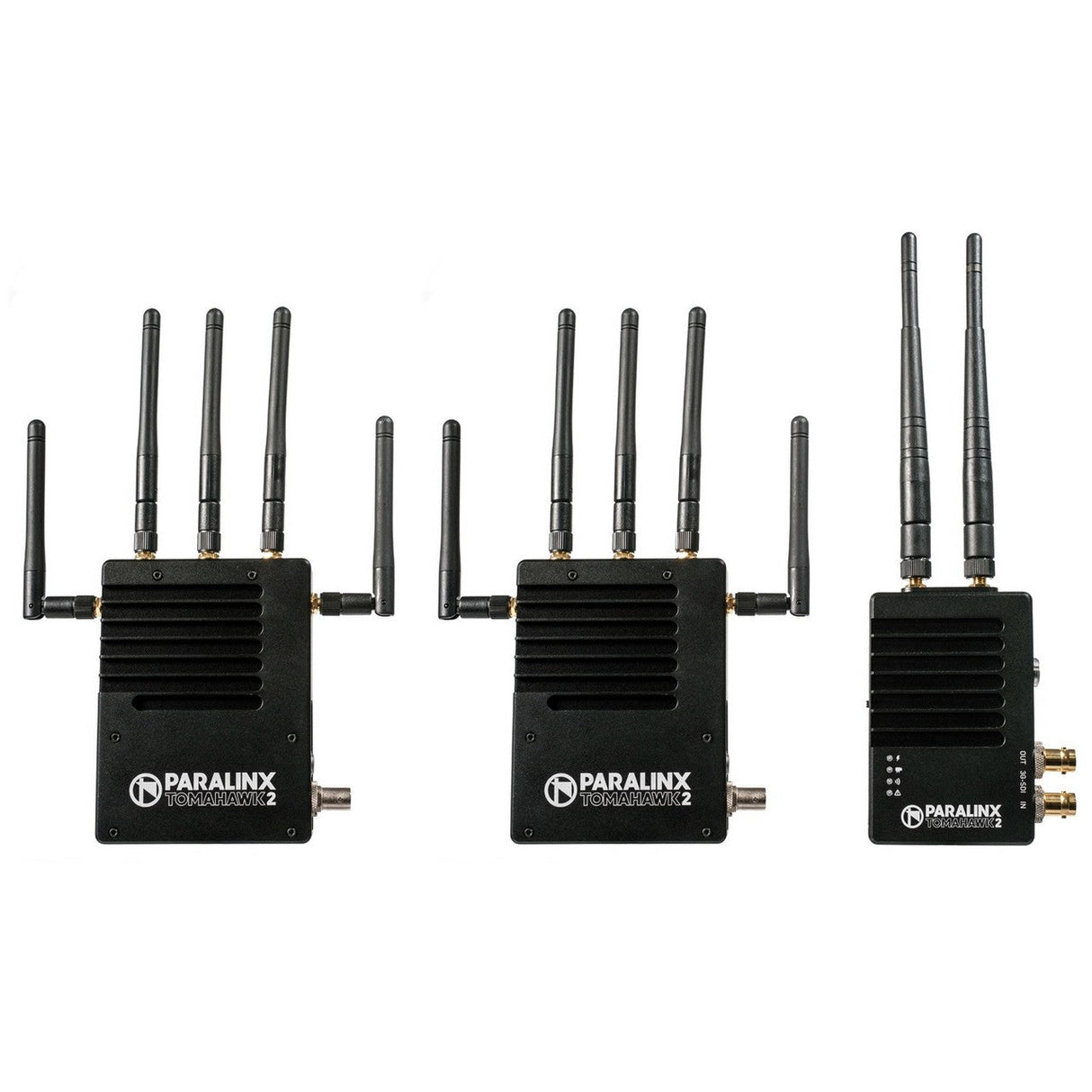

Paralinx Tomahawk2 | 1:2 SDI HDMI Wireless Monitoring Dual Receiver Video System

Paralinx Tomahawk2 1:2 SDI HDMI Wireless Monitoring Dual Receiver Video System

The Paralinx Tomahawk2 is a long-range HD video system offering real-time wireless HD transmission for your Television, Film, Broadcast, Industrial or UAV/UAS application.

Key Features

• 1:2 Kit
• Dual-Input Transmitter (HD-SDI & HDMI)
• Receiver is lighter and 60% smaller
• Input voltage range is now 6-28V on Transmitter
• Machined-aluminum Receiver enclosure improves durability
• Integrated 1/4-20 & 4-40 mounting points on Tx/Rx
• Compatible with Teradek Bolt 2000 (2nd Gen) and Teradek Bolt Sidekick (1st Gen)
• Compatible with Paralinx Tomahawk (1st Gen)*
• Manual Channel Selection & Pairing Interface using new on-screen menu interface
• All Transmitter+Receiver sets include custom case

Technical Specifications

1:2 Kits include
1x Tomahawk2 SDI/HDMI transmitter
2x Tomahawk2 SDI receivers
2x PTap to 2-pin power cable (18in/45cm)
1x AC power supply with 2-pin connector
2x 18in BNC Cable (right-angle to right-angle)
1x HDMI Cable (18in/45cm)
2x 5dbi omnidirectional antennas (for transmitter)
10x 2dbi omnidirectional antennas (for receivers)
1x Mini-USB to USB cable (for firmware updates)
1x Custom Case with rugged foam (Pelican 1400)
Dimensions (Rx)
4.6in x 3.5in x 0.9in (not including antennas/connectors)
Dimensions (Rx)
117mm x 88mm x 22mm
Weight (Rx)
8.9oz / 252g (without antennas)
