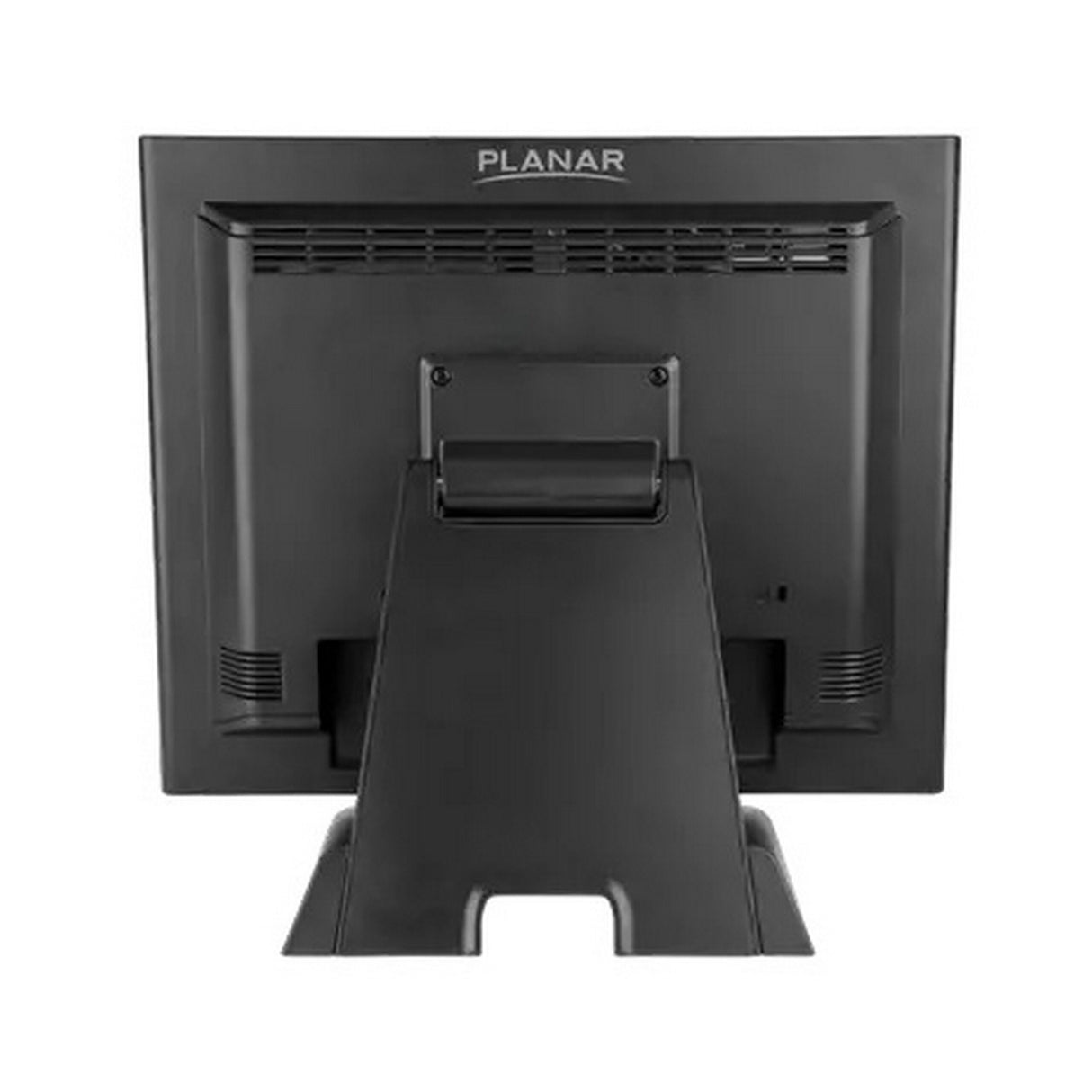

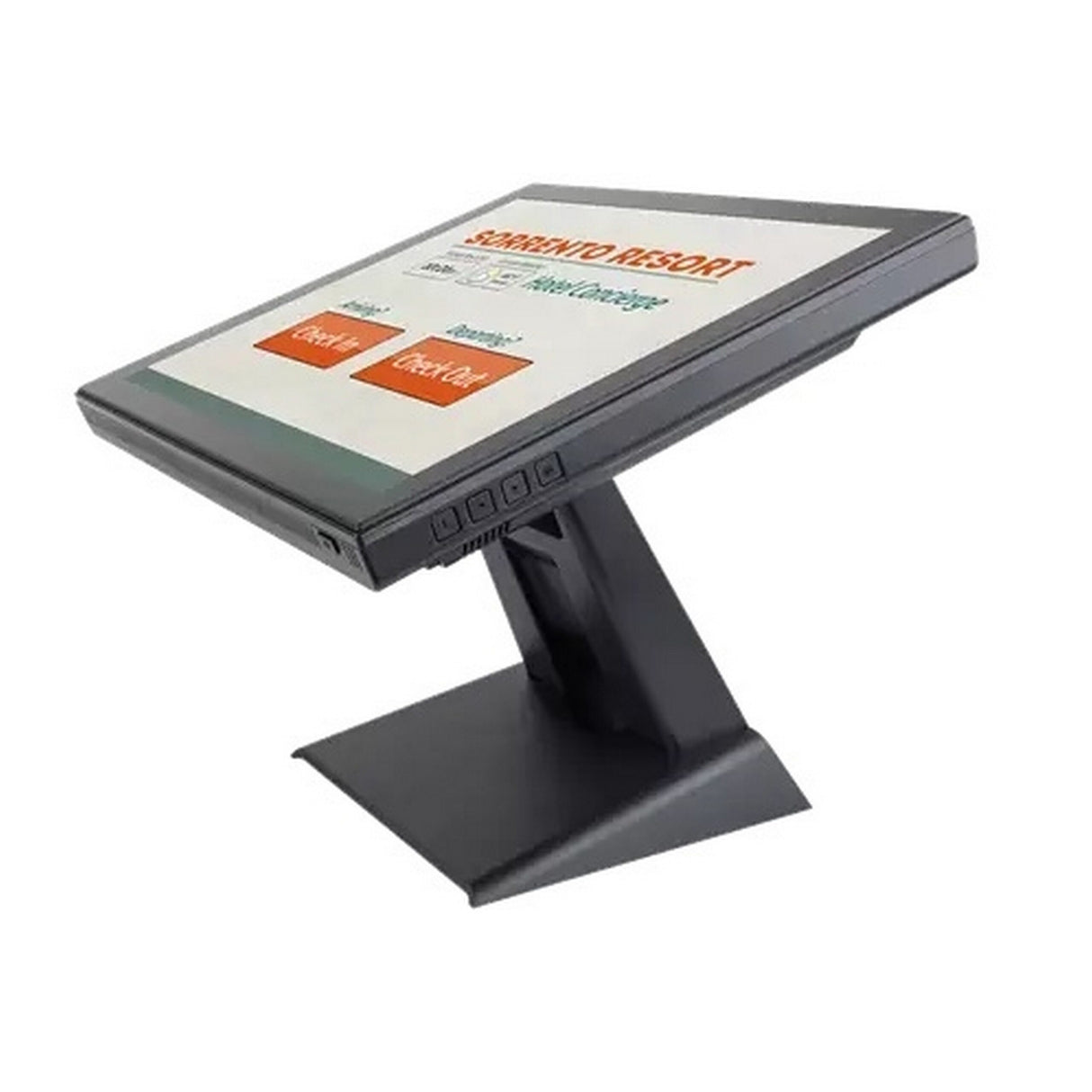

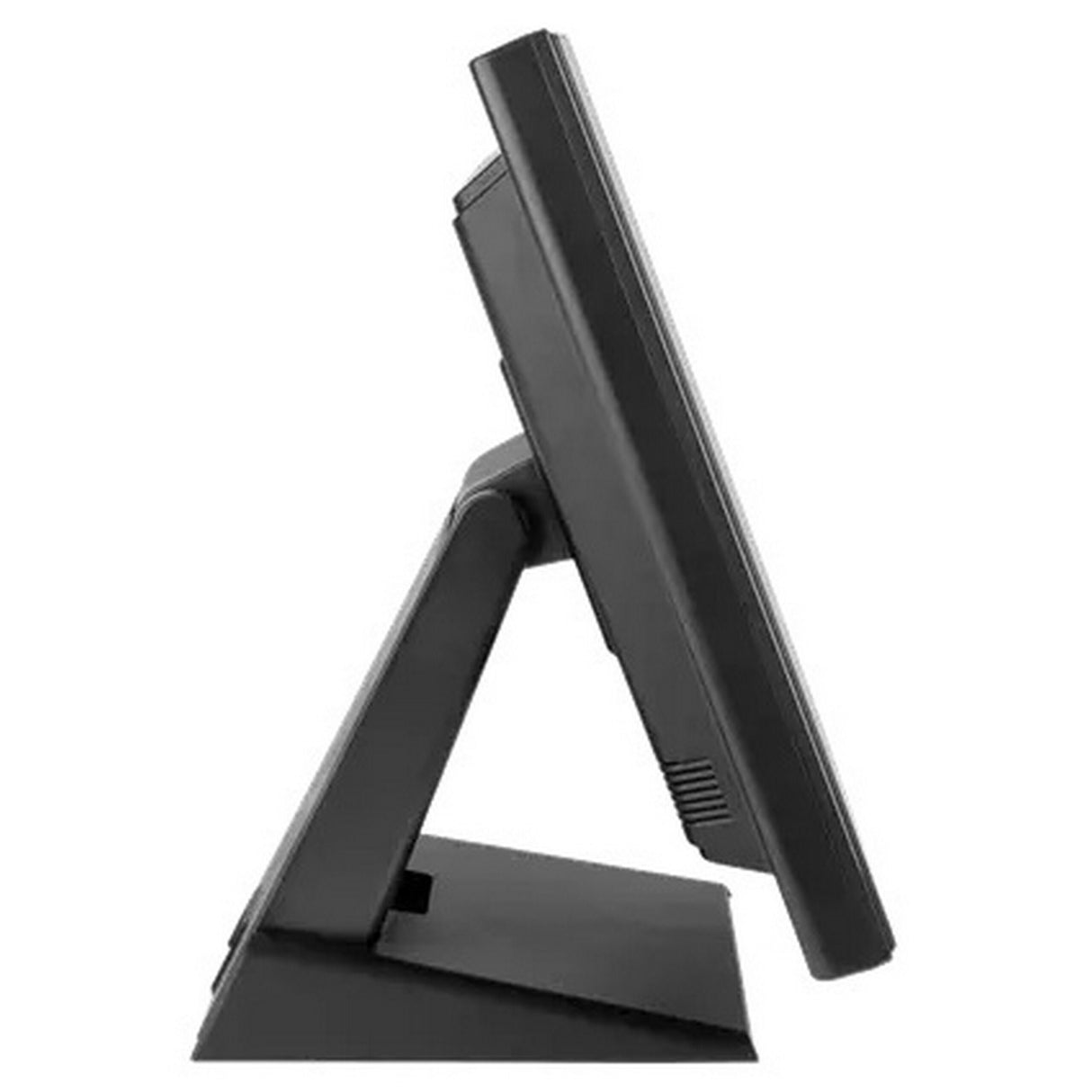

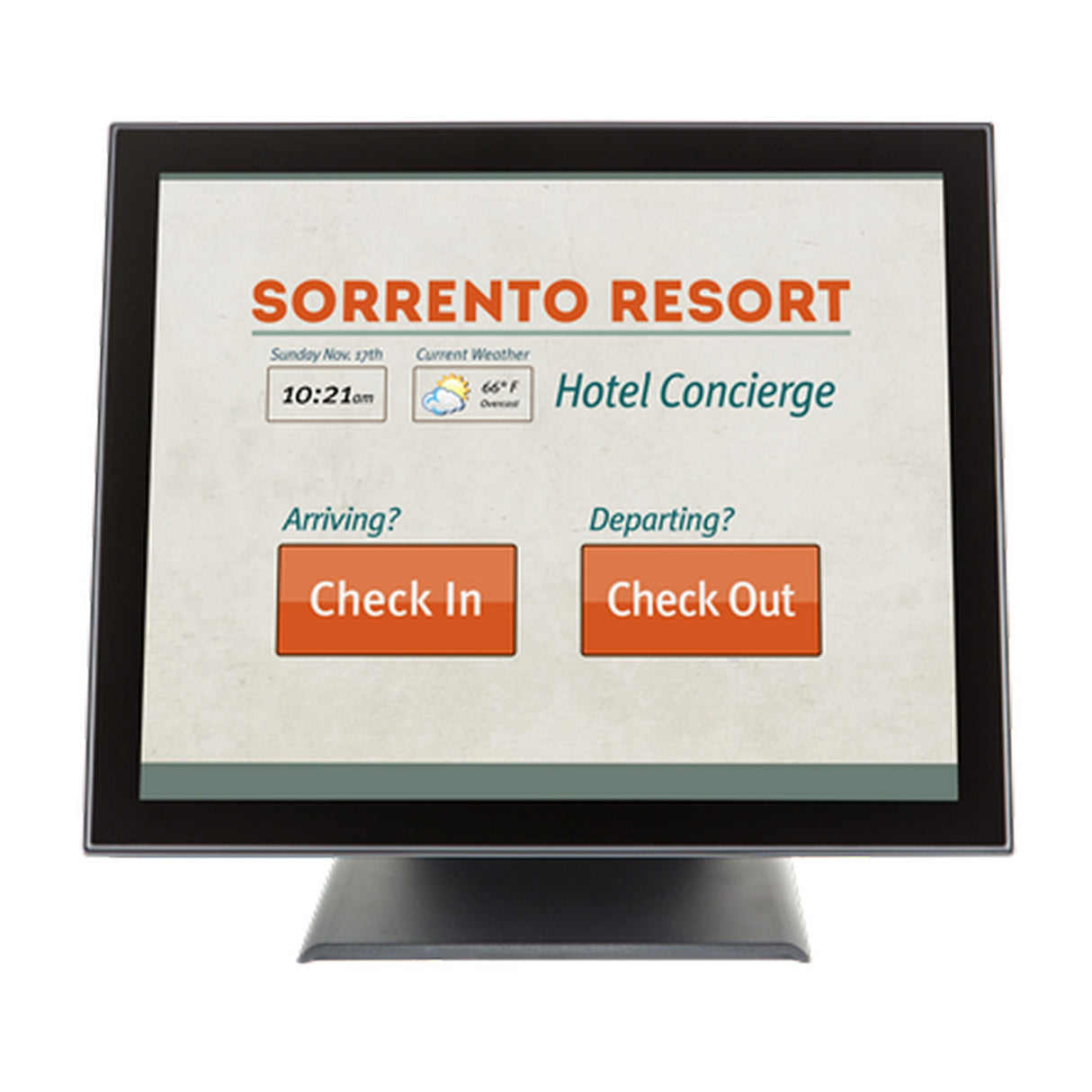

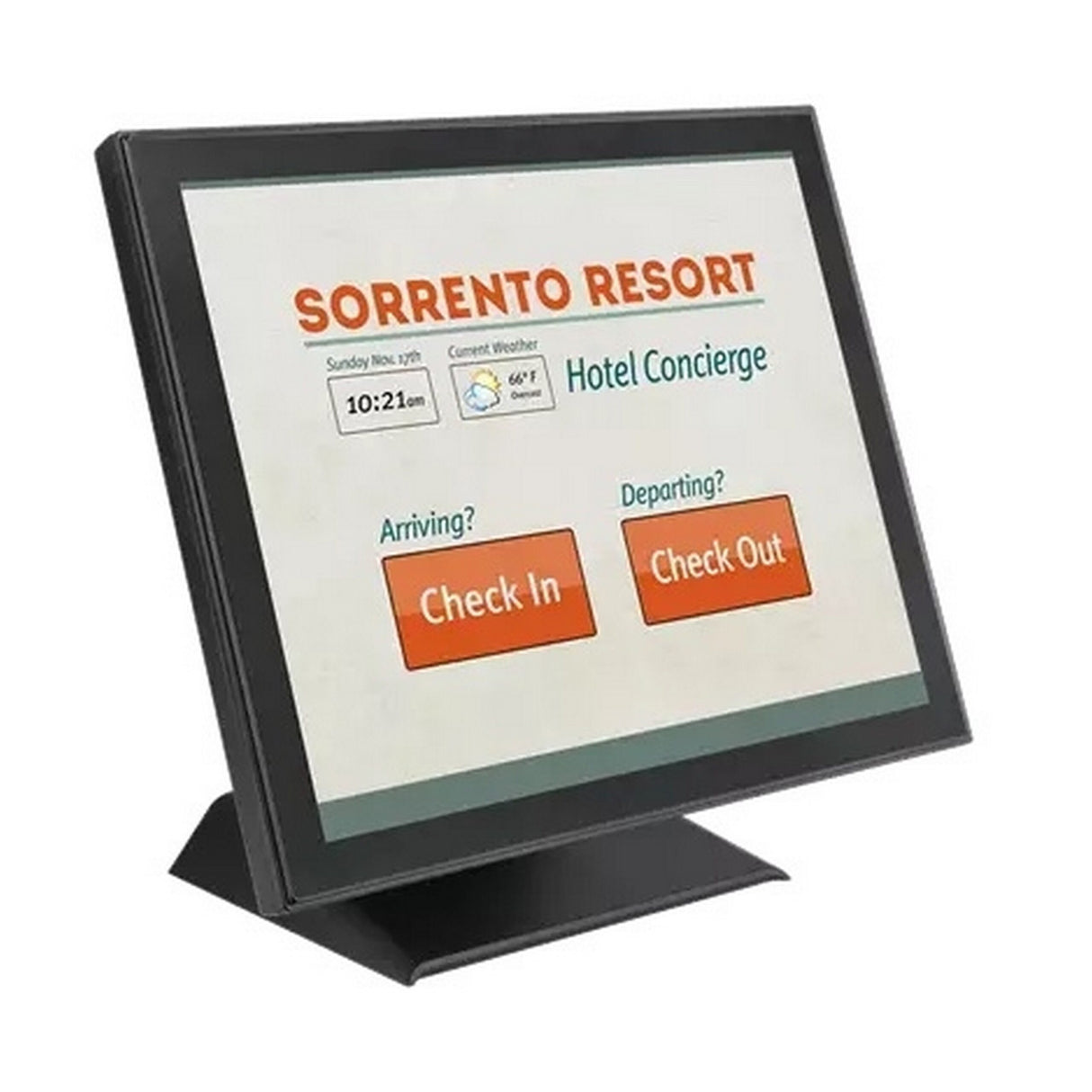

Planar PT1745P 17-Inch Touch Screen Point of Sale Monitor
Description
Description
Planar PT1745P 17-Inch Touch Screen Point of Sale Monitor
The Planar PT1745P 17" touch screen Point of Sale (POS) monitor is perfect for image-conscious retail, hospitality, or healthcare applications with its ultra-thin profile enclosure and its sleek edge-to-edge glass surface. It features accurate projected capacitive 10-point touch interactivity, has HDMI, DisplayPort input connectivity and built-in speakers. The monitor includes a full range desk stand that easily tilts from 0 to 90°and 100mm VESA holes for mounting.
Key Features
- 17" touch screen monitor
- 10-point projected capacitive touch
- HDMI, DisplayPort and VGA inputs
- Desktop stand allows tilt up to 90°
Technical Specifications
Viewable Size
17" diagonal (13.30" horizontal x 10.64" vertical)
Touchscreen Type
Projected Capacitive
Number of Touch Points
10
Touchscreen Interface
USB
Contrast Ratio (typ)
1000:1
Viewing Angle (typ)
170° Horizontal and 160° Vertical
Response Time (typ)
5 ms
Brightness (w/touchscreen)
212 cd/m2
Brightness (w/o touchscreen)
250 cd/m2
Display Type
Edge-Lit LED LCD
Display Resolution
1280 x 1024
Aspect Ratio
5:4
Tilt Range
-5° to 90°
Palette
16.7 million colors
Pixel Pitch
0.264 mm
Refresh Rate
56 to 75 Hz
Panel Depth
2.6" (67.0 mm)
Dimensions (W x H x D)
15.2" x 13.5" x 8.0" (386.8 mm x 341.9 mm x 202.0 mm)
Dimensions without Stand
15.2" x 12.6" x 2.6" (386.8 mm x 319.9mm x 67.0 mm)
Display Weight
12.3 lb (5.6 kg)
Display Weight (w/o stand)
8.8 lb (4.0 kg)
Shipping weight
17.0 lb (7.7 kg)
Video Inputs
HDMI, DisplayPort, VGA
Audio Output
2 speakers, 1W/channel
Compatibility
Windows 10, 8, 7, Vista, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Apple Mac OS, Linux, HID Compliant - no drivers needed for basic touchscreen operation
External Connections
HDMI 19-pin, DisplayPort 20-pin, VGA 15-pin, Type B USB socket, 3.5 mm audio in, AC Power In
Power Supply
Internal
Power Requirements
100-240 VAC, 50/60Hz
Power Consumption (max)
11.9W (1.5W standby, 0.3W off)
Operating Temperature
0° to +40° C
Mount
Built-in 100mm VESA, monitor back
Recommended Usage
Up to 16 hours per day
Service and Support
3-Year Customer First Warranty featuring FREE 2-Day Advance Replacement (US only). Please see warranty document for more details and for replacement procedures outside the US.
Options / Features
Multi-language On screen display (OSD), Kensington Security Slot
Product Approvals
UL/c-UL, FCC-Class B, RoHS
In the Box
PT1745P 17" Touchscreen LCD Monitor, Power Cord, VGA Cable, USB Cable (A to B), Audio-in Cable, HDMI Cable, User’s Guide, Landing strip
