Planar PT2245PW | 22 Inch Ultra Thin Touch Screen Monitor
Description
Description

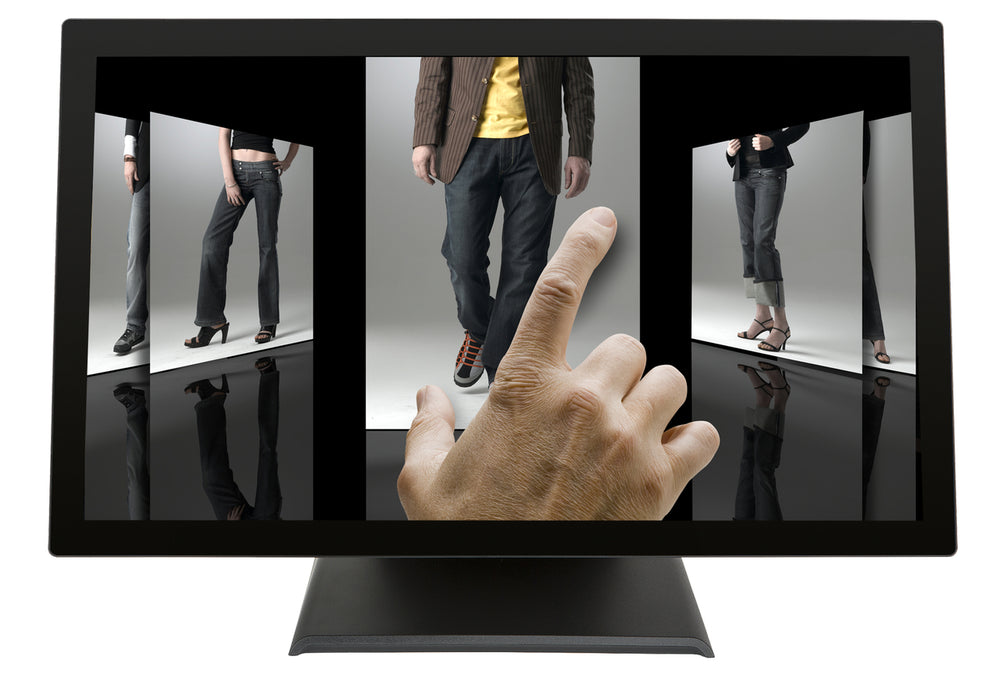

Planar PT2245PW 22 Inch Ultra Thin Touch Screen Monitor
For image-conscious retail, hospitality, or healthcare establishments looking for a wide-format touch screen monitor, the Planar PT2245PW 22-inch monitor is optimized with multi-touch interactivity for displaying 16:9 content. With its ultra-thin profile and its sleek, edge-to-edge glass surface, the Planar PT2245PW provides the ultimate end-user experience.
Key Features
- 22" Touch screen monitor with 1920 x 1080 resolution
- Zero bezel, all glass front surface 10-point multi-touch screen
- DC powered (external power supply) ideal for carts
- Compatible with 100mm VESA mounts
- Easy to operate desk stand allows tilt up to 90 degrees
Technical Specifications
Product Name
PT2245PW
Planar Part Number
997-7416-00
Viewable Size
21.5" diagonal (18.77" horizontal x 10.56" vertical)
Touchscreen Type
Projected Capacitive
Number of Touch Points
10
Touchscreen Interface
USB
Transmissivity
N/A
Contrast Ratio (typ)
1000:1
Viewing Angle (typ)
178 degrees H,V
Response Time (typ)
14 ms
Brightness (w/touchscreen)
225 cd/m^2
Brightness (w/o touchscreen)
250 cd/m^2
Brightness (Typical)
N/A
Display Type
Edge-Lit LED LCD
Display Resolution
1920 x 1080
Aspect Ratio
16:9

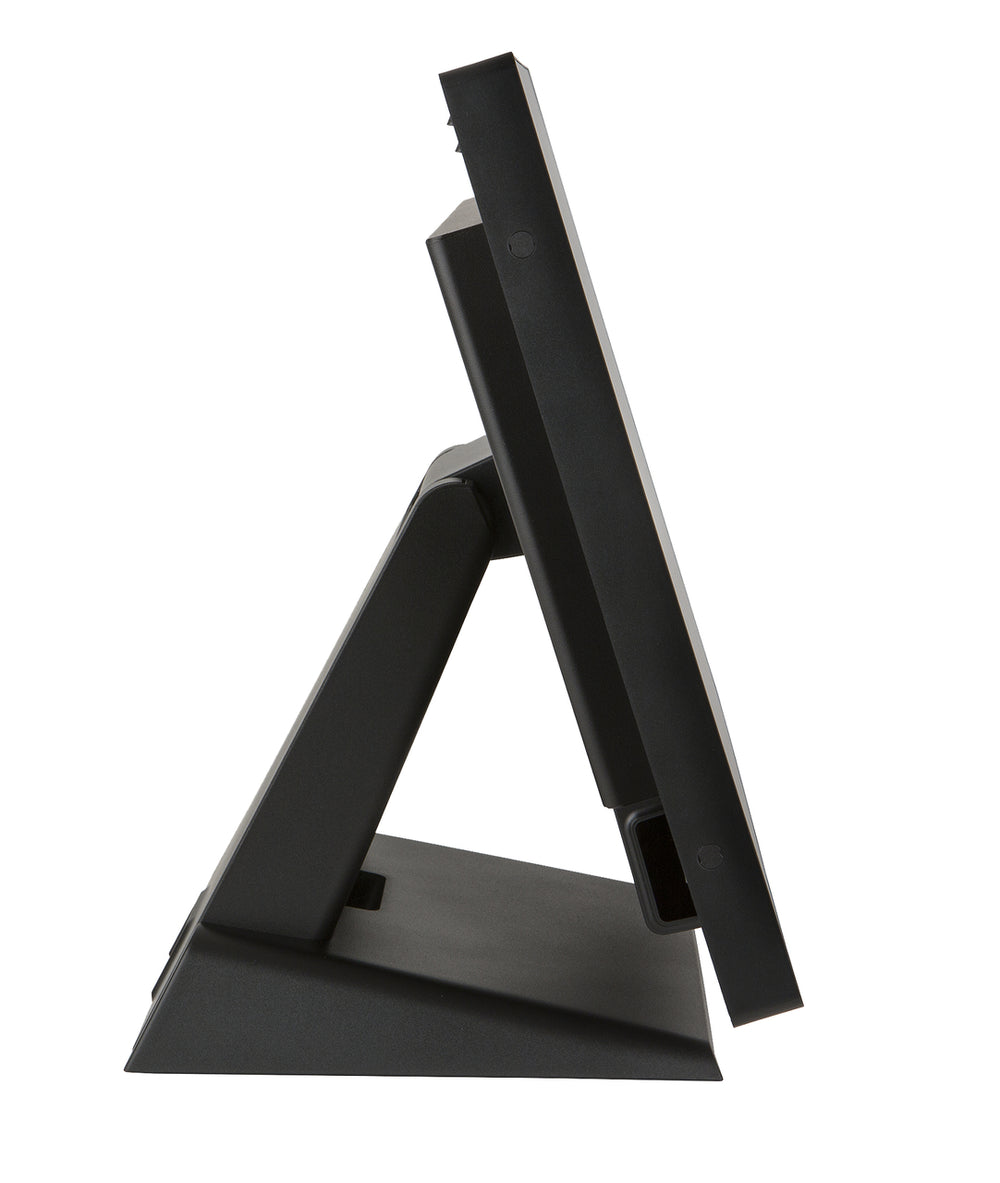

Tilt Range
-5 degrees to 90 degrees
Palette
16.7 million colors
Pixel Pitch
0.24795
Refresh Rate
56 to 75 Hz
Panel Depth
1.8" (46.0 mm)
Dimensions (W x H x D)
20.4" x 13.8" x 8.6" (517.4 mm x 351.7 mm x 219.0 mm)
Dimensions without Stand
20.4" x 12.3" x 1.8" (517.4 mm x 313.3 mm x 46.0 mm)
Display Weight
17.2 lbs (7.8 kg)
Display Weight (w/o stand)
11.0 lbs (5.0 kg)
Shipping weight
20.3 lbs (9.2 kg)
Video Inputs
Analog and Digital (DVI-D)
Audio Output
None
Compatibility
Windows 8, 7, Vista, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Apple Mac OS, Linux, HID Compliant - no drivers needed for basic touchscreen operation

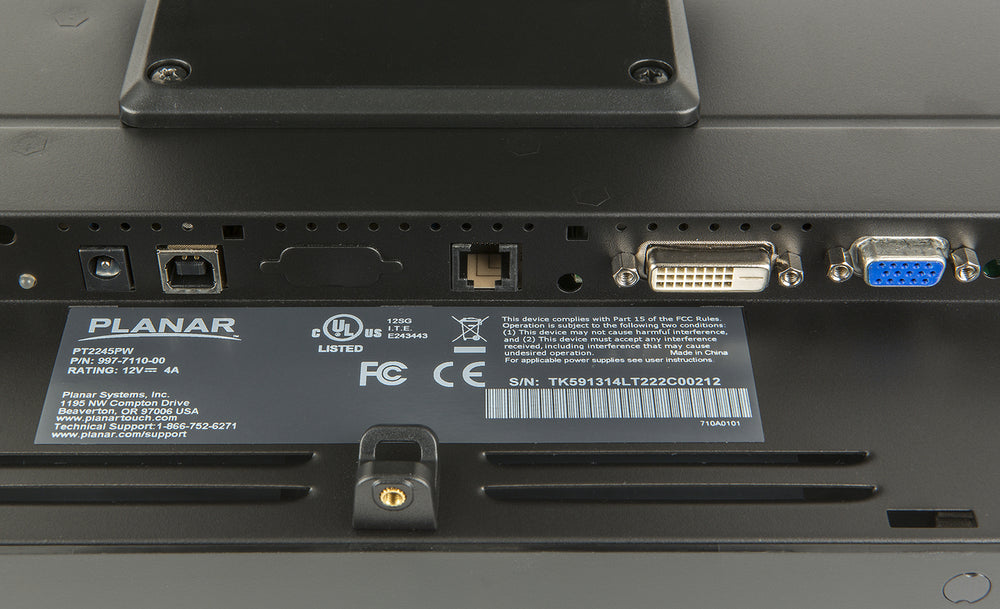

External Connections
D-sub 15 pin, DVI-D, Type B socket USB, DC Power in
Power Supply
External (DC power)
Power Requirements
100-240V AC, 50/60Hz
Power Consumption (max)
26.4W (1.8W standby, 0.8W off)
Operating Temperature
0 to 40 degrees C
VESA Compatible/Location
Built-in 100mm VESA, back
Service and Support
3-Year Customer First Warranty featuring FREE 2-Day Advance Replacement (US only)
Options / Features
Multi-language On screen display (OSD), Kensington Security Slot
Product Approvals
UL/c-UL, FCC-Class B, CE, RoHS II
CI-Black-PN
997-7416-00
CI-White-PN
N/A
In the Box
PT2245PW 22" Wide Touchscreen Edge-lit LED LCD Monitor, DC Power Supply, Power Cord, VGA Cable, DVI-D Cable, USB Cable (A to B), User's Guide, Quick Start Guide, Cable Cover and Screw
UPC
8 10689 00025 9
