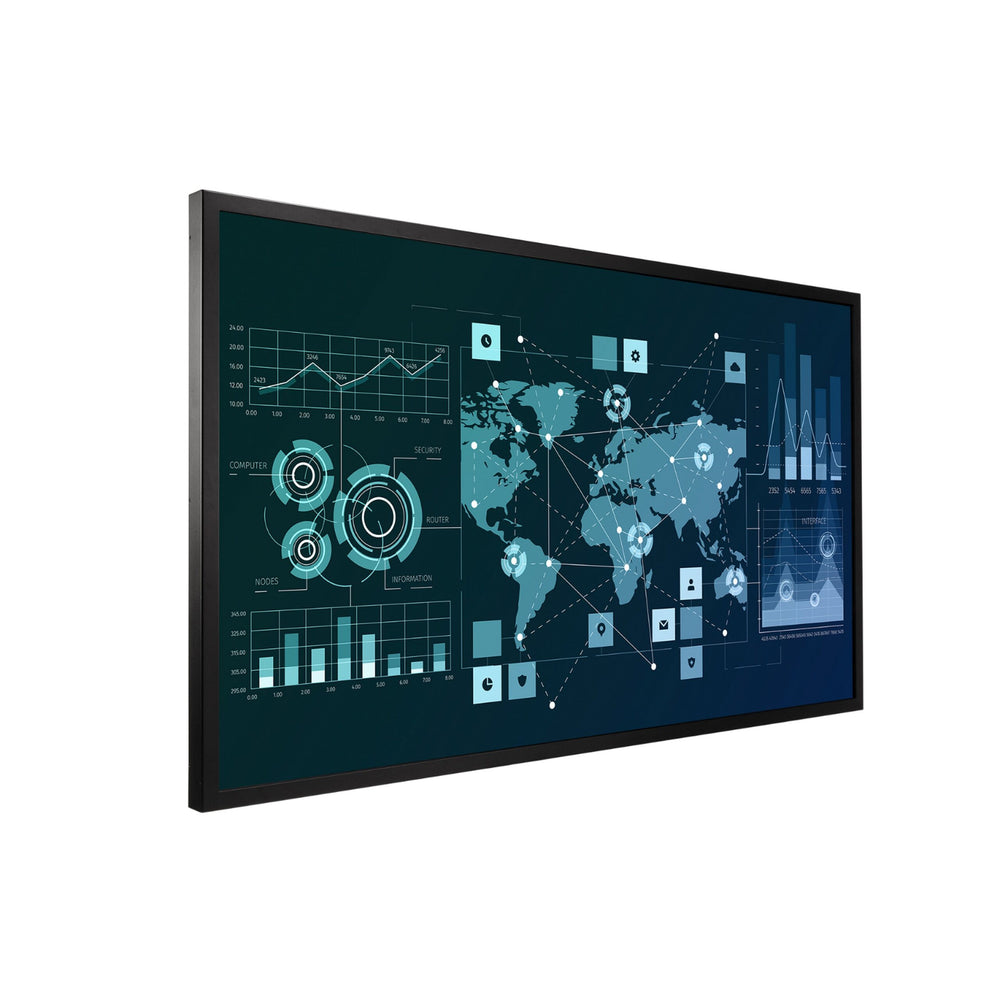

Planar QE8650-T 86 Inch Interactive 4K LCD Display
Description
Description
Planar QE8650-T 86 Inch Interactive 4K LCD Display
The Planar QE8650-T display connects a multi-touch experience with stunning 4K image clarity. Offering an affordable solution for professionals who seek to collaborate or annotate using a large viewing area, Planar QE8650-T delivers the highest image resolution and enterprise-level features in conference rooms or huddle spaces, and is also ideal for public display applications such as way-finding, product catalogs and any interactive digital signage designed to promote customer engagement. The Planar QE8650-T offers 20 points of multi-touch and multi-user technology, making it easy for multiple users to collaborate and interact at the same time.
Technical Specifications
Product Name
Planar QE8650T
Planar Part Number
997-8798-01
Display Resolution
Ultra HD (3840 x 2160)
Screen Size
86 in. (diagonal)
Aspect Ratio
16:9
Display Active Area
74.6” x 42.0” (1895mm x 1066mm)
Cabinet Dimensions (W x H x D)
77.1” x 44.4” x 3.7” (1957mm x 1128mm x 95mm)
Bezel Width
1.2” (31.0mm) left/right, top/bottom
Brightness (w/protective glass)
475 nits
Response Time (typ)
6 ms
Frame Rate
120Hz
Contrast Ratio (typ)
1200:1
Contrast Ratio Dynamic
20,000:1
Viewing Angle (typ)
178
Color Gamut
72% NTSC
Display Color
>1 billion colors. Full 10 bit data path
Modes
3840x2160 @ 24/25/30/60Hz; 1920x1080 @ 24/25/30/50/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz
Pixel Pitch
0.429 mm
Weight
158 lbs (72 kg)
Backlight
LED
Line Voltage
100-240V; 50/60Hz
Power Consumption (typ)
165W (standby: <1W)
Operating Temperature
0 to +35C (32 to 95F) at up to 1500m, 0 to +30C (32 to 86F) at up to 3000m
Humidity
20 - 85% RH (non-condensing)
Approvals
FCC Class A, cTUVus, RoHS
External Connections
DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2
Audio Output
PC Line Out, S/PDIF
Multi-Source Views
Quad only
Display Control
IR, RS-232, LAN, Keypad
Speakers
10W x 2 built-in
Orientation
Landscape/Portrait
Mounting
VESA: 600 x 400 mm
Fanless
Yes
HD format
4K UHD 2160p
Touch Technology
IR 20 point touch
OS Compatibility
Windows 7, 8, 10, Mac OSX and Linux
Display Technology
Edge-lit LED LCD
Recommended Usage
Up to 24x7 operation
Warranty
3 years Advance Exchange
Options / Features
TAA compliant
In the Box
QE8650T display, power cord, IR sensor, USB (A to B) cable, remote control, TouchMark license key (one time download) and USB drive containing User Manual, touch drivers, and USB-to-serial driver
UPC
810689007401
