Premier Mounts PDS-PLUS | Low-Profile Universal Projector Mount

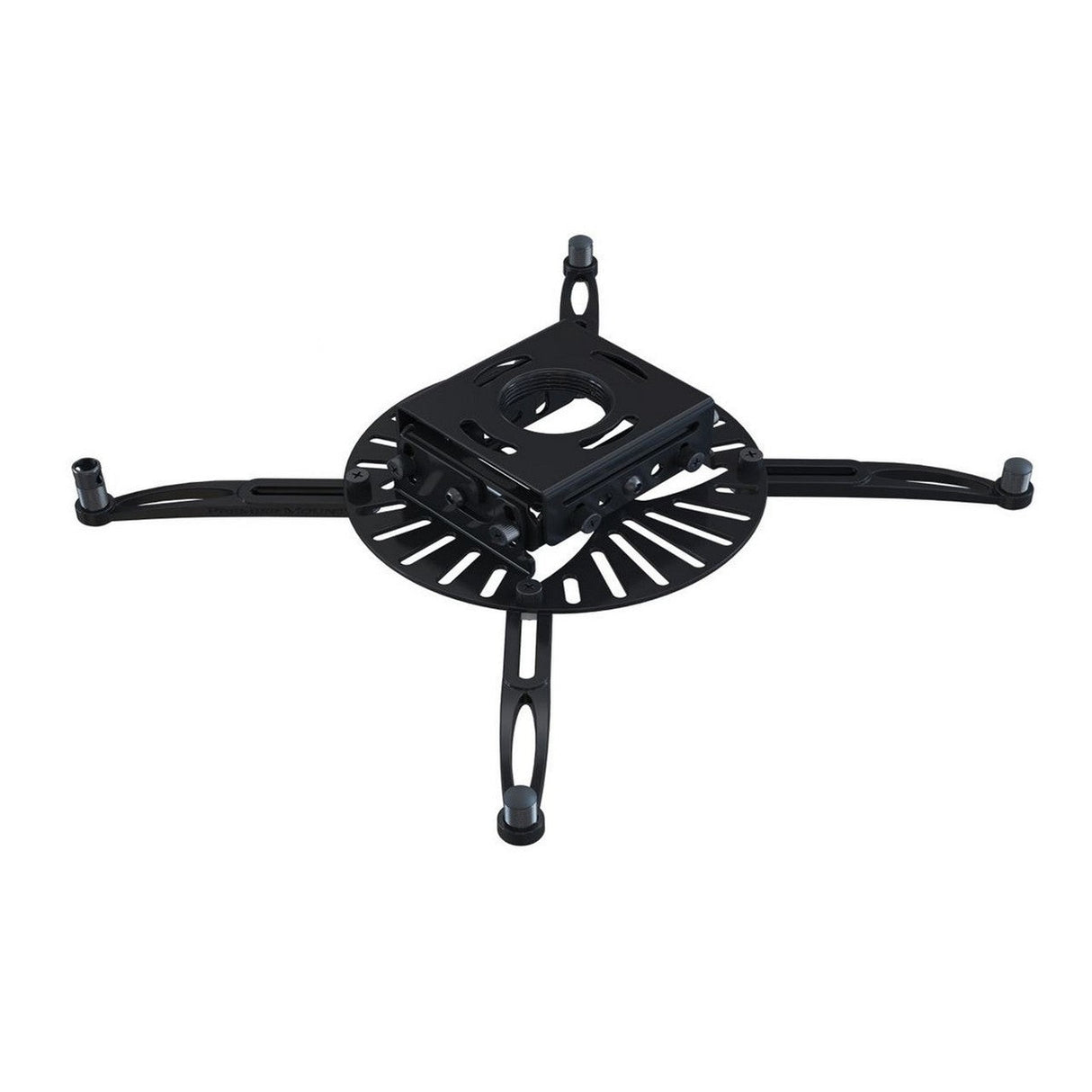

Premier Mounts PDS-PLUS Low-Profile Universal Projector Mount

The PDS-PLUS is a low-profile universal projector mount that can be mounted directly to the ceiling or in use with a drop pipe. This mount truly is universal because it features a slotted mounting base with six interchangeable legs (four long and two short) to reach both shorter and wider mounting points. Most standard sized projectors will work well with the PDS-PLUS.

Key Features

• The PDS-PLUS is a low-profile universal projector mount that can be mounted directly to the ceiling or in use with a drop pipe
• This mount truly is universal because it features a slotted mounting base with six interchangeable legs (four long and two short) to reach both shorter and wider mounting points
• Installation of the PDS-PLUS is easy because it mates to standard 1.5 in. NPT pipe, or directly to structural surfaces
• 75 lb. | 34.02 kg Weight Capacity
• Being one of the most popular mounts for education applications, the PDS-PLUS is OSHPD approved, UL listed and includes Lock-It security hardware

Technical Specifications

Shipping Weight
4.9 lb. | 2.22 kg
Weight Capacity per Mount
75 lb. | 34.02 kg
Width
16.43 in. | 417.32 mm
Height
2.8 in. | 71.12 mm
Mounting Pattern Type
None
Pitch
+16.50/ -16.50
Roll
+7.50/ -7.50
Yaw
+42.00/ -42.00
Shipping Box DIM Sizes
11.8 in. (wide) x 6.5 in. (high) x 11.8 in. (deep) | 299.72 mm x 165.1 mm x 299.72 mm
Diameter
16.43 in. | 417.32 mm
UPC
829973260767
