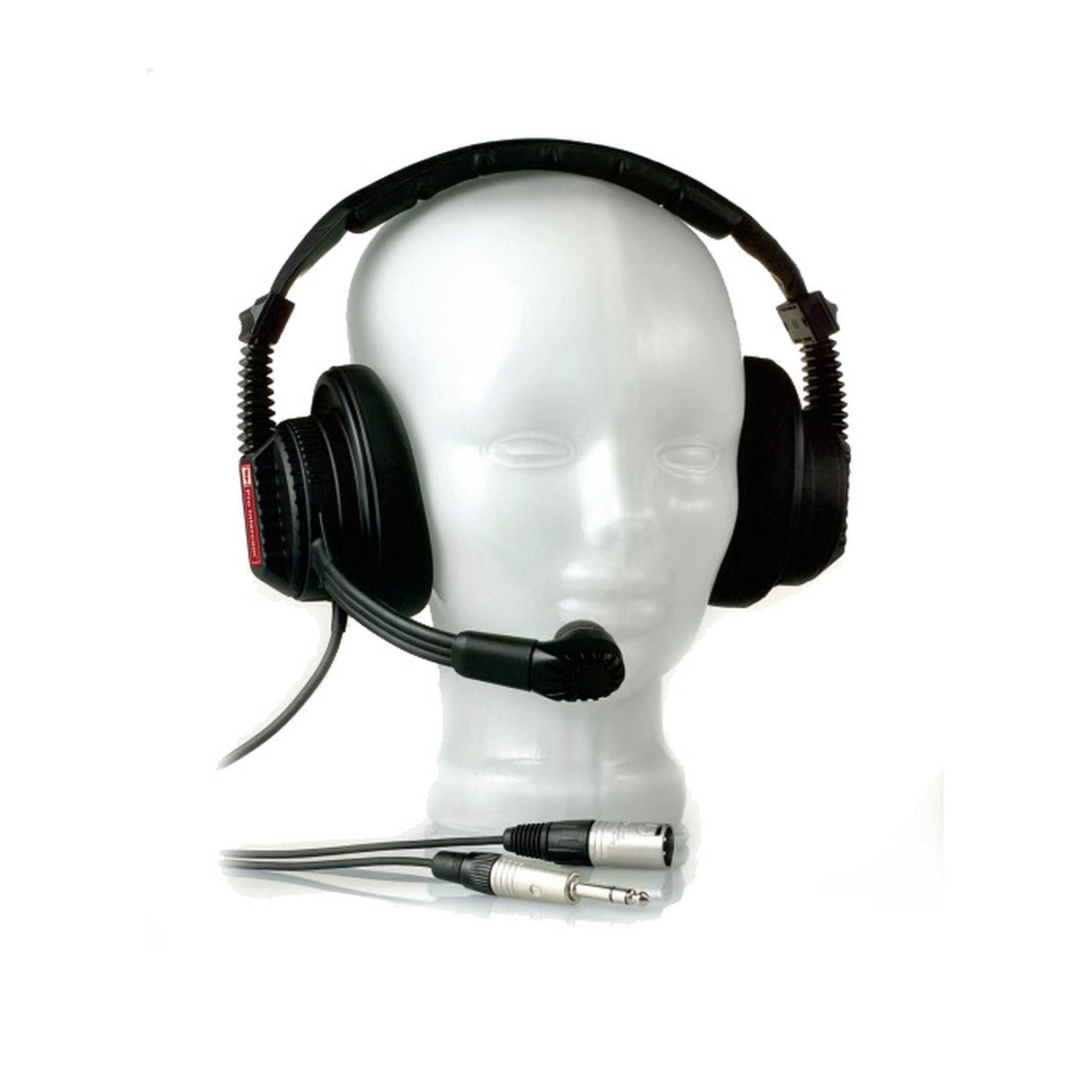

Pro Intercom DMH9000 | Double Muff 2x400 Ohm Earspeaker 600 Ohm Condenser Mic Headset

Pro Intercom DMH9000 Double Muff 2x400 Ohm Earspeaker 600 Ohm Condenser Mic Headset

The DMH9000 is not an intercom headset, but a broadcast version. It is equipped with a highly directional condenser microphone requiring DIN standard phantom voltage. That, in combination with its durability, lack of exposed wiring, and high noise-excluding ear muffs make it ideal for sports broadcasting and outdoor applications. It is fitted with standard broadcast connectors - a 3-pin male XLR for the microphone and a 1/4" T/R/S phone plug for the earspeakers, both Neutrik.

Key Features

• Low visual profile specifically designed with broadcast and studio applications in mind
• Acoustical and electrical isolation of the microphone from the earspeakers to minimize the incidence of cross-talk
• Symmetrical hypercardioid studio quality condenser microphone
• Earspeakers have a specially contoured and wide bandwidth in combination with high sensitivity

Technical Specifications

Earspeakers
Frequency response
16-10,000Hz or 10-34,200Hz
Nominal Impedance
400WW (each side)
Sound pressure level
94dB
External noise exclusion
>25dBA
Average pressure on ears
7N
Weight (without cable)
12oz (350g)
Microphone
Transducer type
Condenser
Frequency response at -10dB
35-15,000Hz
Polar pattern
Hypercardioid (near field)
Front-to-back ratios 100-1000Hz
>20dB at 180 degrees
>22dB at 135 degrees
Sensitivity @ 1kHz
7mV/Pa
Impedance @ 1kHz
600W, balanced
