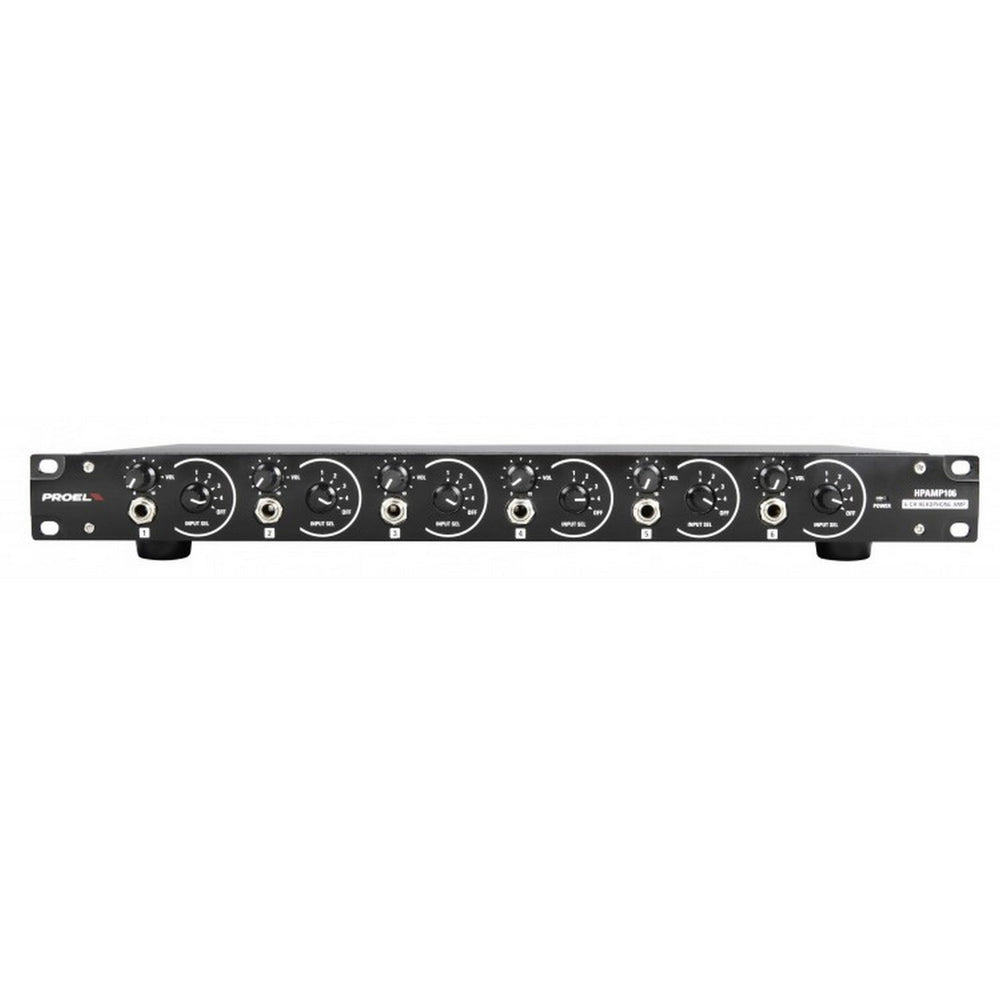

PROEL HPAMP106 6-Channel Headphone Amplifier
Description
Description
PROEL HPAMP106 6-Channel Headphone Amplifier
6-CH Headphone Amplifier
Key Features
- 6 independent high-power amp sections suitable for any type of headphones
- 4 selectable main stereo/mono inputs with ¼” JACK connectors (REAR panel)
- 6 stereo headphone outputs with individual level controls, input selector and
- ¼” JACK connectors (FRONT panel)
- 300mW max output level at 32 ohms (per channel)
- Built-in power supply with toroidal transformer and voltage selector
- 19” rack mountable metal chassis
Technical Specifications
Input Section
Inputs
4 stereo
Input Impedance
47 Kohm
Max Input Level
+25 dBu
Connectors
2 x 1/4” jack unbalanced (each input)
Output Section
Outputs
6 stereo
Maximum output (2x)
193 mW @ 32 ohms (each)
Load Impedance
minimum 16 ohm per channel
Max gain
+13 dB each channel
Connector
1/4” jack stereo (each output)
System Performance
Distortion (THD)
0.02 %
Noise
< -98 dBu unweighted
Frequency Response
20 Hz - 20 KHz (-3 dB)
General
Controls
OUTPUT LEVEL, INPUT SELECTOR
Indicators
Power ON
Power supply
Selectable 100-120 VAC, 220-240 VAC, 50-60 Hz
Dimensions (W x H x D)
480 x 44 x 210 mm
Weight
3.9 Kg
