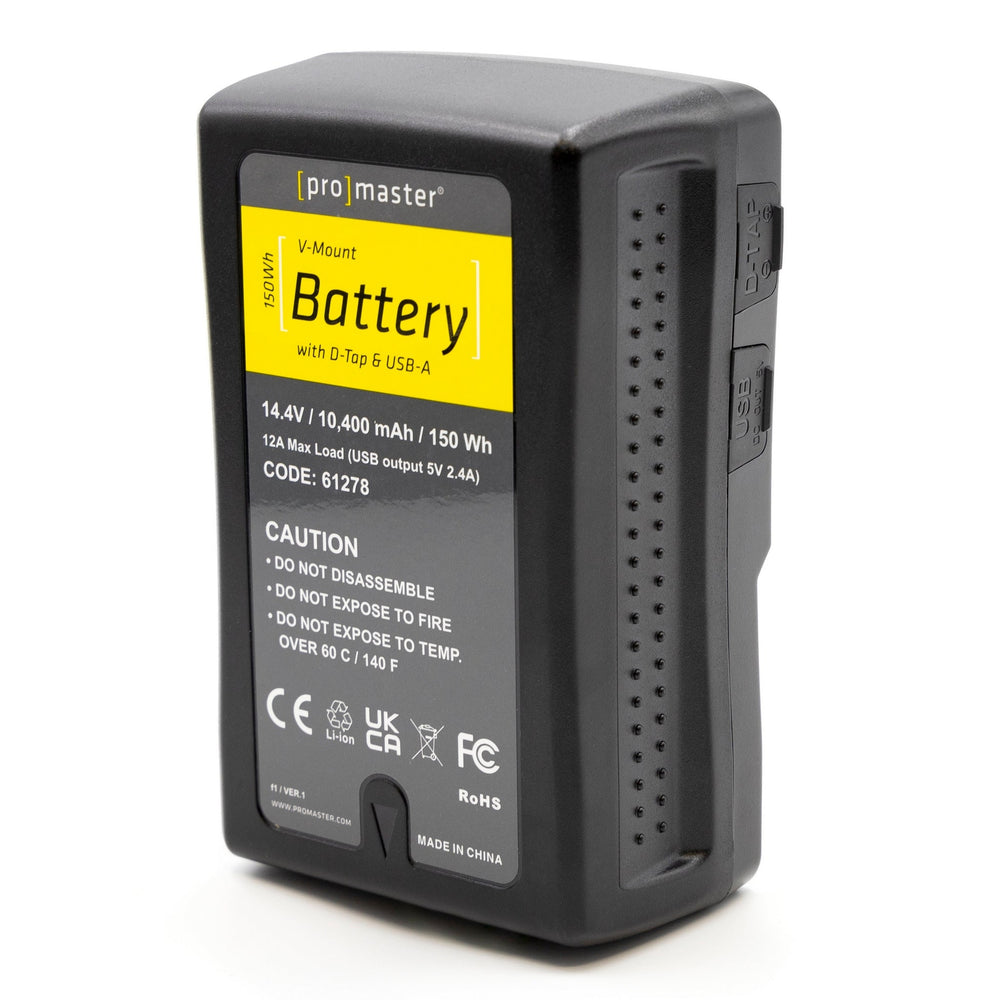

ProMaster 150Wh V-Mount Battery/Charger Kit with D-Tap and USB-A
Description
Description
The ProMaster 150Wh V-Mount Battery/Charger Kit with D-Tap and USB-A comprises a high-capacity li-ion battery (14.4V / 10,400 mAh / 150 Wh) equipped with D-Tap and USB-A ports.
A lithium-ion battery and charger set, having a 150 Wh capacity, crafted to be compatible with V-Mount and D-Tap devices.
It can support a continuous draw of up to 12A at 14.4V and includes a D-Tap charger for added convenience.
The battery is designed with a standard D-Tap port for charging and powering other devices using a matching D-Tap cable. Additionally, it features a USB-A (5V 2.4A) output port for device charging purposes.
An easy-to-use 4-LED power gauge on the battery displays the approximate remaining capacity, activated with a simple button press.
Safety mechanisms such as over-charge, over-discharge, over-current, and over-temperature protections are incorporated within the battery.
The D-Tap charger takes about 7.5 hours to charge the battery from empty to full capacity.
Key Features
- Battery capacity of 10,400 mAh / 150 Wh
- Capable of supporting continuous draw up to 12A
- Features a 4-LED power gauge to display remaining battery capacity
- Equipped with a 2-Pin D-Tap port for charging and power
- Includes a USB-A port for charging other devices
- Comes with a D-Tap charger for added convenience
- Incorporates built-in protection circuitry for safety
- Nominal voltage of 14.4V
- Ideal for high-capacity power needs
- Reliable and efficient li-ion battery technology
Technical Specifications
Battery
Nominal Voltage
14.4 V
Capacity
10,400 mAh / 150 Wh
Maximum Load
12 A continuous draw (via main contacts or D-Tap)
Cut-off Discharge Voltage
11.0 V
Charging Voltage
16.8 V
Charging Current
3.12 A standard charging / 4.0 A quick charging
Maximum Charging Current
6 A
USB-A Port Output
5 V / 2.4 A
USB Cut-off Discharge Current Protection
2.5 - 3.2 A
D-Tap Maximum Discharge Current
14.9 A (16.8 V) - 22.7 A (11 V)
D-Tap Charging Voltage
16.8 V
D-Tap Maximum Charging Current
6 A
Dimensions
5 7/8” x 3 3/4” x 2 1/4” | 150 mm x 95 mm x 57 mm
Weight
1,042 g / 2 lbs 4 3/4 oz
Charger
Input
100 - 240 V AC 50/60 Hz
Output charging voltage
16.8 V DC
Output charging current
2.0 A
