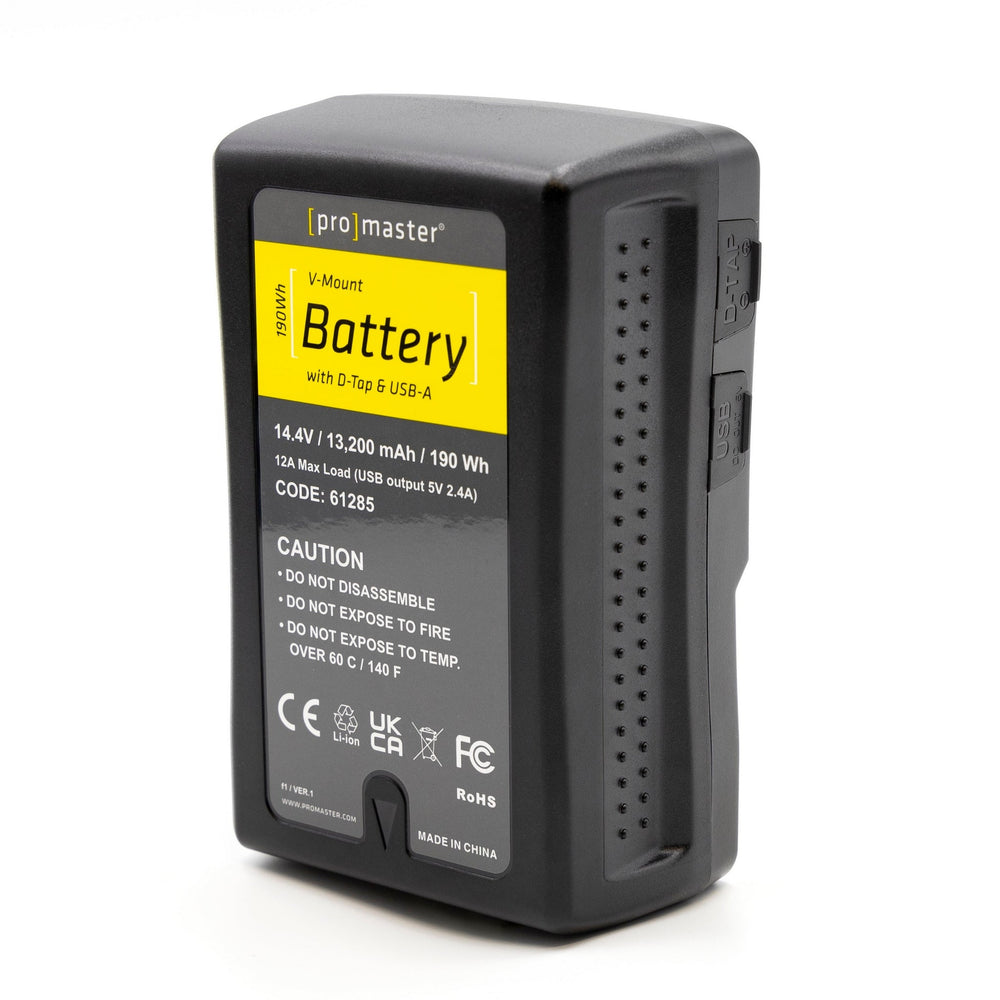

ProMaster 190Wh V-Mount Battery/Charger Kit with D-Tap and USB-A
Description
Description
The ProMaster 190Wh V-Mount Battery/Charger Kit with D-Tap and USB-A is a high-capacity li-ion battery (14.4V / 13,200 mAh / 190 Wh) with D-Tap and USB-A ports.
A lithium-ion battery and charger kit (190 Wh) compatible with V-Mount & D-Tap devices.
It can support a continuous draw of up to 12A at 14.4 V.
The kit comes with a D-Tap charger for added convenience.
The battery features an industry-standard D-Tap port for charging and powering other devices with a compatible cable.
Additionally, it includes a USB-A (5V 2.4A) output port for charging devices.
A 4-LED power gauge indicates the remaining battery capacity.
Safety features like over-charge, over-discharge, over-current, and over-temperature protection are integrated into the battery.
Charging the battery from empty to full using the D-Tap charger takes approximately 8 1/2 hours.
Key Features
- The ProMaster 61285 V-Mount Battery Kit offers a high capacity of 13,200 mAh / 190 Wh.
- It is equipped with D-Tap and USB-A ports for versatile charging options.
- The battery supports a continuous draw of up to 12A at a nominal 14.4V.
- A convenient onboard 4-LED power gauge displays the remaining battery capacity.
- It features a 2-Pin D-Tap port for both charging and powering devices.
- Additionally, it includes a USB-A port for charging other devices.
- The kit also comes with a D-Tap charger for added convenience and value.
- The battery is designed with built-in protection circuitry for enhanced safety.
- It is a reliable and efficient power solution for various applications.
- The ProMaster 61285 V-Mount Battery Kit ensures long-lasting power and reliable performance.
Technical Specifications
Battery
Nominal Voltage
14.4 V
Capacity
13,200 mAh / 190 Wh
Maximum Load
12 A continuous draw (via main contacts or D-Tap)
Cut-off Discharge Voltage
10.5 V
Charging Voltage
16.8 V
Charging Current
2.64 A standard charging / 4.0 A quick charging
Maximum Charging Current
6 A
USB-A Port Output
5 V / 2.4 A
USB Cut-off Discharge Current Protection
2.5 - 3.2 A
D-Tap Maximum Discharge Current
14.9 A (16.8 V) - 23.8 A (10.5 V)
D-Tap Charging Voltage
16.8 V
D-Tap Maximum Charging Current
6 A
Dimensions
5 7/8” x 3 3/4” x 2 1/4” | 150 mm x 95 mm x 57 mm
Weight
1,063 g / 2 lbs 5 1/2 oz
Charger
Input
100 - 240 V AC 50/60 Hz
Output charging voltage
16.8 V DC
Output charging current
2.0 A
