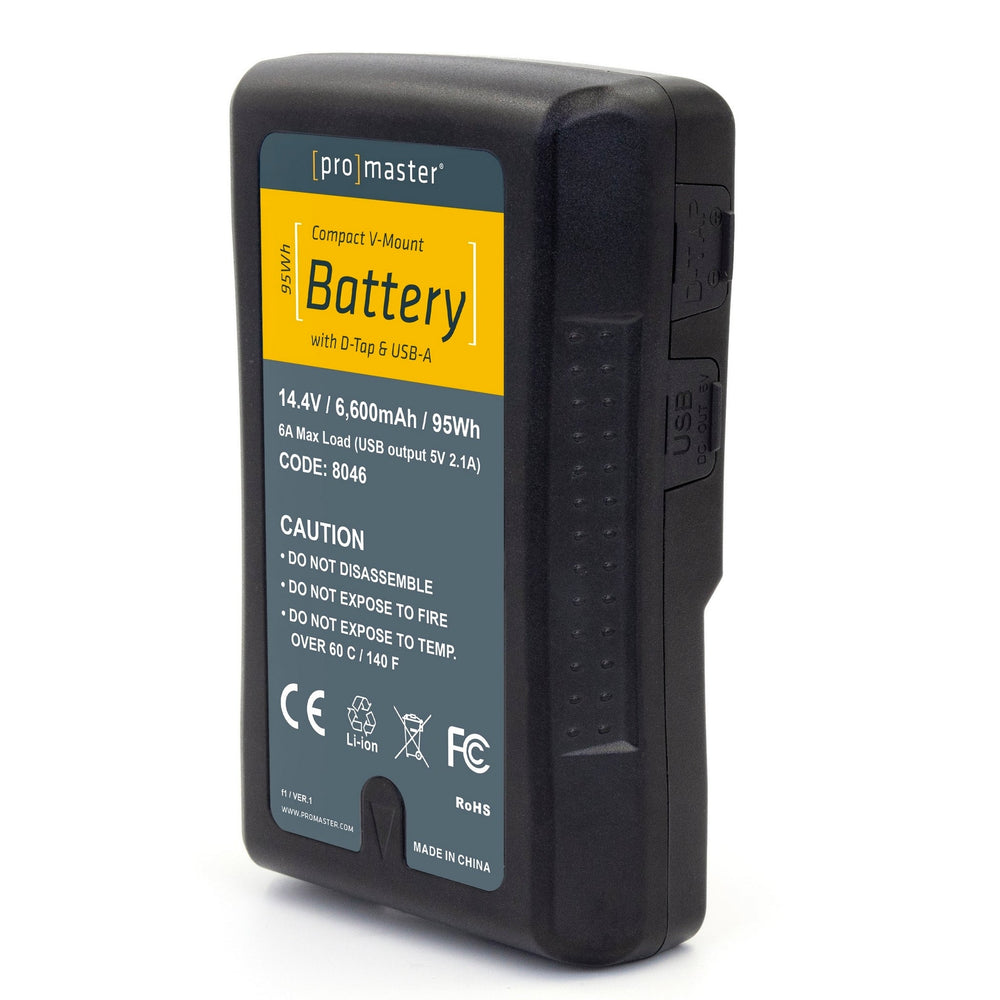

ProMaster 95Wh V-Mount Battery/Charger Kit with D-Tap and USB-A

The ProMaster 95Wh V-Mount Battery/Charger Kit with D-Tap and USB-A is a compact yet high-capacity lithium-ion battery (14.4V / 6,600 mAh / 95 Wh) with D-Tap and USB-A ports. It can continuously draw up to 6A at 14.4V. The kit comes with a D-Tap charger for added convenience and value.

Featuring an industry-standard D-Tap port for charging and powering other devices with a compatible cable, this battery also includes a USB-A (5V 2.1A) power output port for charging various devices.

An on-board 4-LED power gauge easily shows the remaining battery capacity with a simple push of a button.

For safety, the battery is equipped with protection circuitry against over-charge, over-discharge, over-current, and over-temperature issues.

With a capacity of 95Wh, this battery complies with most airline safety standards. However, it is advisable to verify the specific regulations before carrying it on any flight.

Charging this battery from empty to full using the provided D-Tap charger typically takes about 4 hours.

Key Features

• Small form factor

• 6,600 mAh / 95 Wh power capacity

• Capable of sustaining a continuous draw of up to 6A

• Features a 4-LED power gauge for monitoring battery level

• Equipped with a 2-Pin D-Tap port for charging and power supply

• Includes a USB-A port for charging external devices

• Comes with a D-Tap charger for added convenience

• Incorporates built-in protection circuitry for safety

• Nominal voltage of 14.4V

• Lightweight and portable design

Technical Specifications

Battery
Nominal Voltage
14.4 V
Capacity
6,600 mAh / 95 Wh
Maximum Load
6 A continuous draw (via main contacts or D-Tap)
Cut-off Discharge Voltage
11.0 V
Charging Voltage
16.8 V
Charging Current
1.95 A standard charging / 3.25 A quick charging
Maximum Charging Current
6 A
USB-A Port Output
5 V / 2.1 A
USB Cut-off Discharge Current Protection
2.5 - 3.2 A
D-Tap Maximum Discharge Current
14.28 A (16.8 V) - 24 A (10 V)
D-Tap Charging Voltage
16.8 V
D-Tap Maximum Charging Current
6 A
Dimensions
152 mm x 95 mm x 40 mm
Weight
588 g / 1 lb 4 3/4 oz
Charger
Input
100 - 240 V AC 50/60 Hz
Output charging voltage
16.8 V DC
Output charging current
2.0 A
