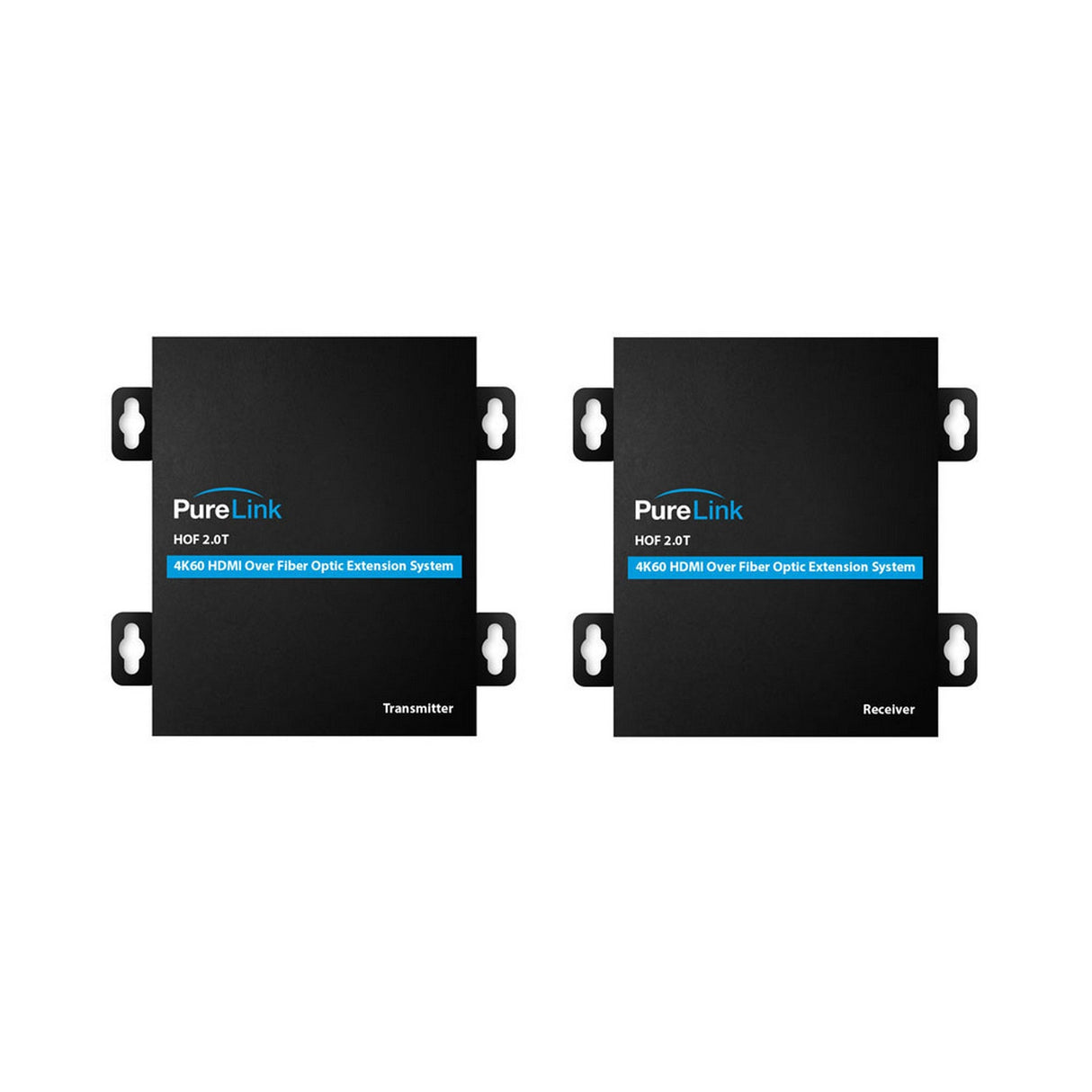

PureLink HOF T 2.0 Tx/Rx 4K/60 HDMI Over Fiber Extension System
Description
Description
PureLink HOF T 2.0 Tx/Rx 4K/60 HDMI Over Fiber Extension System
The HOF T2.0 Tx/Rx offers a powerful solution for long-distance distribution of 4K/60 video, audio, and control signals over fiber. Ultra HD/4K, HDMI 2.0 (18G), embedded audio, RS-232, and bi-directional IR are all supported over distances up to 3,300 ft. using PureLink’s TOTALWIRE LC-terminated fiber optic cables. The pure fiber connection provides protection from electromagnetic interference (EMI), delivering lossless transport for optimal signal quality.
Key Features
- TAA Compliant
- Supports resolutions up to 4K@60Hz 4:4:4 HDR
- Supports distances up to 1.24 miles (2000 m.) over single-mode fiber
- HDMI 2.0, HDCP 2.2 Compliant
- Real-Time Auto-EDID Management
- 18Gbps bandwidth support
- Supports LPCM 7.1 audio, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X formats
- Bi-directional IR & RS-232 control
- Supports USB keyboard mouse
Technical Specifications
Hardware
Audio
LPCM 2/5.1/7.1 Ch, Dolby Digital+, Dolby TrueHD, Dolby Digital, Dolby Atmos, DTS:X, DTS-HD Master Audio, DTS 5.1
Output Signal Type(s)
Configurable via PureMedia universal output cards supporting HDMI, HDBaseT, Fiber, and 3G-SDI
Performance
Supported Distance
Up to 1.24 miles (2000 m.) over single-mode fiber
Supported Resolutions
4K@60Hz 4:4:4 18Gbps (6Gbps per color) 1080p@60Hz 16bit, 3D, HDR, Dolby Vision
Compliance
HDMI 2.0, HDCP 2.2, HDCP 1.4
Supported Audio Formats
LPCM 7.1 @192KHz, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
Power Consumption
Max 5 W
RS-232
115200 bps / Full Duplex
Operating Temperature
14~113 Degrees F (-10~45 Degrees C)
Storage Temperature
-22~158 Degrees F (-30~70 Degrees C)
Relative Humidity
Up to 95%
Connections
Input Type(s)
TX: (1) HDMI Type A female, (1) USB Type B
RX: (1) SFP 10G+ Fiber module
Output Type(s)
TX: (1) SFP 10G+ Fiber module
RX: (1) HDMI Type A female, (2) USB Type A
Control Ports
TX & RX: (1) DB9 female
Enclosure
Product Dimensions
4.31”x4.51”x1.18” (109.6 x 114.5 x 30mm)
Product weight
0.6 lb. (270g)
Warranty
Limited Warranty (3-Years)
