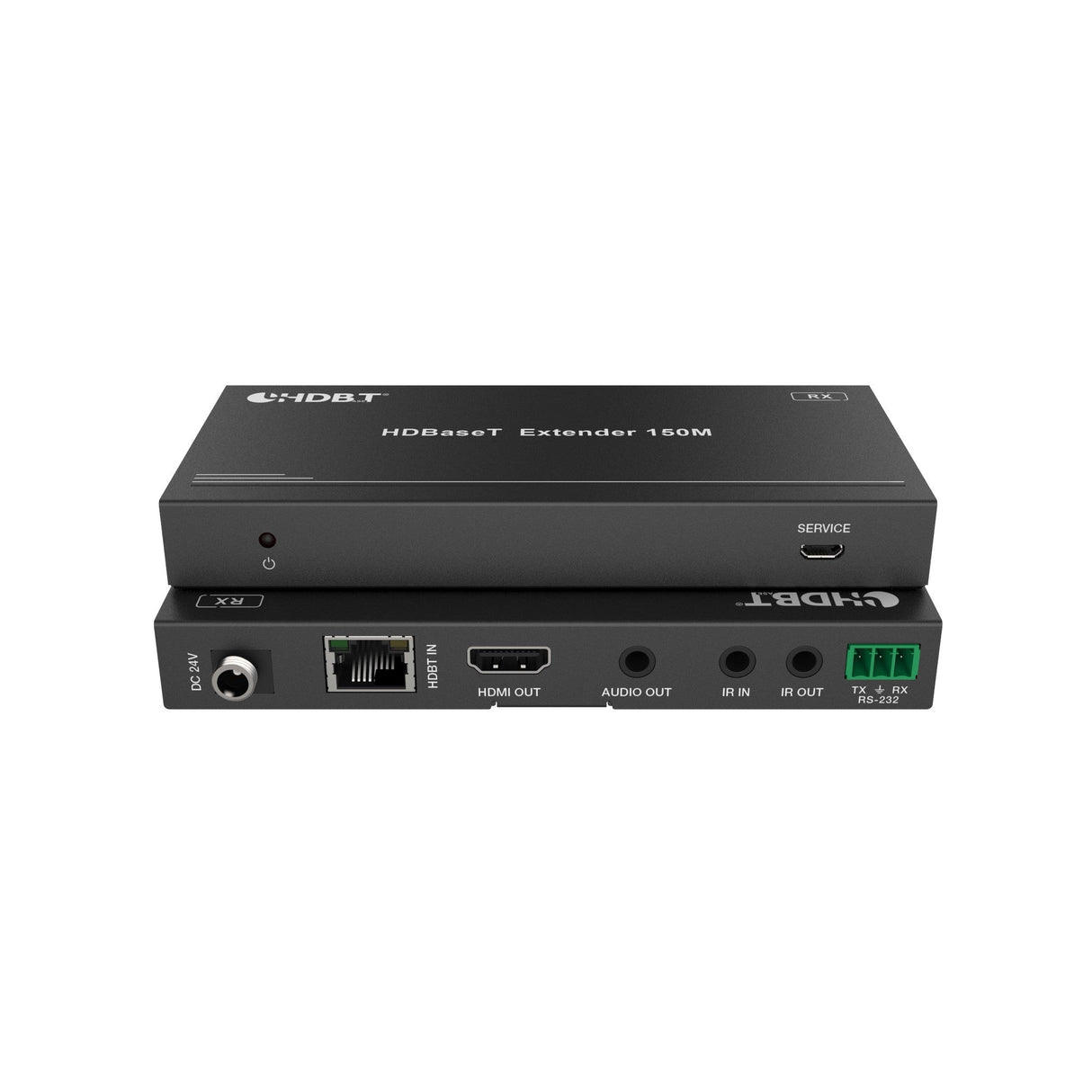

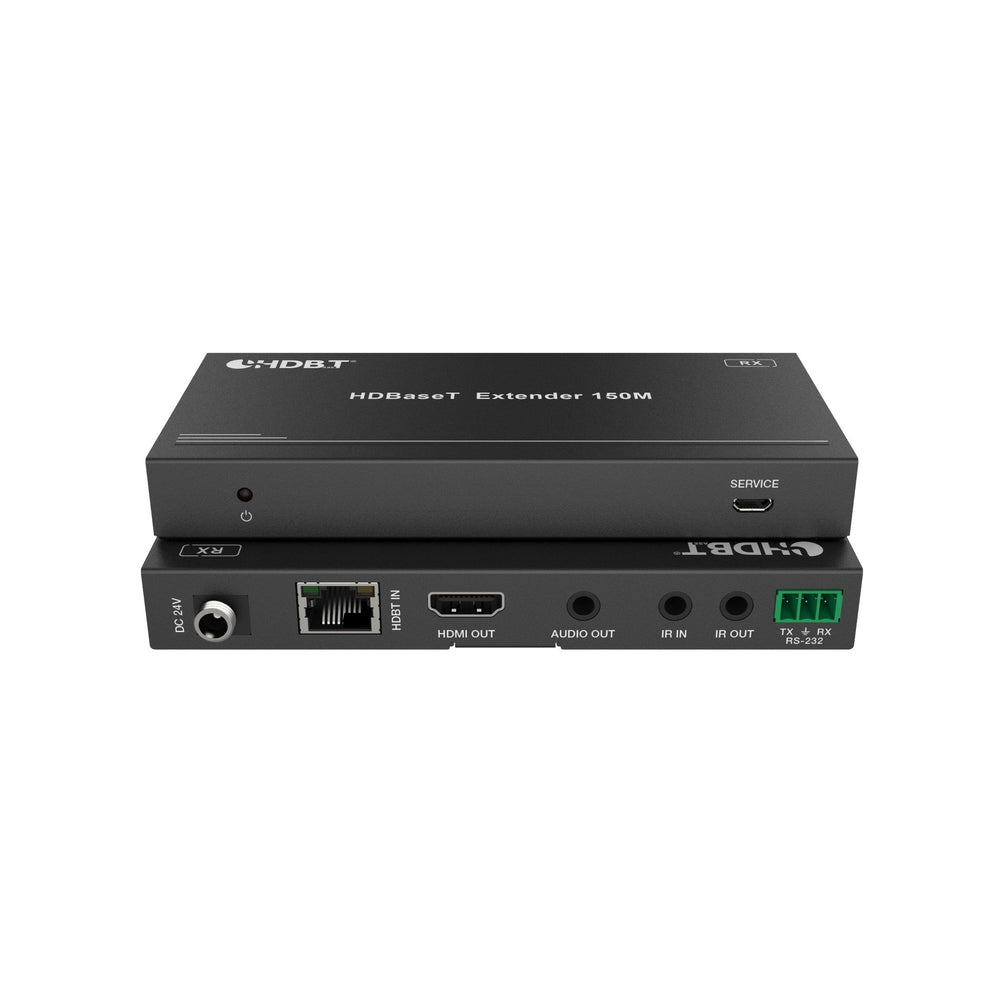

PureLink HTX III-Rx 4K HDBaseT Receiver for HTX III Series

PureLink HTX III-Rx 4K HDBaseT Receiver for HTX III Series

The HTX III-RX is designed for use with the HTX III-4400 and HTX III-8800 Matrix Switcher to extend 4K/60 4:4:4 video, audio, two-way IR, and RS-232 signals up to 492 ft. (150m). Using PoC technology, the HTX III-RX can draw power directly from the HTX III-4400/HTX III-8800, eliminating the need for additional power supplies.

Key Features

• HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
• Supports video resolutions up to 4K/60 4:4:4
• Supports audio up to 7.1 channels of High-Definition audio pass through
• Up to 330ft (100m) HDBaseT transmission distance
• Video, audio, IR, RS-232, ethernet, and PoE over a single cable
• ARC and CEC supported

Technical Specifications

Performance
Supported Distance
492 ft. (150 m)
Supported Resolutions
up to 4K@50/60Hz (4:4:4)
Compliance
HDMI 2.0b, HDCP 2.2/1.4
Data Transfer Rate
18 Gbps
Color Space
RGB/YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
8-bit 10-bit 12-bit
Supported HDMI Audio Formats
LPCM 2/5.1/7.1 CH, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Control Options
RS-232, IR
Power Consumption
11 Watts (max)
Power Supply
Input: AC100 - 240V 50/60Hz | Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Operating Temperature
32 Degrees ~ 104 Degrees F (0 Degrees to 40 Degrees C)
Storage Temperature
- 4 Degrees ~ 148 Degrees F (-20 Degrees to 60 Degrees C)
Relative Humidity
20 ~ 90% non-condensing
MTBF
50,000 hours
Video output format
(1) HDMI Type A <19-pin female>, (1) IR <3.5mm Stereo Mini-jack>, (1) LAN
Enclosure
Enclosure Type
All metal, black powder coat finish
Product Dimensions
6.7 x 3.8 x 0.7 in.
Product Weight
0.94 lbs.
Product Dimensions
12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm)
Product Weight
7.7 lbs (3.5 kg)
Warranty
Limited Warranty (3-Years)
