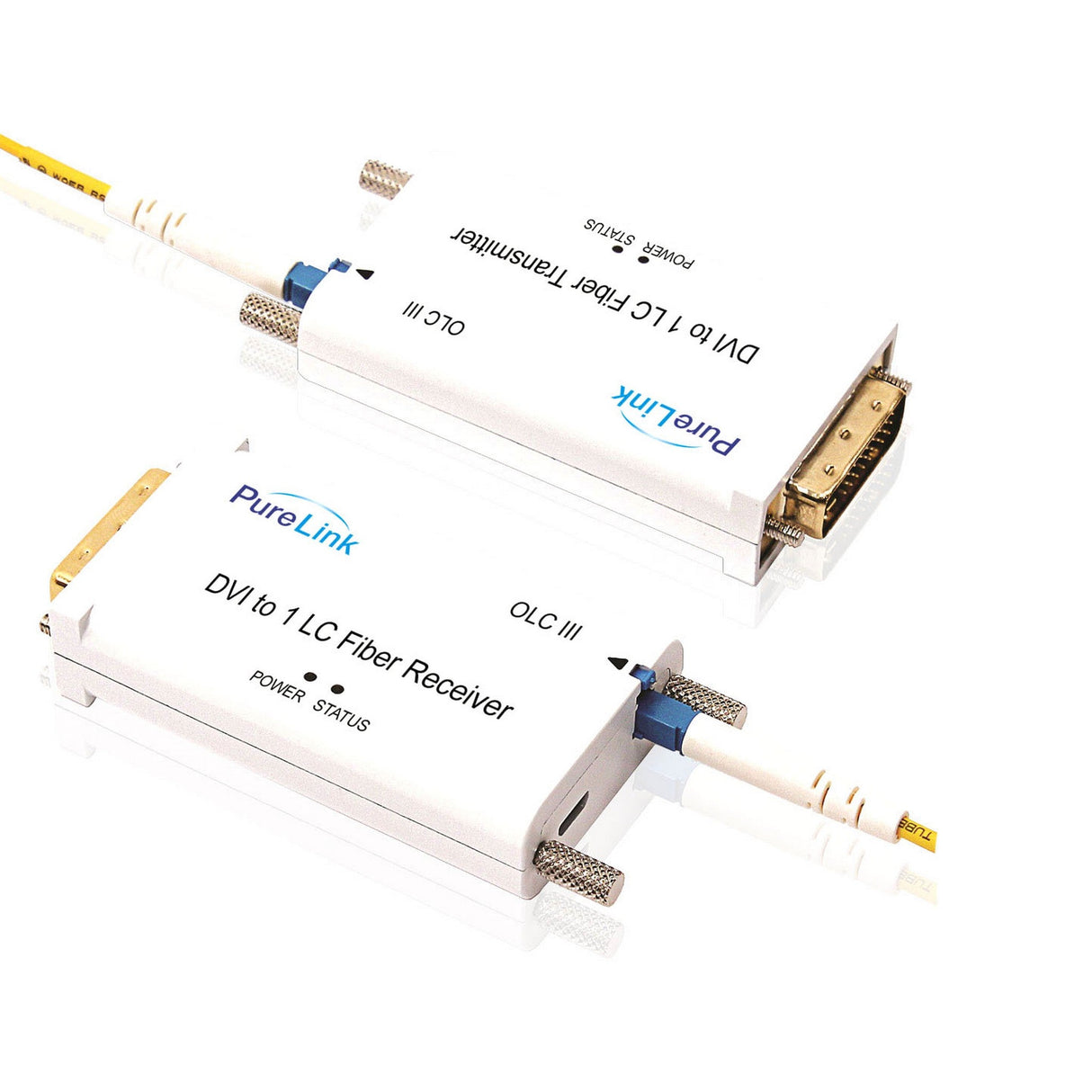

PureLink OLC III Tx/Rx DVI over 1LC Fiber Extension System
Description
Description
PureLink OLC III Tx/Rx DVI over 1LC Fiber Extension System
The OLC III Tx/Rx DVI over 1LC Fiber Extension System provides long range extension of DVI to distances up to 980 ft. (300 m.) over a single strand, LC-terminated fiber optic cable. Real-time EDID programming provides fast integration and compatibility between input and output devices. Featuring a robust, compact design with detachable transmitter and receiver modules, the OLC III Tx/Rx simplifies integration and provides a convenient solution for a variety of installation challenges.
Key Features
- DVI extension over a single strand, OM3 multi-mode fiber optic cable
- Reliable, long-range extension of Full-HD/1080p content
- Supports distances up to 980 ft. (300 m.)
- HDCP compliant
- Compact, detachable modules for easy integration
- Ensures secure and fast communication between devices
Technical Specifications
Performance
Supported Distance
up to 980 ft. (300 m.)
Supported Resolutions
up to WUXGA (1920x1200) / 60Hz
Compliance
HDCP compliant
Video Bandwidth
2.25 Gbps
Power Supply
100-240VAC 50/60Hz
Operating Temperature
32 Degrees ~ 117 Degrees F (0 Degrees to 47 Degrees C)
Storage Temperature
- 40 Degrees ~ 158 Degrees F (-40 Degrees to 70 Degrees C)
Relative Humidity
0 ~ 90% non-condensing
MTBF
50,000 hours
Rack Mounting Option
Standard 19-inch rack-mountable design
Enclosure
Rack Mounting Option
Standard 19-inch rack-mountable design
Product Dimensions
3.06 x 1.58 x 0.63 in. (74.66 x 40.2 x15.9 mm)
Product Weight
0.15 Lbs (68 g)
PRODUCT DIMENSIONS
12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm)
Product Weight
7.7 lbs (3.5 kg)
Warranty
Limited Warranty (3-Years)
