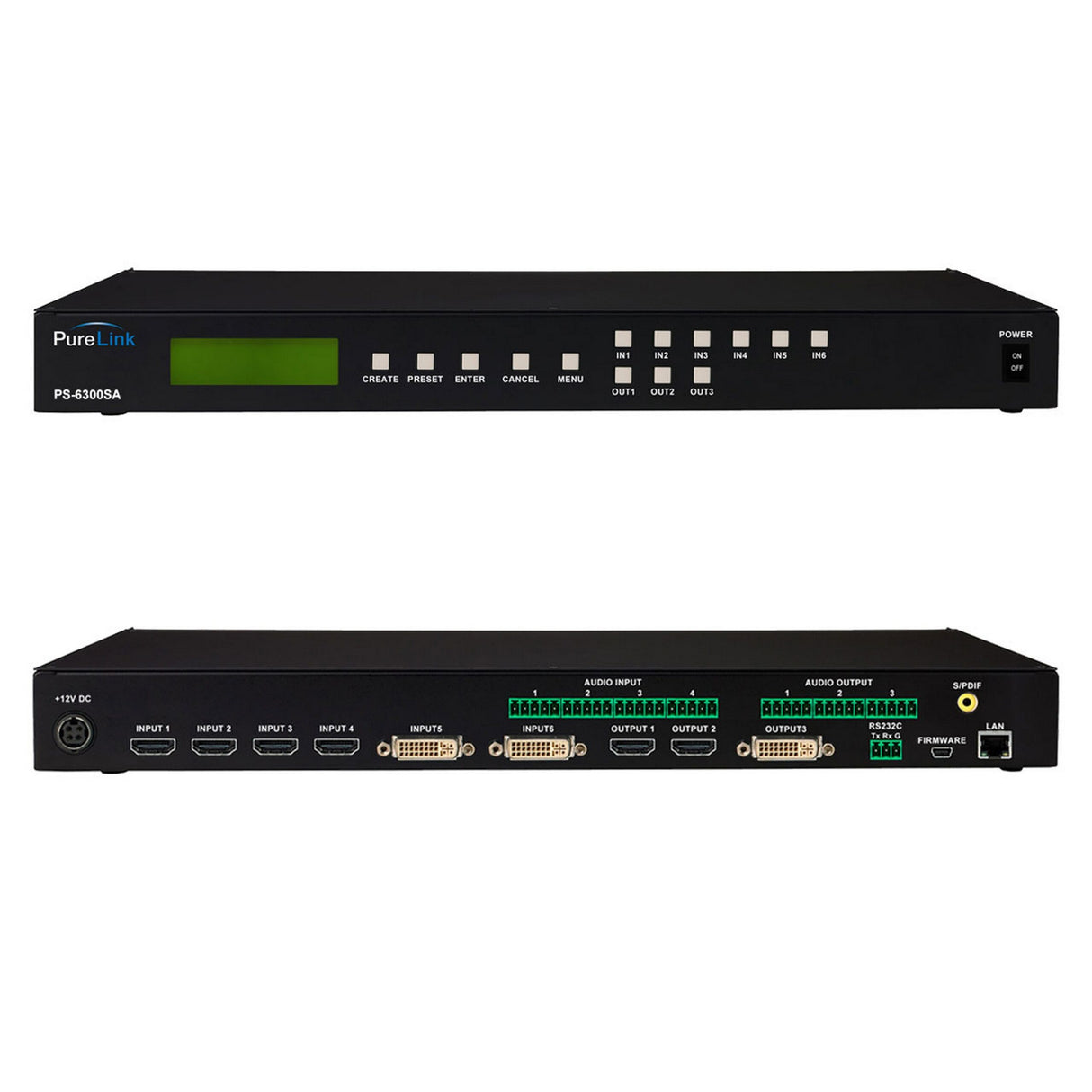

PureLink PS-6300S 6 x 3 Presentation Switcher with Auto-Scaling
Description
Description
PureLink PS-6300S 6 x 3 Presentation Switcher with Auto-Scaling
The HDTools PS-6300S is an all-in-one, high-performance presentation switcher featuring a built-in scaling engine for up/downscaling of any video signal, as well as PIP (picture-in-picture) technology, allowing any two video sources to be shown on one display. Together with PureLink’s Don’t Blink Seamless Switching Technology at every output, as well as user-friendly configuration and operation, the PS-6300S provides full flexibility and convenience in any multimedia presentation environment.
Key Features
- All-in-one device - matrix switcher, scaler, analog to digital converter, amplifier, and audio DSP
- Auto-scaling with Don’t Blink Seamless Switching Technology
- PIP Image Insertion Technology
- Advanced EDID management
- RS-232/LAN control
Technical Specifications
Hardware
Audio
Balanced/Un-balanced analog audio; S/PDIF digital audio
Input Signal Type(s)
HDMI, DVI
Output Signal Type(s)
HDMI, DVI
Performance
Supported Resolutions
up to 1080p@60Hz
Compliance
HDMI 1.3, DVI 1.0
RS-232
Yes
IR Extension
Yes
Power Consumption
60 Watts
Power Supply
DC 12V 5A
Operating Temperature
32 Degrees ~ 117 Degrees F (0 Degrees to 47 Degrees C)
Storage Temperature
- 40 Degrees ~ 158 Degrees F (-40 Degrees to 70 Degrees C)
Relative Humidity
0 ~ 90% non-condensing
MTBF
50,000 hours
Rack Mounting Option
Standard 19-inch rack-mountable design
Enclosure
Enclosure Type
All metal, black powder coat finish
Rack Mounting Option
Standard 19-inch rack-mountable design
Product Dimensions
19” (W) x 8.0” (D) x 1.75” (H)
Product Weight
6.7 lbs.
Warranty
Limited Warranty (3-Years)
