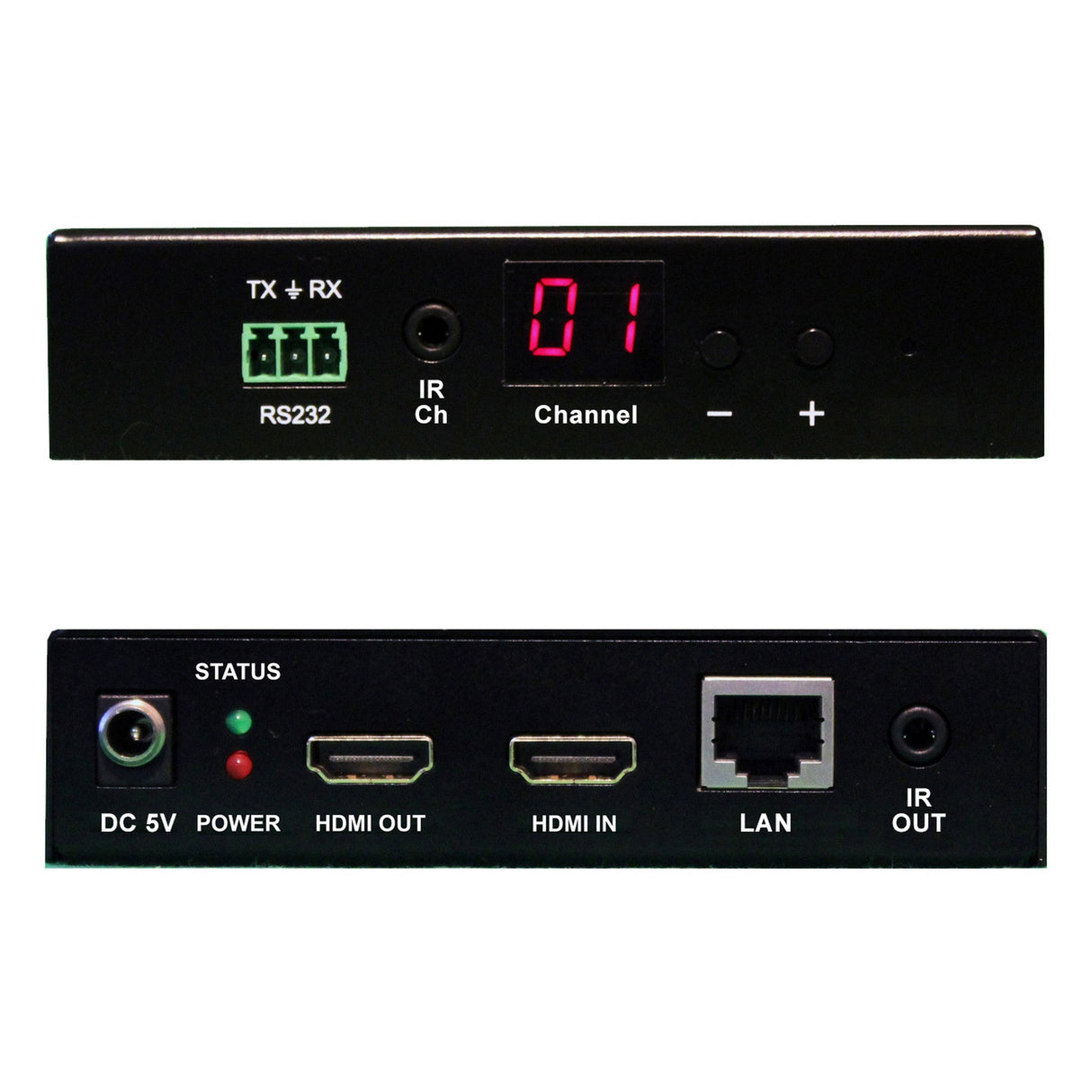

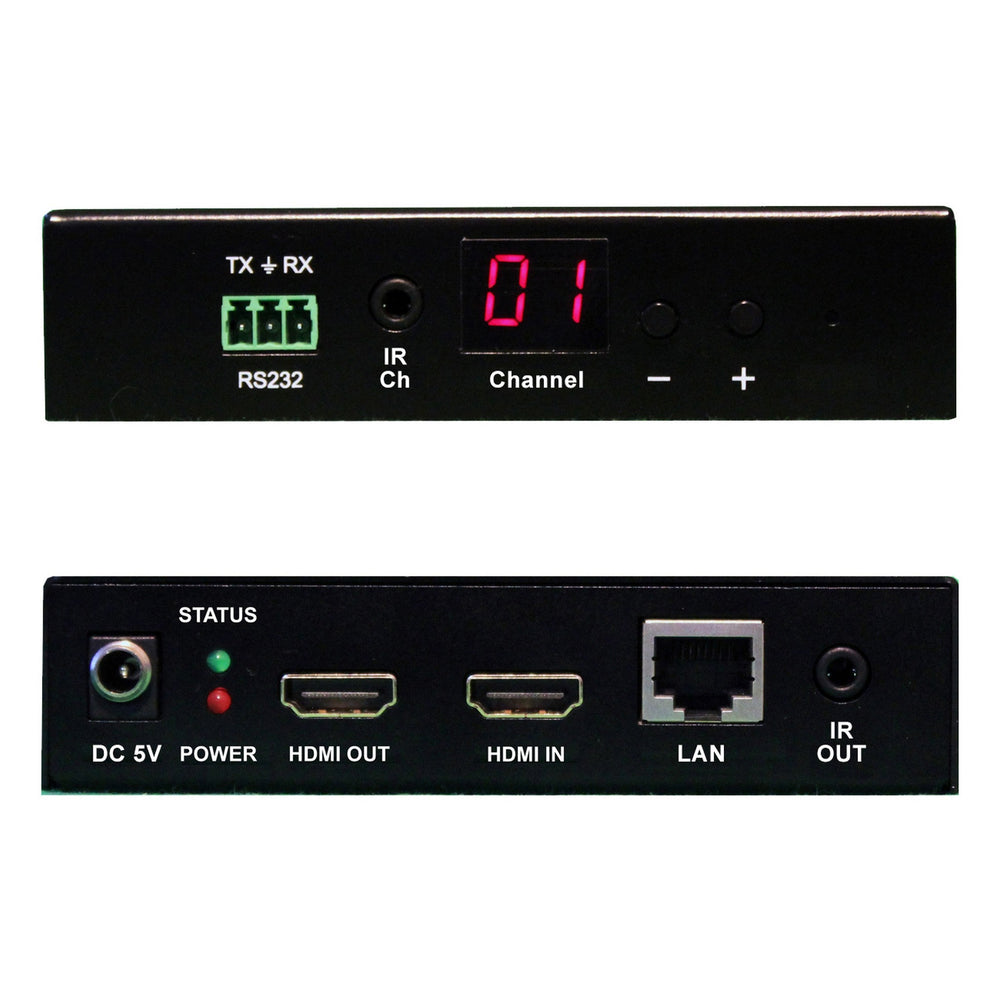

PureLink VIP-100-II-E HDMI over IP Transmitter Encoder with PoE

PureLink VIP-100-II-E HDMI over IP Transmitter Encoder with PoE

The VIP-100 II HDMI over IP distribution system provides video, audio, RS-232, and IR extension, distribution and matrix switching capabilities. Transmitter (encoder) and receiver (decoder) modules can be connected together for point-to-point extension over distances up to 394 ft. (120 m), as well as a point-to-many, many to point, and matrix connections providing up to a 64x190 matrix switching system, or even a 64 x 65K system based on Class B networks.

Key Features

• Support resolutions up to Full HD/1080p
• LED channel display
• Front panel channel plus/minus buttons
• IR remote control for familiar channel selection
• PoE (Power over Ethernet) - power encoders/decoders from 802.3af PoE network switches
• RS232 & IR extension/distribution
• HDMI Loop out on Transmitter
• HDCP compliant
• up to 64 x 190 matrix (hardware) on Class C networks
• up to 64x 65K on Class B networks

Technical Specifications

Performance
Supported Distance
120 m / 390 ft.
Supported Resolutions
Up to1080p / 1920x1080
Power Supply
100-240VAC 50/60Hz
Operating Temperature
32 Degrees ~ 117 Degrees F (0 Degrees to 47 Degrees C)
Storage Temperature
- 40 Degrees ~ 158 Degrees F (-40 Degrees to 70 Degrees C)
Relative Humidity
0 ~ 90% non-condensing
MTBF
50,000 hours
Warranty
Limited Warranty (3-Years)
