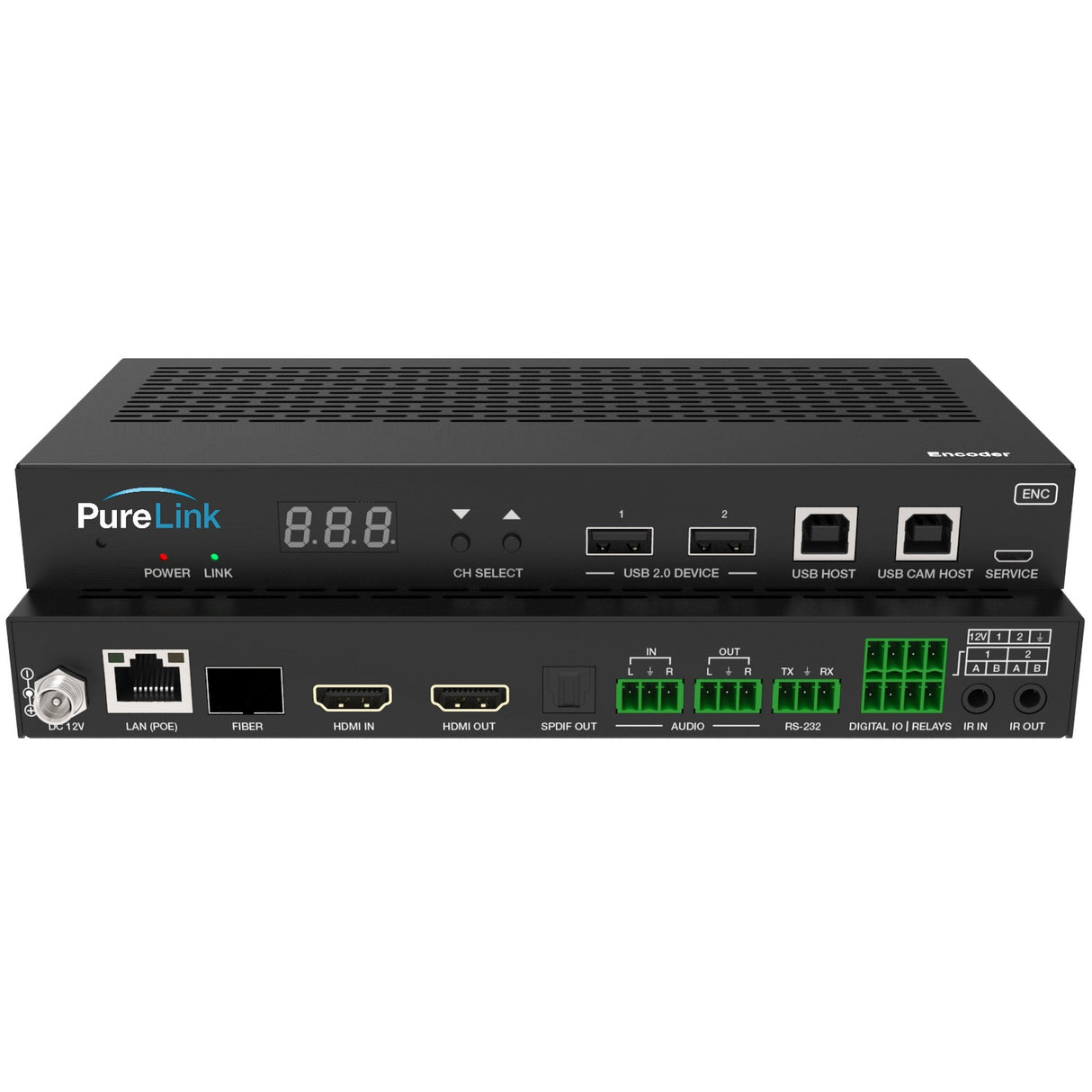

PureLink VIP-400-E 4K60 HDMI and USB/KM CAT and Fiber AV over IP Encoder

PureLink VIP-400-E 4K60 HDMI and USB/KM CAT and Fiber AV over IP Encoder

The VIP-400 4K HDMI & USB/KM CAT and Fiber AV over IP Encoder provides UltraHD/4K60 4:4:4 HDR video, audio, RS-232, IR, and USB 1.1, 2.0, and USB camera signal transport over IP networks. The VIP-400 can be used as a point-to-point extension system supporting distances up to 120 meters over CAT6a, and up to 2 kilometers over SFP Single Mode Fiber. The VIP-400 is designed to handle multiple signals types for applications that require reliable distribution, switching, matrixing, and layered matrix switching. Multiple control options are available including the VIP-400’s own rich API, PureLink’s VPX IP Video Management Software, Crestron module, and QSC plugin. Providing complete and reliable AV over IP extension, the VIP-400 is the ideal solution for your application.

Key Features

• 4K60 4:4:4 HDR
• Ultra-low latency (<17mS)
• Data rate 300 Mbps typical; 50-850 Mbps range, variable
• Fiber or CAT transport – 1G port
• Extend signals up to 120 meters over CAT6, 300 meters using a network switch, and up to 2km with SFP fiber single mode
• HDCP 2.2 compliant
• USB 1.1 and 2.0 including USB camera support
• Comprehensive diagnostics via API – device discovery, signal data, and EDID
• Supports instant switching (same resolutions)
• Multiple control interfaces – built-in web interface, front panel buttons, VPX Management Software, Crestron module, QSC modules, and 3rd party control development via API
• Built-in video wall processing (up to 8×8)
• Built-in scaler on the receiver (decoder)
• Image rotation; 90, 180 degrees
• IR and RS232 extension
• TCP/IP to RS232
• HDMI loop-out on TX (encoder)
• Powered by included AC power adapter, or via PoE 802.3af (8.5W)
• Supports Dolby, DTS, and LPCM audio and more
• Matrix switching systems up to 999 sources and 65K displays

Technical Specifications

Hardware
Output Signal Type(s)
Configurable via PureMedia universal output cards supporting HDMI, HDBaseT, Fiber, and 3G-SDI
Performance
Supported Distance
120M CAT6a, up to 2Km using SFP Single Mode
Supported Resolutions
Up to 4K UHD 4:4:4 @ 60HZ
Compliance
HDCP 2.2
Video input format
HDMI 2.0
Video output format
HDMI 2.0
Supported Audio Formats
5.1 Ch, 7.1 Ch LPCM, 5.1 Ch Dolby, Dolby Pro Logic, DTS, 7.1 Ch Dolby TrueHD, DTS-HD, Dolby Atmos DTS:X
Ir Receiver (Internal)
IR In - 3.5mm, IR out 3.5mm
Power Consumption
8.5 Watts
Power Supply
DC 12V 1500mA
RS-232
Extension, and access via TCP/IP
IR Extension
Bidrectional
PoE (Power Over Ethernet)
802.3af
HDR Support
Yes
Data Rate
50-850 Mbps, 300 Mbps typical
Connections
Input Type(s)
HDMI (1)
Output Type(s)
HDMI Loop Out (1)
Audio Input Type(s)
Analog Stereo - 3 pin mini phoenix
Audio Output Type(s)
Analog Stereo - 3 pin mini phoenix, SPDIF (ARC)
Control Ports
RS232 - 3 pin mini phoenix, Relay (2) 2 pi mini phoenix, Digital OIO (2) - mini phoenix
Ir Receiver (Internal)
IR In - 3.5mm, IR out 3.5mm
Software
VPX Software Suite
Compatible
OS Compatibility
Crestron and QSC Modules available
Enclosure
Product Dimensions
8
Product weight
1.5 lbs.
Warranty
Limited Warranty (3-Years)
