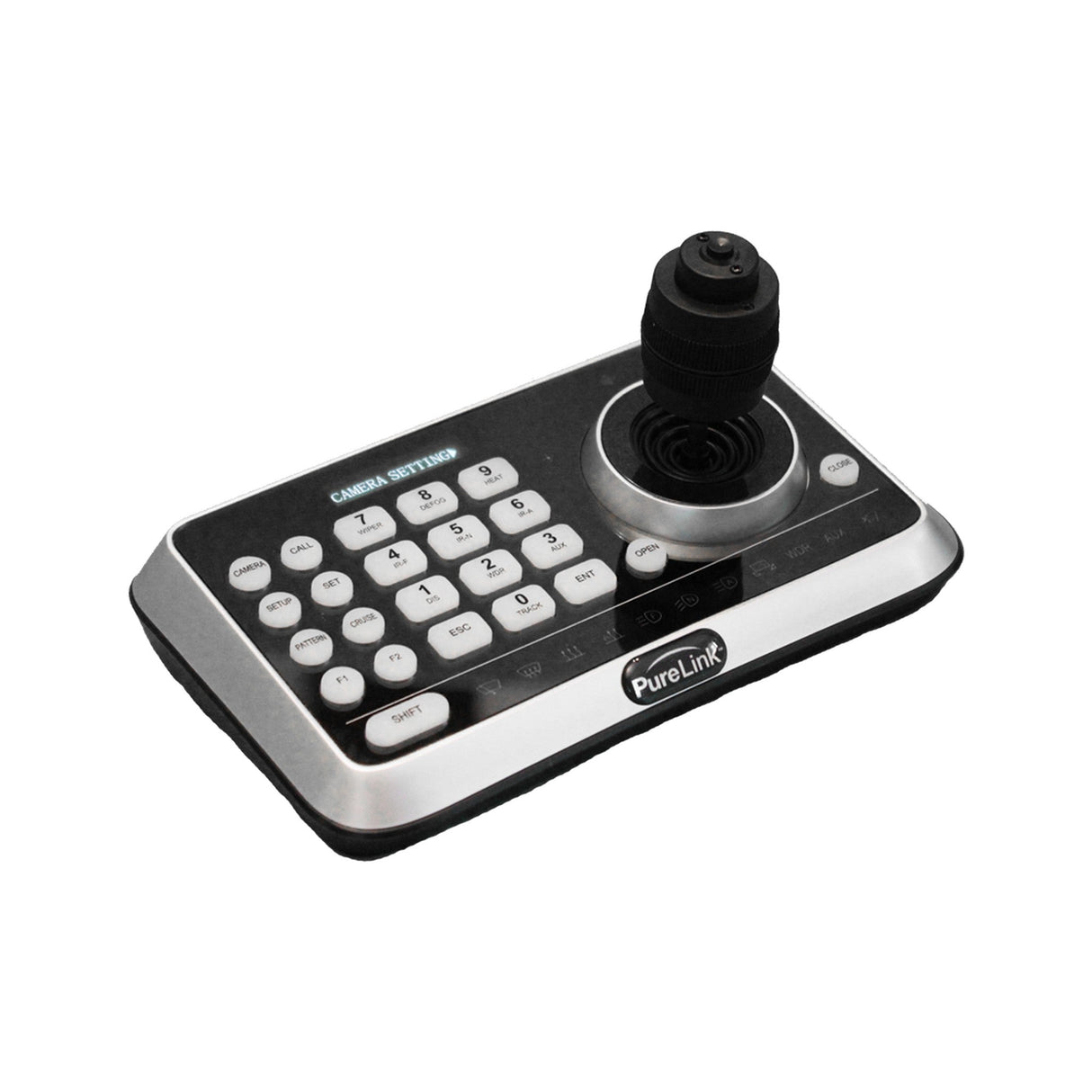

PureLink VIP-CAM-CTRL1 VISCA/PELCO Camera Controller for VIP-CAM Series

PureLink VIP-CAM-CTRL1 VISCA/PELCO Camera Controller for VIP-CAM Series

The VIP-CAM-CTRL1 provides full control of up to 255 PureStream VIP-CAM series cameras. Quickly access pan, tilt, zoom, and focus adjustments with the smooth 4D joystick, as well as direct iris control. Recall presets using the numeric keypad. Access any setup function with the dedicated function keys.

Key Features

• 4D joystick for pan/tilt/zoom/focus control
• Compact, ergonomic design
• High brightness OLED display
• Auto backlight keys
• Shortcut keys customization
• Compatible with any PTZ cameras that use PELCO or VISCA control
• Supports up to 255 cameras using PELCO; 7 cameras using VISCA
• Support Pelco D/P, VISCA protocols
• Multi-level passwords
• 256 addresses

Technical Specifications

Camera
WEIGHT
1.1 lbs.
DISPLAY
OLED
General
COMM. INTERFACE
RS-485, RS-232
CONTROL PROTOCOL
Pelco-D, Pelco-P, VISCA
ADDRESS
0-255 PELCO, 1-7 VISCA
DISPLAY
OLED
JOYSTICK
4-axis
BAUD RATE
2400bps, 4800bps, 9600bps, 19200bps, 38400bps
POWER SUPPLY
DC12V
POWER CONSUMPTION
<2W
OPERATING TEMPERATURE
0 Degrees C ~ 40 Degrees C
STORAGE TEMPERATURE
-20 Degrees C ~ 50 Degrees C
HUMIDITY
Up to 90% non-condensing
DIMENSIONS
7.8” (L) x 4.7” (W) x 4.0” (H)
WEIGHT
1.1 lbs.
Warranty
Limited Warranty (3-Years)
