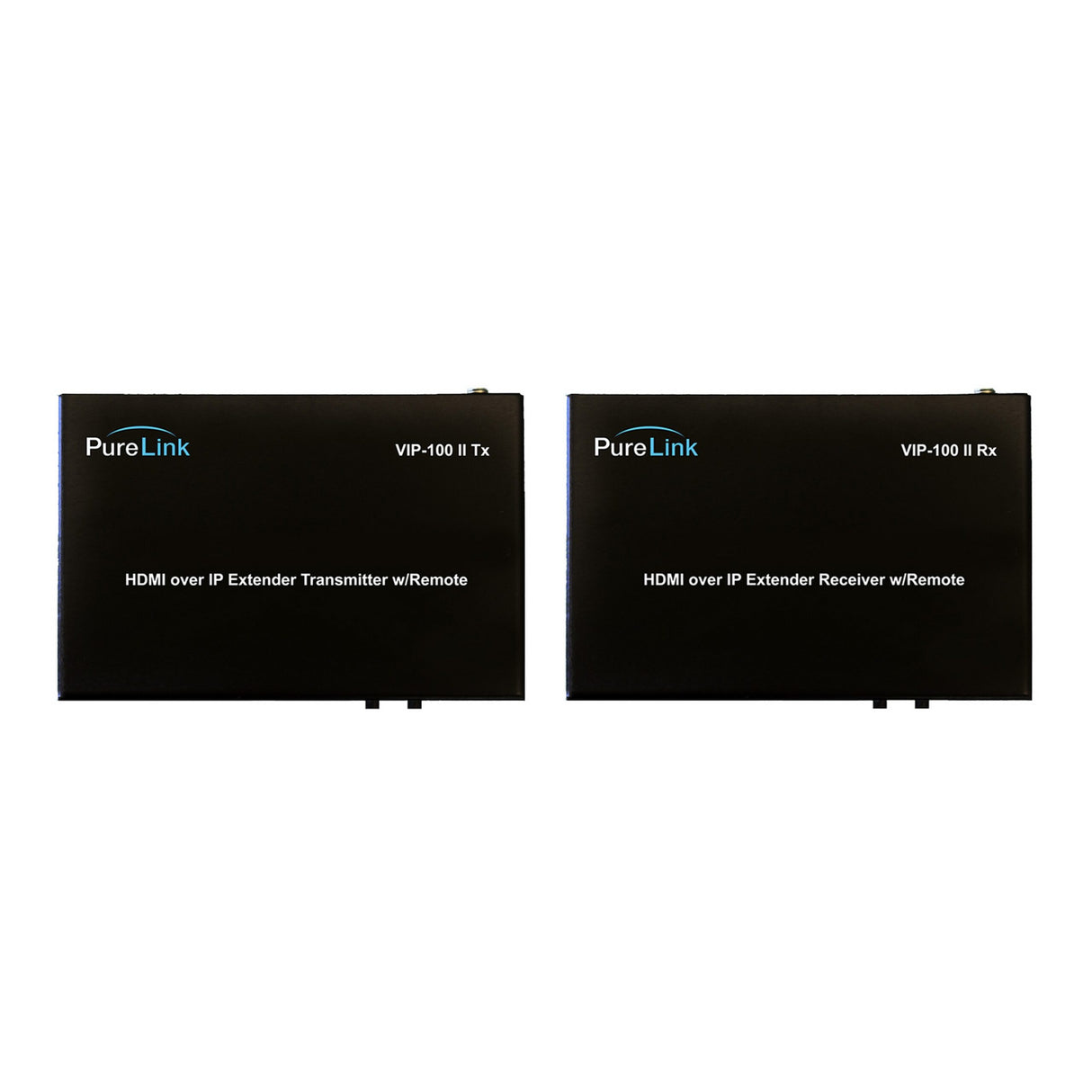

PureLink VIP-EXT-100-2 Full HD 1080P HDMI over IP Extension System

PureLink VIP-EXT-100-2 Full HD 1080P HDMI over IP Extension System

The VIP-EXT100-2 1080P HDMI & USB/KM over IP Extension System provides Full HD video, audio, RS-232, and IR signal extension, point to point, with or without a network. The Transmitter can be connected to a Receiver supporting distances up to 120 meters, or through a network switch, effectively doubling the extension distance up to 240 meters. Video over IP extension, when utilized on a network, allows you to convert your extension system at any time to distribution, switching, or matrix routing, a major advantage of Video over IP opposed to other technologies.

Key Features

• Transmitter and Receiver enclosures - powered locally or by PoE 802.3af
• Full HD - 1080P60 extension
• Extend up to 120 meters TX direct to RX, or 240 meters TX to network switch to RX
• Extend video, and stereo audio
• Extend RS232, and Infrared
• Convert extension system to a distribution, switching, or matrix system with additional Tx/Rx units
• H.264 codec: =< 15mbps data rate, 390mS latency

Technical Specifications

Hardware
Audio
HDMI w/embedded audio
Cabling
Cat 5 UTP or better
Input Signal Type(s)
TX: HDMI v1.3, RS232
RX: RJ-45 H.264 UDP Multicast, RS232, IR
Output Signal Type(s)
Configurable via PureMedia universal output cards supporting HDMI, HDBaseT, Fiber, and 3G-SDI
Video output format
TX: HDMI v1.3 , RJ-45 H.264 UDP Multicast, IR
RX: HDMI v1.3
Performance
Supported Distance
Up to 120 m / 390 ft.
Supported Resolutions
Up to 1080p / 1920x1080
Compliance
HDCP 1.3
Supported Audio Formats
Up to 7.1 LPCM 192Khz / Dolby True HD / DTS-HD Master Audio
Power Consumption
5 VDC, 600mA typical
PoE (Power Over Ethernet)
802.3af
Enclosure
Product Dimensions
TX: 1.1” x 4.7” x 3.1 (29 mm x 120 mm x 79 mm)
RX: 1.1” x 4.7” x 3.1 (29 mm x 120 mm x 79 mm)
Product weight
TX: 0.61 lbs
RX: 0.61 lbs
Warranty
Limited Warranty (3-Years)
