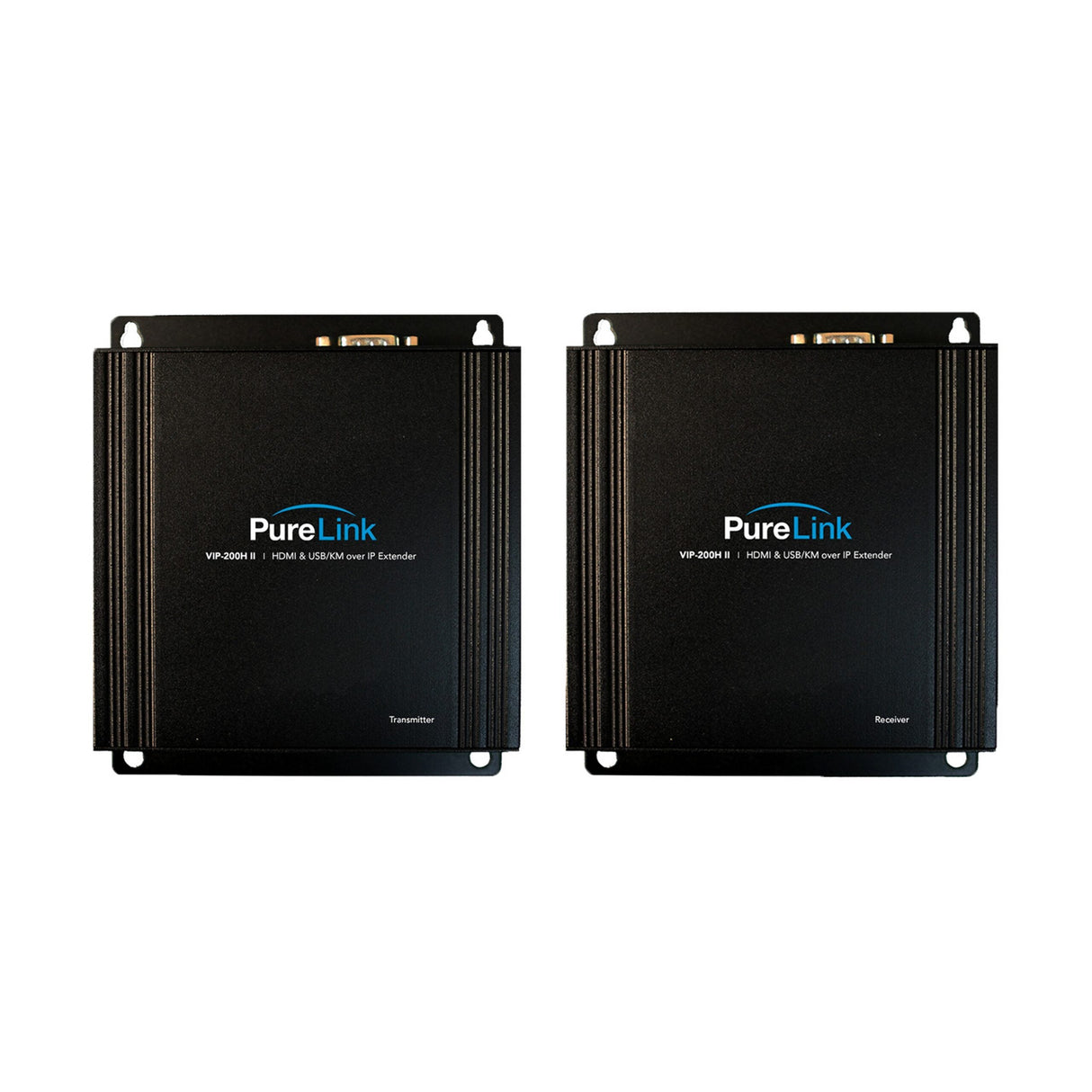

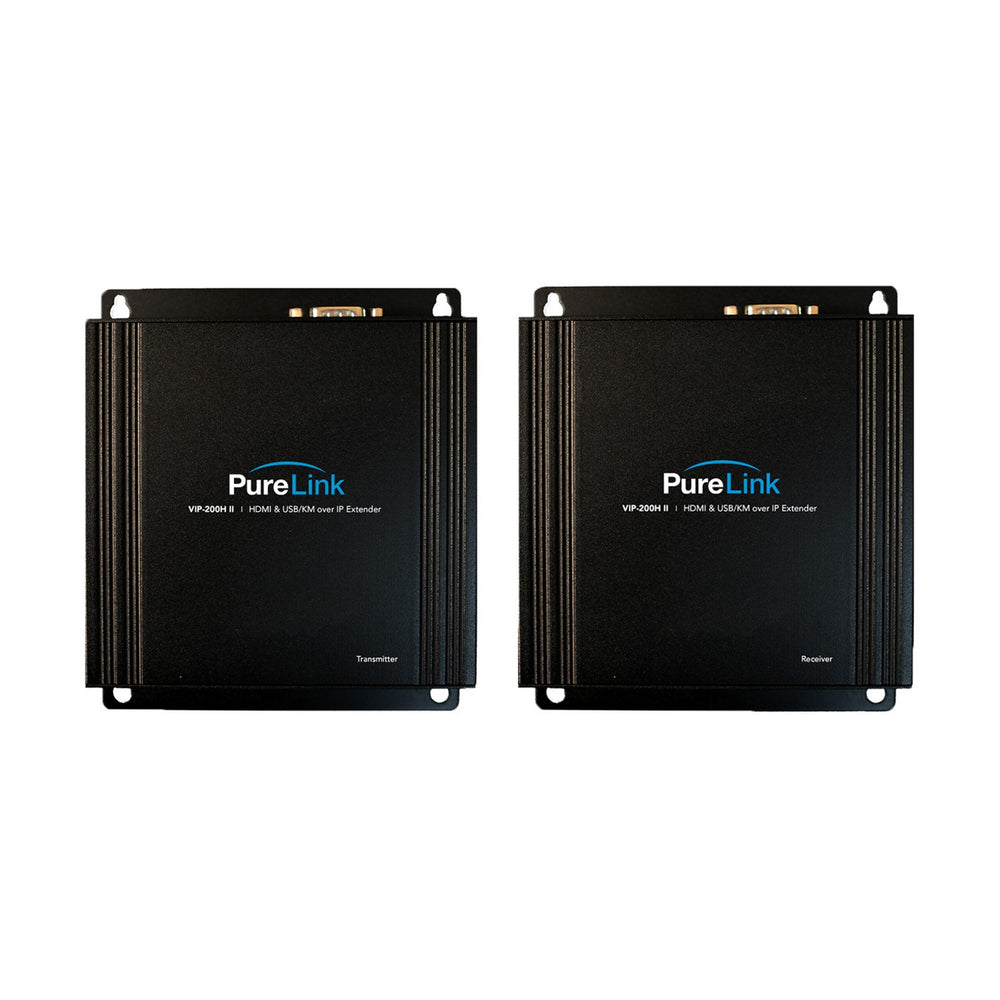

PureLink VIP-EXT-200-1 Full HD 1080P HDMI and USB/KM over IP Extension System

PureLink VIP-EXT-200-1 Full HD 1080P HDMI and USB/KM over IP Extension System

The VIP-200 II 1080P HDMI & USB/KM over IP Extension System provides HD video, audio, RS-232, IR, and USB signal extension, point to point, with or without a network. The Transmitter can be connected to a Receiver supporting distances up to (150 meters), or through a network switch, effectively doubling the extension distance up to 300 meters. Video over IP extension, when utilized on a network, allows you to convert your extension system at any time to distribution, switching, or matrix routing, a major advantage of Video over IP opposed to other technologies.

Key Features

• HD - 1080P60 extension
• Extend up to 150 meters TX direct to RX, or 300 meters TX to network switch to RX
• Extend video, and stereo or multi-channel audio
• Extend keyboard, mouse, touchscreen, and more via USB 2.0
• Extend RS232, and Infrared
• Utilize built-in API diagnostics of TX, RX, source, and display when extending through network
• Settable scaler in RX with image rotation options
• Can be converted with additional Tx/Rx units for distribution, switching, and matrix systems

Technical Specifications

Hardware
Output Signal Type(s)
Configurable via PureMedia universal output cards supporting HDMI, HDBaseT, Fiber, and 3G-SDI
Performance
Supported Distance
up to (150m) via CAT - TX direct to RX
up to (300m) via CAT - TX to network switch to RX
up to 37 miles (60km) via Fiber- TX direct to RX
up to 74 miles (60km) via Fiber- TX to network switch to RX
Supported Resolutions
Up to 1080p, 1920x1200@60Hz
Compliance
HDCP 1.3
Supported Audio Formats
Stereo, up to 7.1 LPCM 192Khz / Dolby True HD / DTS-HD Master Audio
Ir Receiver (Internal)
20-60Khz/ ±45 Degrees/5M
Ir Emitter (External)
3.5mm Stereo Phono Jack 20-60Khz/ ±45 Degrees/5M
Power Consumption
1350mA (Typical)
Power Supply
DC 5V 2000mA
Connections
Input Type(s)
TX: (1) HDMI Type A (1) 3.5mm Stereo Phone Jack (line-in) (1) USB 2.0 Type B (1) RS-232 DB9 Female
RX: (1) HDMI Type A (1) 3.5mm Stereo Phone Jack (line-out) (1) Gigabit RJ45
Output Type(s)
TX: (1) HDMI Type A (1) 3.5mm Stereo Phone Jack (line-out) (1) Gigabit RJ45
RX: (1) HDMI Type A (1) 3.5mm Stereo Phone Jack (line-in) (1) USB 2.0 Type B (1) RS-232 DB9 Female
Ir Receiver (Internal)
20-60Khz/ ±45 Degrees/5M
Enclosure
Product Dimensions
TX: 5.51inch x 4.92inch x 1.18inch
RX: 5.51inch x 4.92inch x 1.18inch
Product weight
TX: 0.84 lbs
RX: 0.84 lbs
Warranty
Limited Warranty (3-Years)
