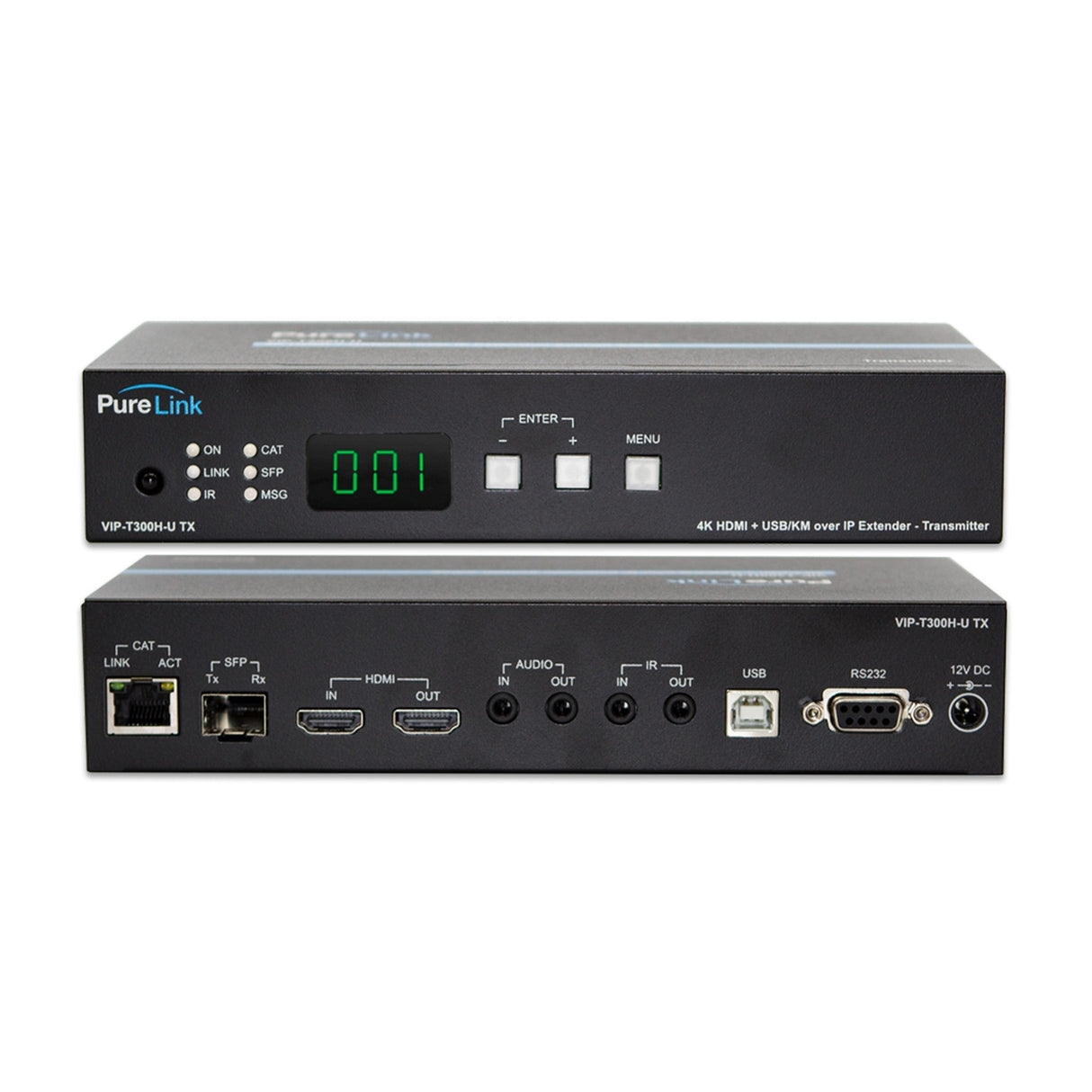

PureLink VIP-T300-E 4K HDMI and USB/KM over IP Encoder
Description
Description
PureLink VIP-T300-E 4K HDMI and USB/KM over IP Encoder
The VIP-T300-E 4K HDMI & USB/KM over IP Encoder provides UltraHD/4K video, audio, RS-232, IR, and USB signal transport over IP networks. The VIP-T300-E can be used as a point-to-point extension system supporting distances up to 300 meters, as well as layered distribution, switching, and matrix switching systems using multiple control options including PureLink’s VPX IP Video Management Software.
Key Features
- Ultra-low latency (<17mS)
- Median data rate 280 - 320 Mbps;
- Fiber or CAT transport - 1G port
- Extend signals up to 300 m. using a network switch
- HDCP 2.2 compliant
- Comprehensive diagnostics via API - device discovery, signal data, and EDID
- Supports instant switching
- Multiple control interfaces - built-in web interface, front panel buttons, IR remote control, VPX Management Software, Crestron module, and 3rd party control development via API
- Built-in video wall processing (up to 8x8)
- Built-in scaler on the receiver (decoder)
- Image rotation 0, 90, 180 degrees
- IR and RS232 extension
- TCP/IP to RS232 conversion
- USB 2.0 for keyboard/mouse, camera, or hard drive
- HDMI loop-out on TX (encoder)
- PoE 802.3af (under 5W)
- Supports Dolby, DTS, and LPCM audio
- Matrix switching systems up to 999 sources and 65K displays
- TAA compliant
- Rack-mount option available
Technical Specifications
Hardware
Input Signal Type(s)
(1) HDMI Type-A
(1) 3.5mm Stereo Phone Jack
(1) USB 2.0 Type B RS-232 (DB9 Female)
Ethernet (RJ45)
Fiber SFP (1G)
Output Signal Type(s)
(1) HDMI Type-A (loop-out)
3.5mm Stereo Phone Jack
Performance
Supported Distance
150M (up to 300M using Network Switch)
Supported Resolutions
Up to 4K UHD 4:4:4 @ 30HZ
Compliance
HDCP 2.2
Supported Audio Formats
Up to 7.1 LPCM 192Khz
Dolby True HD
DTS-HD Master Audio
ATMOS
DTS:X
Power Consumption
600mA (Typical)
Power Supply
DC 12V 1500mA
PoE (Power Over Ethernet)
802.3af
Enclosure
Product Dimensions
8.2” x 4.8” x 1.5”
Shipping Weight
1.5 lbs.
Warranty
Limited Warranty (3-Years)
