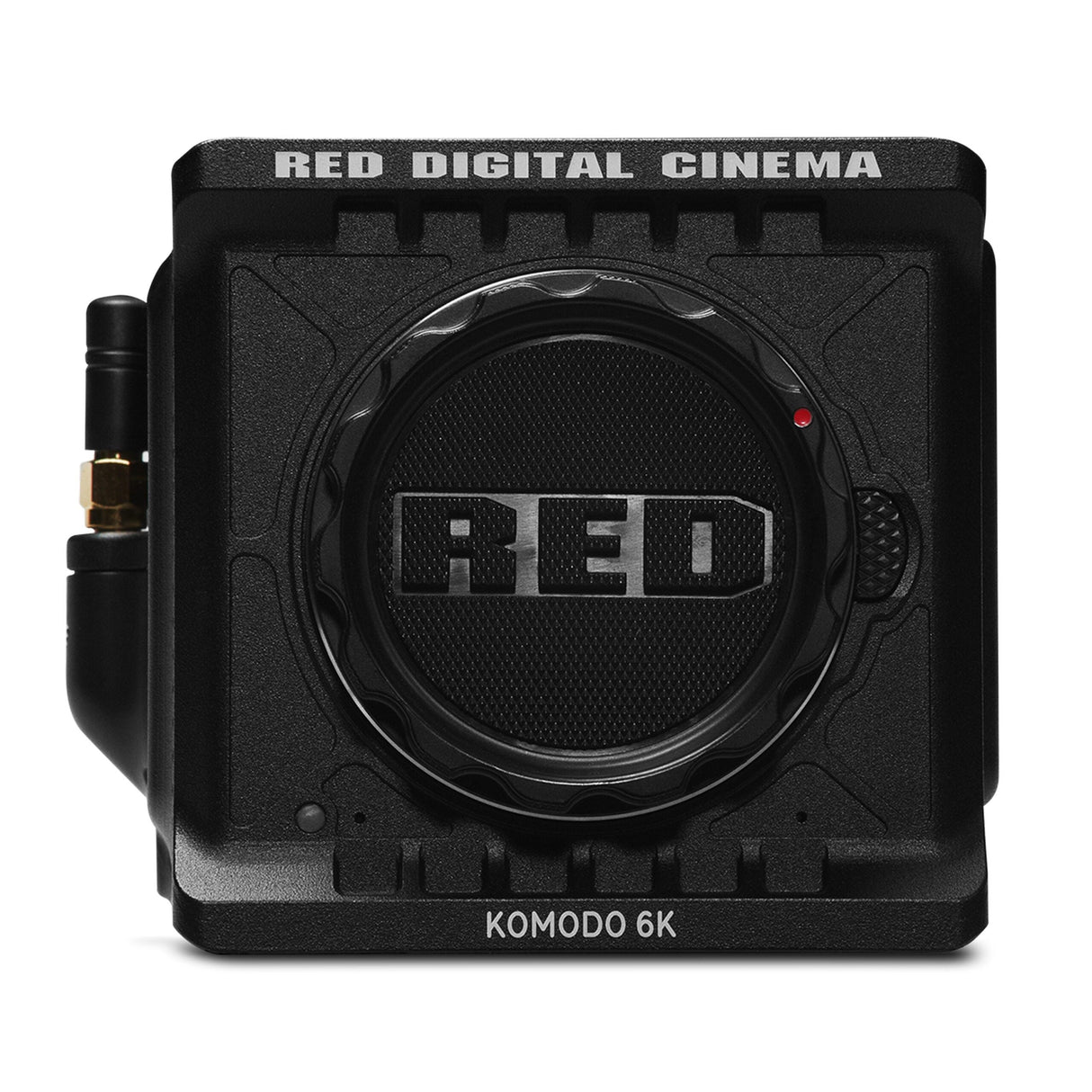

RED 710-0333 KOMODO 6K Camera, Canon RF

RED 710-0333 KOMODO 6K Camera, Canon RF

KOMODO 6K is the latest breakthrough product in RED's long line of innovative image capture technology. The newest entrant into the RED lineup is a compact and highly powerful cinema camera. It features RED’s cinema grade image quality, color science and sensor technology into a portable form factor so users can take it anywhere and adapt it to any shooting scenario.? The new sensor in KOMODO is a 6K S35 global shutter sensor that breaks new technical ground by eliminating the need to sacrifice dynamic range and meets the RED standard of unmatched imagery without any creative or technical compromises. KOMODO also features a built-in Canon RF mount allowing users the flexibility to use numerous different lens adapters, such as Canon EF, PL and Leica M mount. KOMODO also has a DC IN power port and can also be powered using two Canon BP style batteries.

Technical Specifications

SENSOR TYPE
KOMODO 19.9 MP Super 35mm Global Shutter CMOS
EFFECTIVE PIXELS
6144 x 3240
SENSOR SIZE
27.03 mm x 14.26 mm (Diagonal: 30.56mm)
DYNAMIC RANGE
16+ Stops
MOUNT TYPE
RF mount
MAX DATA RATES
Up to 280 MB/s using RED Pro CFast or other qualified CFast 2.0 media cards <1>
REDCODE RAW MAX FRAME RATES
40 fps at 6K 17:9 (6144 x 3240)
50 fps at 6K 2.4:1 (6144 x 2592)
48 fps at 5K 17:9 (5120 x 2700)
60 fps at 4K 17:9 (4096 x 2160)
120 fps at 2K 17:9 (2048 x 1080)
PLAYBACK FRAME RATES (PROJECT TIME BASE)
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
BEST AVAILABLE REDCODE SETTINGS
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 40 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 60 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 120 fps
REDCODE RAW
ACQUISITION FORMATS2
6K 17:9 (6144 x 3240), 2.4:1 and 16:9
5K 17:9 (5120 x 2700)
4K 17:9 (4096 x 2160)
2K 17:9 (2048 x 1080)
APPLE PRORES
4K (4096 2160) at ProRes 422 HQ and ProRes 422 up to 60 fps
2K (2048 1080) at ProRes 422 HQ and ProRes 422 up to 120 fps
CONSTRUCTION
Aluminum Alloy
WEIGHT
2.10 lbs (without body cap and Cfast card)
BATTERY TYPE
Two slots for BP-9XX series batteries
DC POWER INPUT
+7 to +17 V DC via the integrated 2-pin DC-IN port
Operating Temperature
0C to 40C (32F to 104F)
STORAGE TEMPERATURE
-20C to 50C (-4F to 122F)
STORAGE RELATIVE HUMIDITY
0% to 85% non-condensing
COLOR MANAGEMENT
Image Processing Pipeline 2 (IPP2)
Supports 33-33-33 3D LUTs
Supports import of CDLs
AUDIO
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Additional dual channel via integrated 3.5mm audio jack, uncompressed, 24-bit 48 kHz
