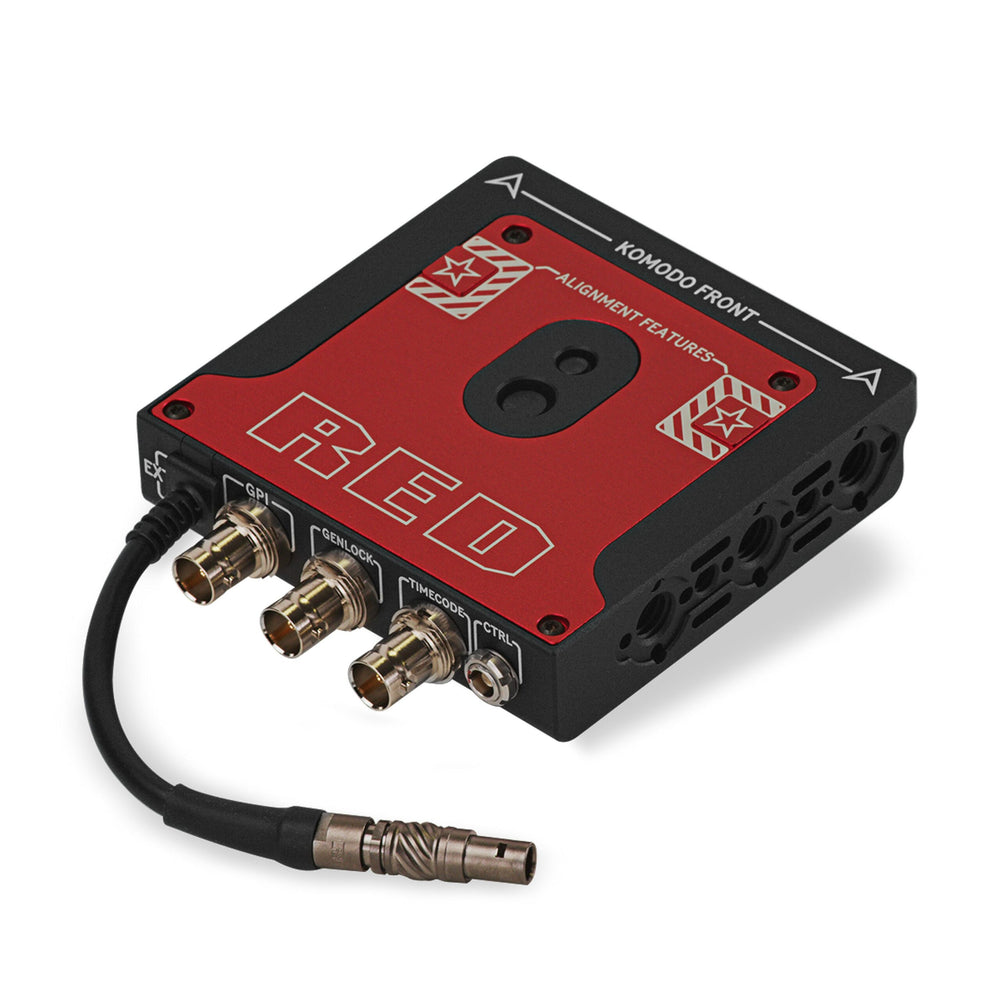

RED 720-0058 KOMODO Expander Module
RED 720-0058 KOMODO Expander Module is backordered. Please call for ETA 877-779-8964
Condition: New
RED 720-0058 KOMODO Expander Module
Description
Description
RED 720-0058 KOMODO Expander Module
The KOMODO Expander Module is designed to support professional shooting configurations. With options for video, power, and communication connections, including Genlock (BNC), GPI (BNC), Timecode in (BNC) and CTRL (4-pin). The KOMODO Expander Module creates the flexibility to support a vast array of options when it comes to how users will rig their KOMODO. Constructed from lightweight and durable aluminum alloy, the module provides a reliable option for multiple rigging solutions with multiple -20 and 3/8-16 mounting points and ARRI-style locating holes along with an integrated quick-release plate.?
Technical Specifications
DIMENSIONS
Height: 1.25 in (32 mm)?
Width: 3.75 in (95 mm)?
Depth: 4.25 in (108 mm)?
WEIGHT?
Approximately 0.9 lbs (408 g)
MATERIALS?
Aluminum?
MOUNTING TO KOMODO
1x -20 and 1x 3/8-16 captive mounting screw?
CONNECTION TO KOMODO
9-pin EXTENSION port
CONNECTORS
GPI (BNC)?
Genlock (BNC)?
Timecode In (BNC)?
CTRL (Tally OUT /RS-232 Rx and Tx) (4-Pin 00)?
ARM MOUNTING
6x -20 and 8x 3/8-16 mounting holes with?
INTEGRATED QUICK RELEASE PLATE
Compatible with the GDU 80mm Touch N Go?
OPERATING TEMPERATURE
0C to 40C (32F to 104F)
STORAGE TEMPERATURE
-20C to 50C (-4F to 122F)
OPERATING HUMIDITY
0% to 85%, non-condensing?
STORAGE HUMIDITY
0% to 85%, non-condensing?
