RED  |  SKU: REDD-COMPACTEVF-7300030

RED Digital Cinema Compact EVF for KOMODO X, V-RAPTOR and V-RAPTOR XL Cameras

$3,45000
🚚 Order within the next 2 hours, 15 minutes for delivery by 18 May, 2024.

Condition: New

Description

If you're searching for a flexible EVF monitoring option for your DSMC3 camera system, the RED Digital Cinema Compact EVF for KOMODO X, V-RAPTOR and V-RAPTOR XL Cameras is here to help. Compatible with KOMODO-X™ (Firmware support coming Q1 2024), V-RAPTOR®, and V-RAPTOR XL cameras, this pack includes all the necessary components for an optimal user experience.

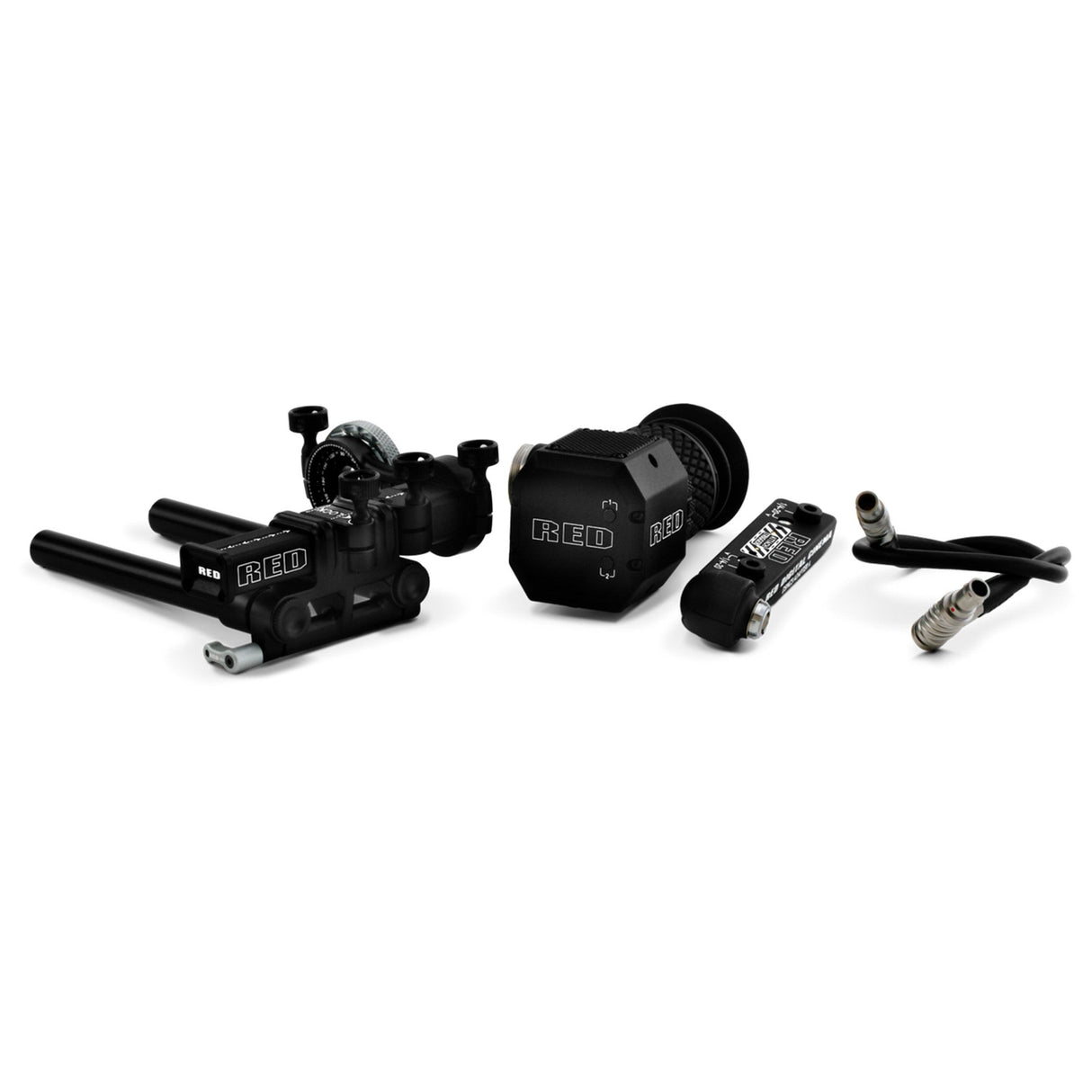

The pack contains the RED Compact EVF, a DSMC3™ Adapter A, a RED EVF Mount, and an 18” Right-to-Straight EVF cable. The EVF mount enables you to quickly adjust the RED Compact EVF to suit your operating preferences. With the DSMC3 Adapter A, you have a single 16-pin output that provides power, video, and data to the EVF.

The RED Compact EVF delivers clear and sharp visuals, allowing you to adjust key camera parameters such as FPS, ISO, and White Balance or toggle user-assignable camera features with the integrated rear buttons.

Please note that a 15mm mounting bracket is not included. Check out RED 15mm Top Handle Bracket and V-RAPTOR XL Top 15 mm LWS Rod Support Bracket for DSMC3 mounting options. Also, to avoid damaging the camera, only attach or remove the DSMC3 Adapter A when the device is powered off.

Technical Specifications

Included
1x RED Compact EVF
1x 1/4-20 Mount Plate
1x RED EVF Mount
2x 15 mm Rods (2.3 in. / 60 mm)
1x DSMC3 Adapter A
1x EVF Cable Right-to-Straight 18"
Dimensions
Height: 2.43 in. (61.7 mm)
Width: 2.46 in. (62.5 mm)
Depth: 4.8 in. (121.9 mm)
Weight
0.8 lbs (360 g)
Material
Aluminum
Camera Mounting
Via integrated attachment wheel and RED EVF Mount or 1/4-20 mount points on included Mount Plate.
Resolution
1920 (width) x 1080 (height)
Bit Depth (Color)
8-bit
Contrast Ratio
> 10000:1
Display Rate
60 fps
Optics
Fully coated optics with > 32° field of view, infinity focus and eye cup that accommodates standard 1.6” to 1.8” diameter eye cushions
Diopter Range
– 2.5 to + 2.5 diopter correction range
Buttons
Two buttons for camera control or user defined buttons
Power Consumption
2.5 W (max)
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
–4°F to 122°F (–20°C to 50°C)
Operating Humidity
0% to 85%, non-condensing
Storage Humidity
0% to 85%, non-condensing
