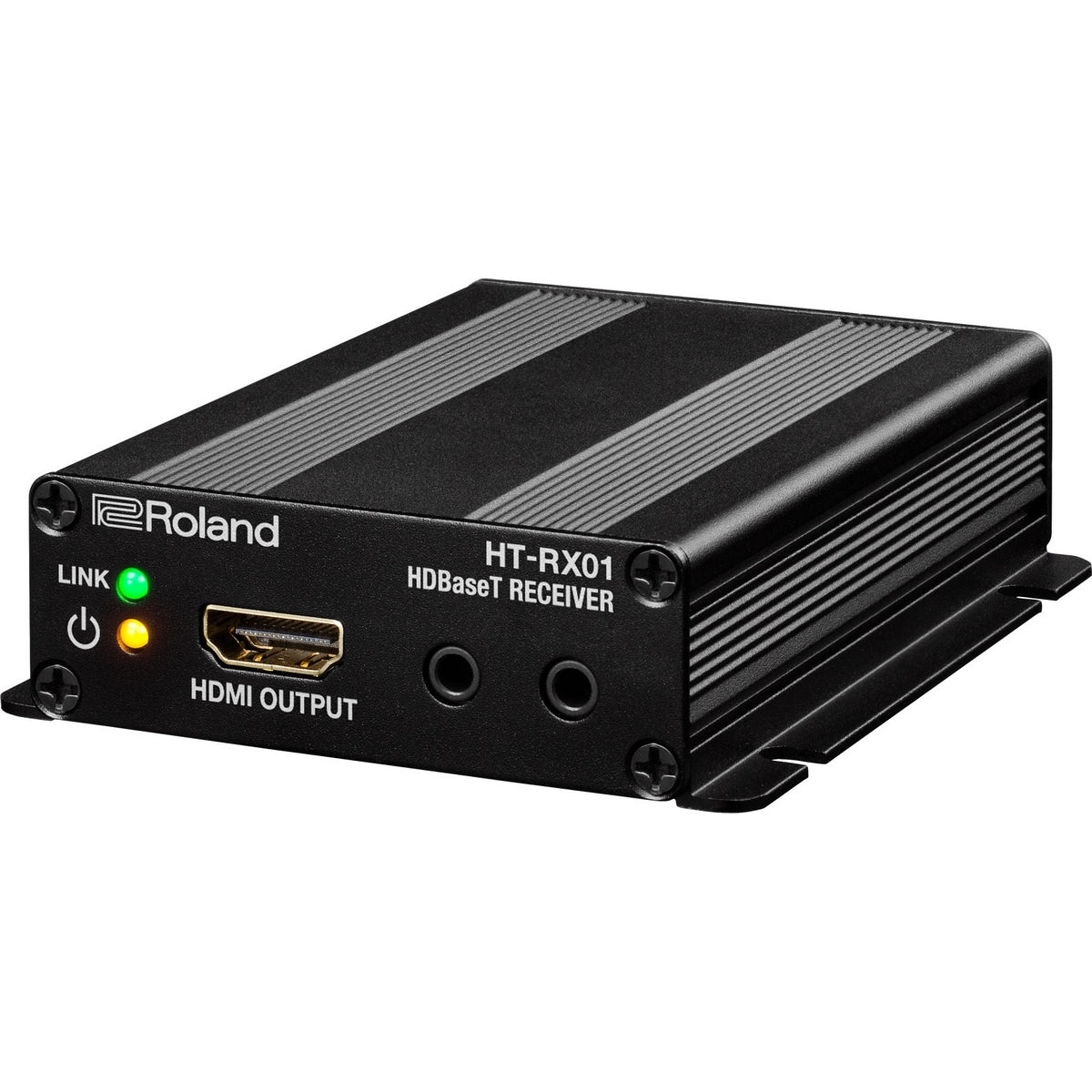

Roland HT-RX01 HDBaseT Receiver
HDBaseT-compatible receiver capable of transmitting HDMI signals up to 100 meters over an Ethernet cable.
Key Features
- Converts HDBaseT signals to HDMI output
- Maximum 1080/60p and WUXGA support for HDMI
- HDCP compliant
- Capable of RS-232C transmission
Technical Specifications
Input Formats
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
*RGB formats : Conforms to VESA DMT Version 1.0 Revision 11.
*The maximum refresh rates of RGB is 75 Hz. (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 60Hz)
*1920 x 1200/60Hz : Reduced blanking
Audio Formats
The maximum is PCM 8ch, Dolby Digital, True HD DTS-HD Master Audio
Input Connectors
HT-TX01: HDMI x 1 : Type A 19 pins
HT-RX01: RJ45 x 1
Output Connectors
HT-TX01: RJ45 x 1
HT-RX01: HDMI x 1 : Type A 19 pins
Power Supply
AC Adaptor
Dimensions
81 (W) x 93 (D) x 24 (H) mm
3-3/16 (W) x 3-11/16 (D) x 1 (H) inches
Weight excl. AC adaptor
300 g
11 oz
Accessories
AC adaptor
AC plugs (3 types)
RS-232 conversion cable (2 m (6 ft 6 inches))
ferrite core x 3
Owner's Manual
